RadioLink t8fb Instruction Manual

RadioLink Electronic Ltd
www.radiolink.com
16

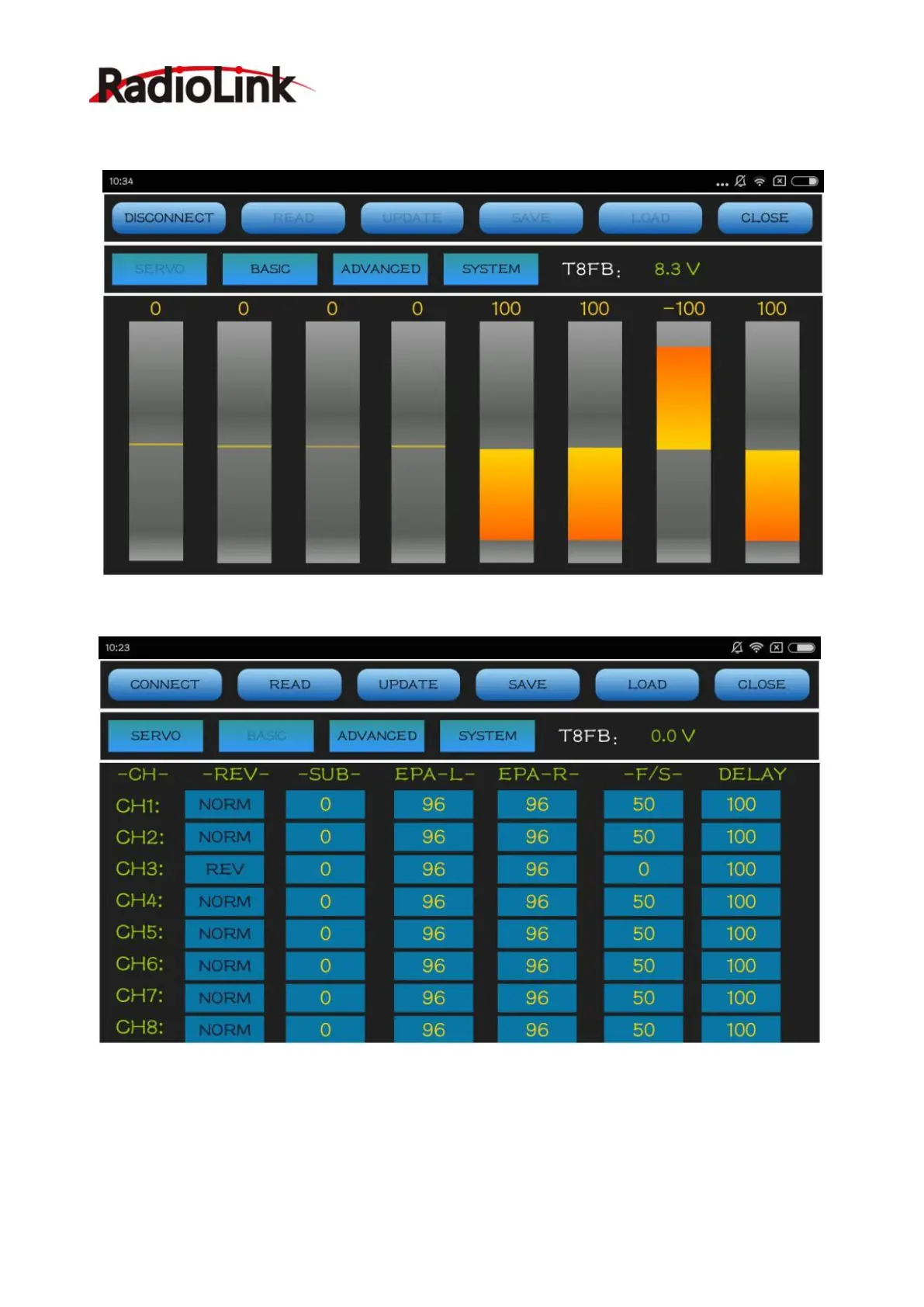

3.4.2 Four Interface Introduction
1)”SERVO”: Display the servos position of CH1—CH8.
2)”BASIC”: Have six buttons”REV” “SUB” “EPA-L”“EPA-R” “F/S” “DELAY”.
“ REV ” : Defines the relationship between the transmitter controls and the receiver output for
channels.
“SUB”: Makes small changes or corrections to the neutral position of each servo. Range is -120
to +120, with 0 setting, the default, being no SUB-TRIM.

RadioLink t8fb Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Spread Spectrum	Yes
Output	PPM
Compatibility	R8EF, R8FM
Battery	4 x AA batteries
Power Supply	4 x AA batteries
