25

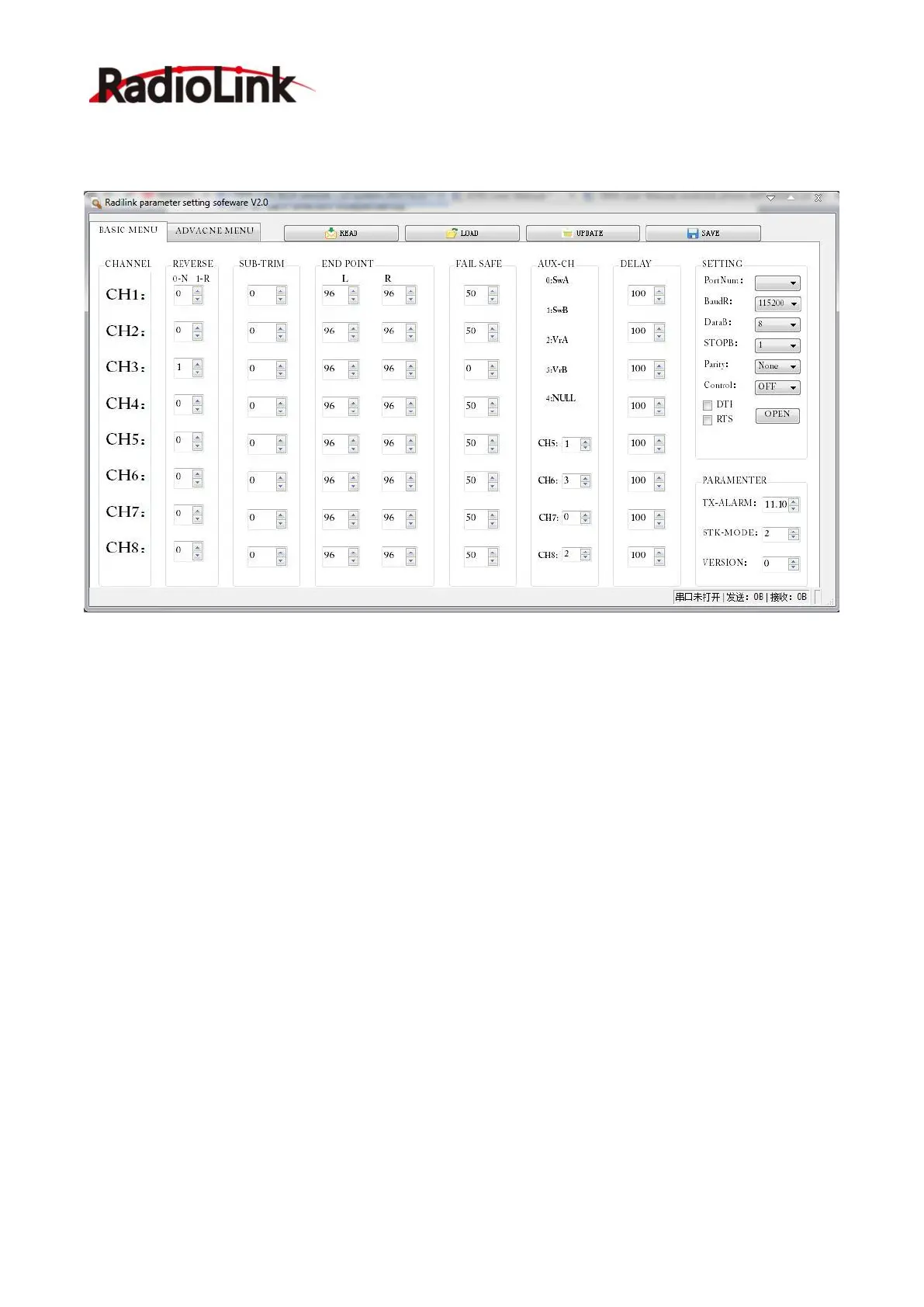

4.2.1 BASIC MENU
“REVERSE”: Defines the relationship between the transmitter controls and the receiver output for
channels.
“SUB-TRIM”: Makes small changes or corrections to the neutral position of each servo.
“END POINT”: Sets the range of each channel(in percentage);
The most flexible version of travel adjustment is available. It independently adjusts each end of
each individual servo’s travel, rather than one setting for the servo affecting both directions.
“FAIL SAFE” : Set responses in case of loss of signal or low Rx voltage(in percentage).
Each channel can be set independently.
“AUX-CH ”:Defines the relationship between the transmitter controls and the receiver output for
channels 5-8.
“ DELAY ” : Adjust the ratio between the position of servos and the actual operation “ TX-
ALARM”: Setting transmitter alarm voltage(defaulted 11.1 V).
“STK-MODE”: Change the mapping relation among sticks(MODE1 means throttle is the right stick;
MODE2 means throttle is the left stick).

RadioLink t8fb Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Spread Spectrum	Yes
Output	PPM
Compatibility	R8EF, R8FM
Battery	4 x AA batteries
Power Supply	4 x AA batteries
