1.3 R8EF Receiver
1.3.1 Receiver Mode and Signal Switch

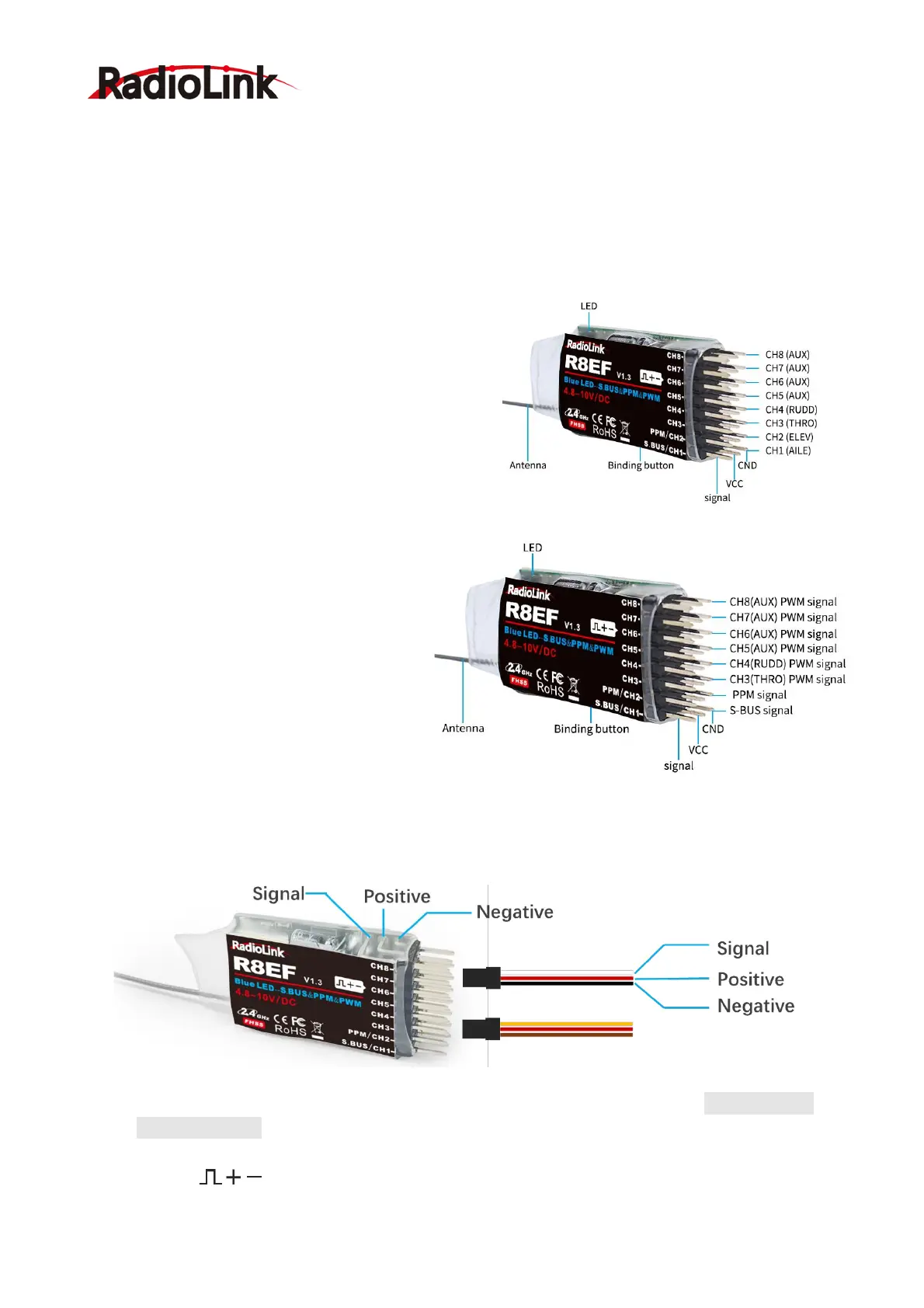

The R8EF receiver supports two modes: PWM single signal output and SBUS&PPM&PWM multi-signal
output. Short press the ID SET button twice (within one second) to complete the PWM signal output mode
or SBUS&PPM&PWM multi-signal output mode switch.
PWM signal is red light, SBUS&PPM&PWM multi-signal is blue light.
⚫ PWM mode:
All 8 channels of R8EF receiver output PWM signals
⚫ SBUS&PPM&PWM mode: The channel 1
of R8EF outputs the SBUS signal, and
channel 2 outputs the PPM signal.
Channel 3-8 output the corresponding
PWM signal.
1.3.2 Receiver Connection
The connection wire for receiver is shown in the picture above. The common ones are white/red/black
wire or yellow/red/brown wire. The two types of servo cables both are the light-colored wire as the signal
wire, the dark-colored wire as the ground wire, and the middle is 5V power supply, and the three wires
correspond to “ ”.
