Overview
General construction
Sensors
The term sensor refers to an individual sensor as part of the sensing array within a sensor cassette.
The electrical signal from each sensor is measured by proprietary analog electronics contained
within the analyzer unit.
The sensors are located on sensor boards in the sensor cassette.

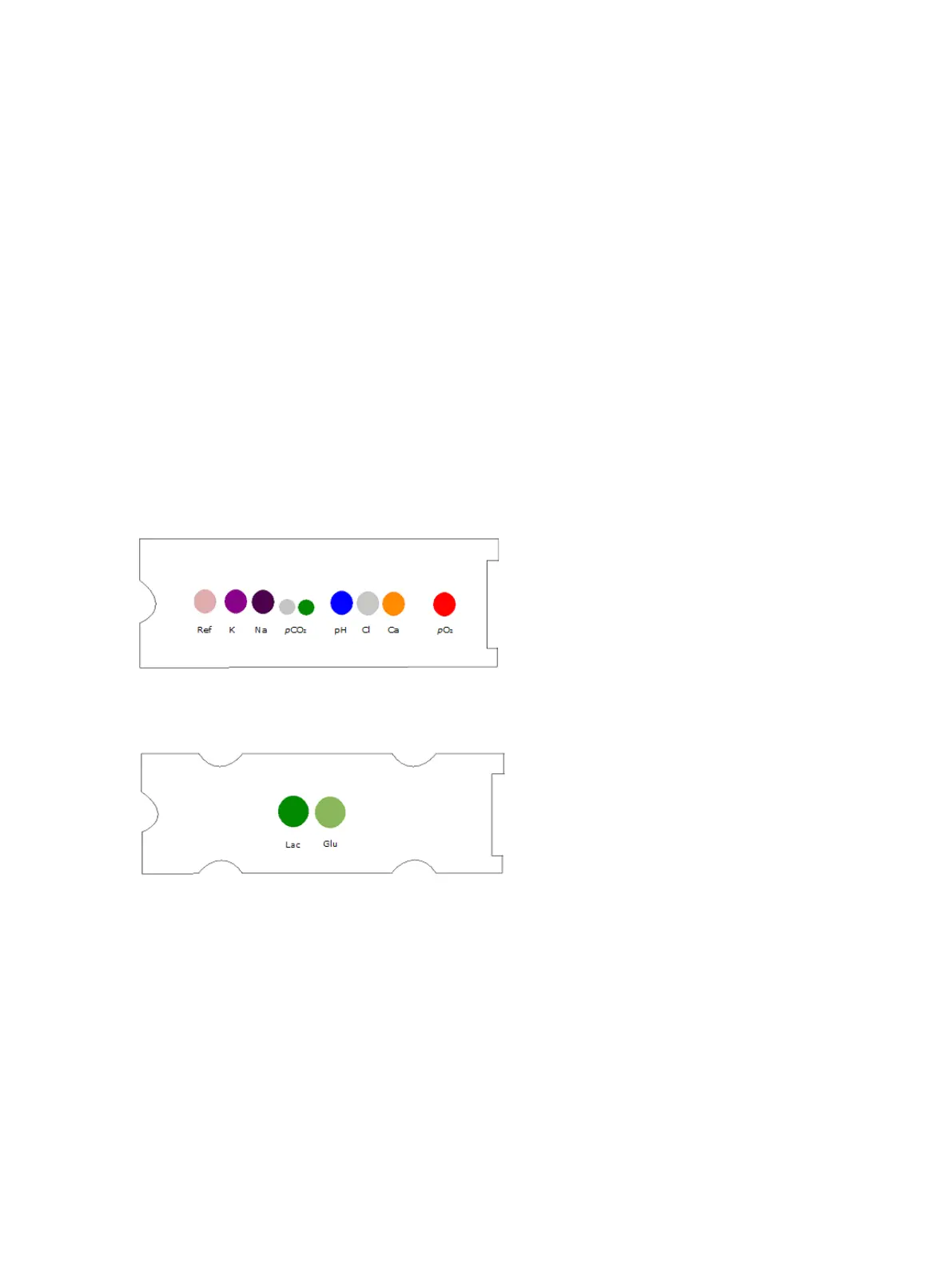

Top sensor board:
Bottom sensor board:
Theoretical aspects of the blood gas analyzer
30 of 36EXT-VEND-MAN-0023-1 Owner:Julie Monnox Approved:27 Mar 2019
