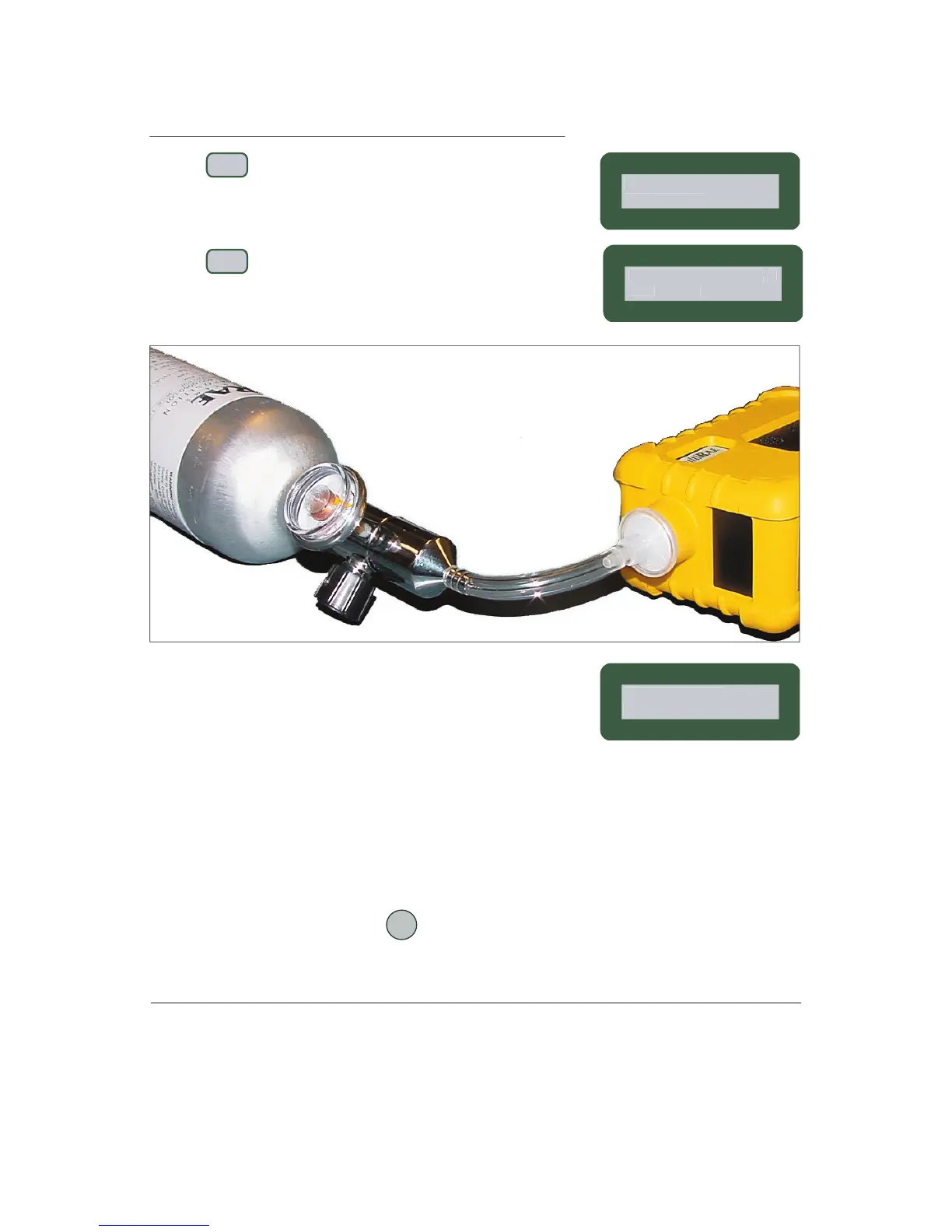

Multiple Sensor Calibration
Press [Y/+] .
The monitor will assume you want to calibrate the
CO, H
2
S, LEL and Oxygen sensors.
Press [Y/+] .
Apply the RAE Systems 4-gas span gas
mixture and start the gas flow.
Y/+
Y/+
TOX1
VOC TOX2
LEL
OXY
Multiple Sensor
Calibration?
TOX1
VOC TOX2
LEL
OXY
CO --- H
2
S
LEL
OXY
TOX1
VOC TOX2
LEL
OXY
Span Cal done!
Turn off Gas!
Turn off the gas flow and disconnect the calibration adapter from the
monitor. If calibration fails, an error message appears instead.
Refer to
Troubleshooting: “Calibration Error Message” on page 38.
NOTE:
If calibration is accidentally started and gas has run out or has
been disconnected, press
M
repeatedly. Calibration will stop and revert
back to the previous calibration values.
Calibrating the PID Sensor
The single sensor method used to calibrate the PID can also be used to
calibrate single toxic sensors. For the PID, use isobutylene (100ppm)
span gas. For other toxic sensors, use the appropriate gas, e.g.,
ammonia sensor - use ammonia gas, etc.
MO DE
The 60-second countdown timer appears.
“Span Cal Done! Turn Off Gas” message
appears. The readings should be very close
to the span gas values shown on the gas
cylinder.
