ESP-2WIRE Controller
3
2-Wire Installation
Overview
The ESP-2WIRE Controller can support up to two
2-Wire path connections. The controller manages
multiple connections as a single 2-Wire path.
2-Wire Field Wiring Connections.
2-Wire Decoder New Installation
Decoder Address Assignment
For easier installation, install field decoders with
address numbers in numerical order, starting with
the master valve first.
B
NOTE: Organize decoders numerically and
mark each decoder box with the decoder
address.
Write Station No. on the Decoder Carton.
Master Valve Address
If there is no master valve then station #1 will be
the lowest address in the decoder sequence.
For example:
• Table 1.1 shows a system with NO master valve.
Decoder address #10001 is automatically paired
to station #1.
• Table 1.2 shows a system WITH a master valve.
Decoder address #10001 is automatically paired
to the Master Valve. Decoder address #10002 is
then automatically paired to station #1.
• See Figure 1 for example of decoder addressing
with master valve.
No MV With MV
Station
Decoder
Address
Station
Decoder
Address
1 10001 MV 10001
2 10002 1 10002
3 10003 2 10003
4 10004 3 10004
5 10005 4 10005
Etc. 10006... Etc. 10006...
Table 1.1 Table 1.2

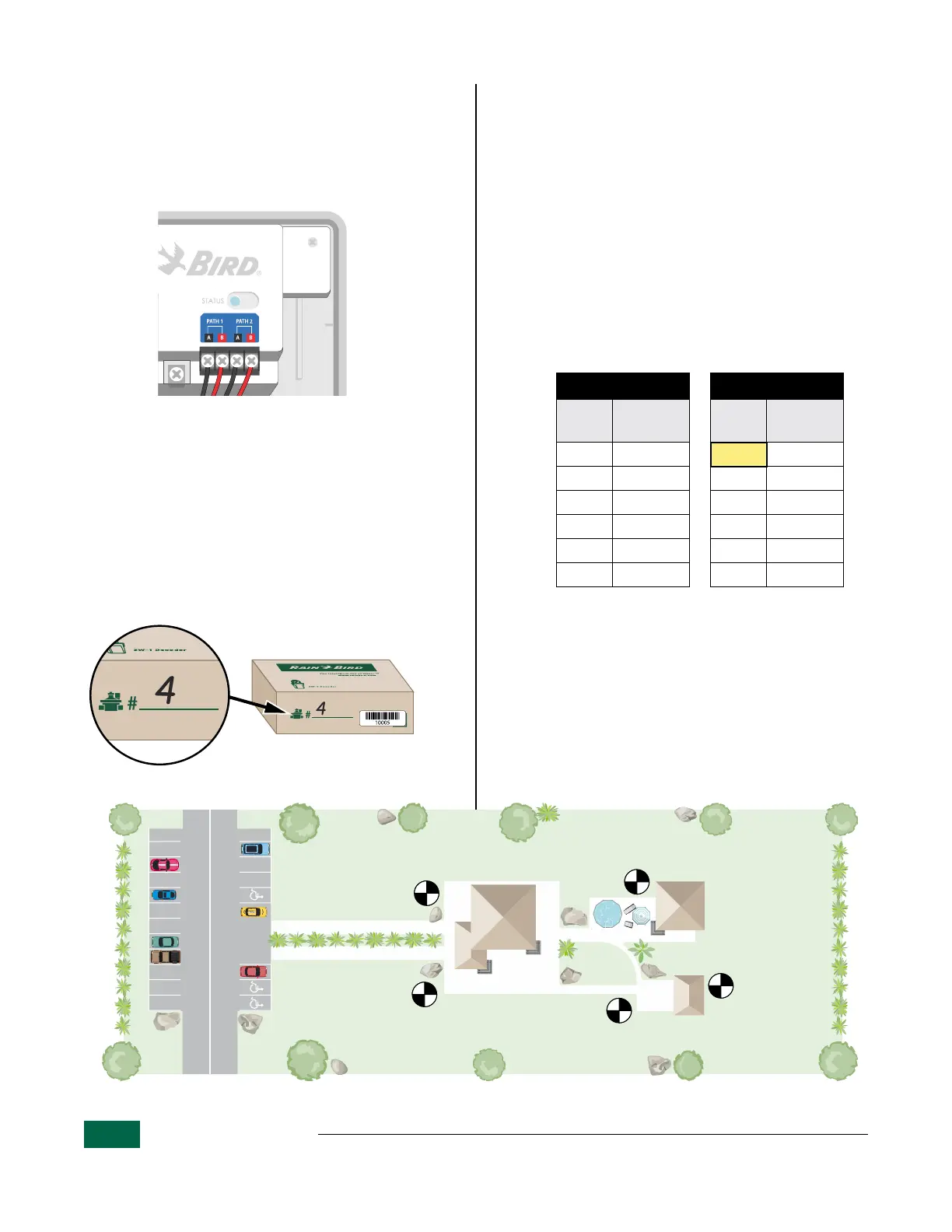

Figure 1 - Example of Site Layout with Master Valve.
Master Valve
#10001
Station 1
#10002
Station 2
#10003
Station 3
#10004
Station 4
#10005
