RAL STAINER User guide

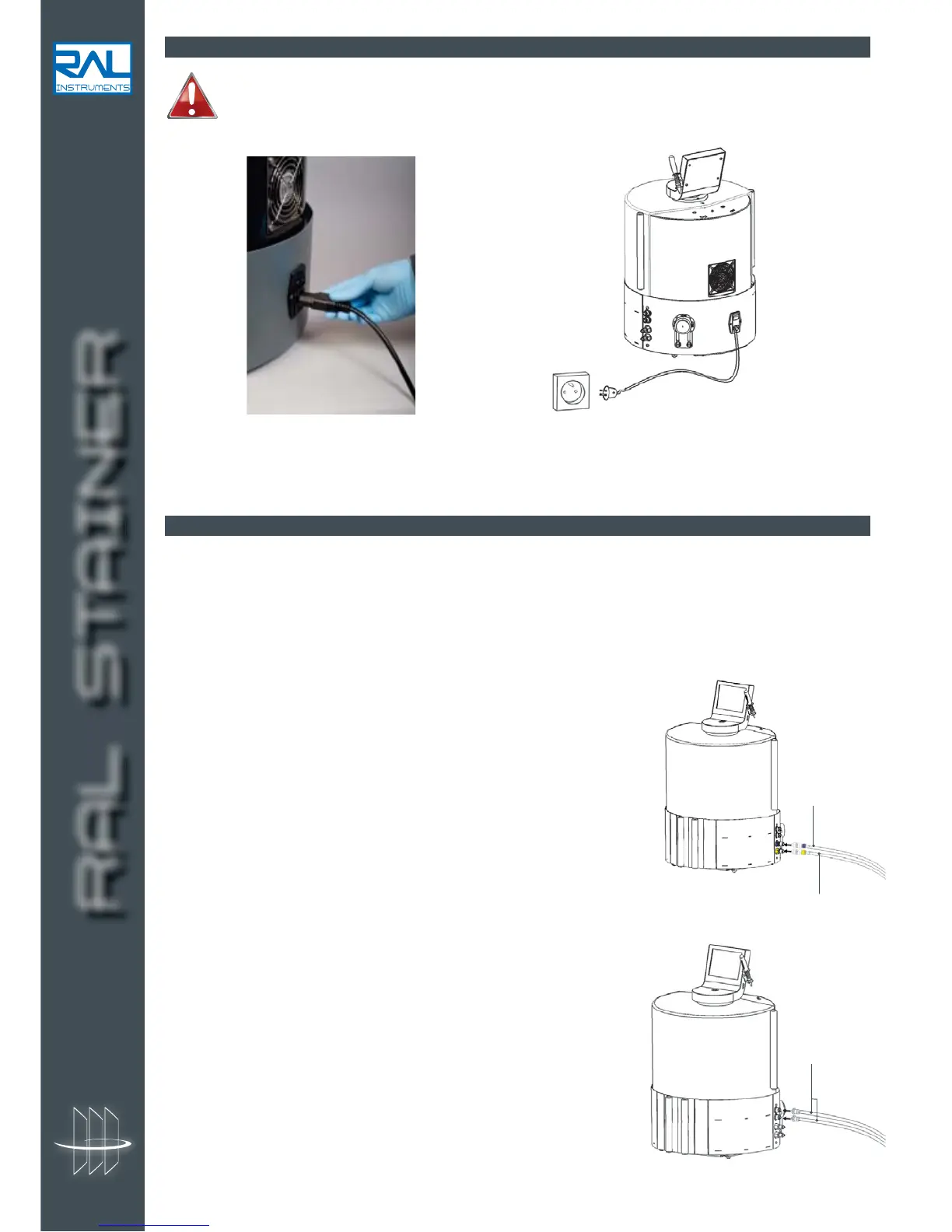

7.4 CONNECTION OF THE INSTRUMENT TO THE MAINS POWER SUPPLY
Only use the power supply supplied with the appliance.
Using the supplied power cable, connect the RAL Stainer to an alternating current power outlet nearby.
The appliance operates in the voltage range 100V to 240V, 50-60Hz
7.5 HYDRAULIC CONNECTIONS
Connect the Effluent container and the rinsing liquid container to the right hand part of the appliance.
1. Introduce the tube and the level sensor connected to the red cover into the waste container and screw the
cover to hermetically seal the container.
2. Introduce the tube and the level sensor connected to the blue cover
into the rinsing container and screw the cover to hermetically seal
the container.
3. Connect the tubes to the corresponding couplers on the appliance
taking care to respect the colour codes:
Blue: Connection of the rinsing liquid container
Yellow: Connection of the effluent container
4. Connect the electric cables using the male jack connectors to the
appliance's female male connectors in any order. The level sensors
do not have any specific connectors.
power outlet
120/240V, 50-60Hz
Rinsing container
tube
Rinsing level
and waste level
connections
Waste container
tube
