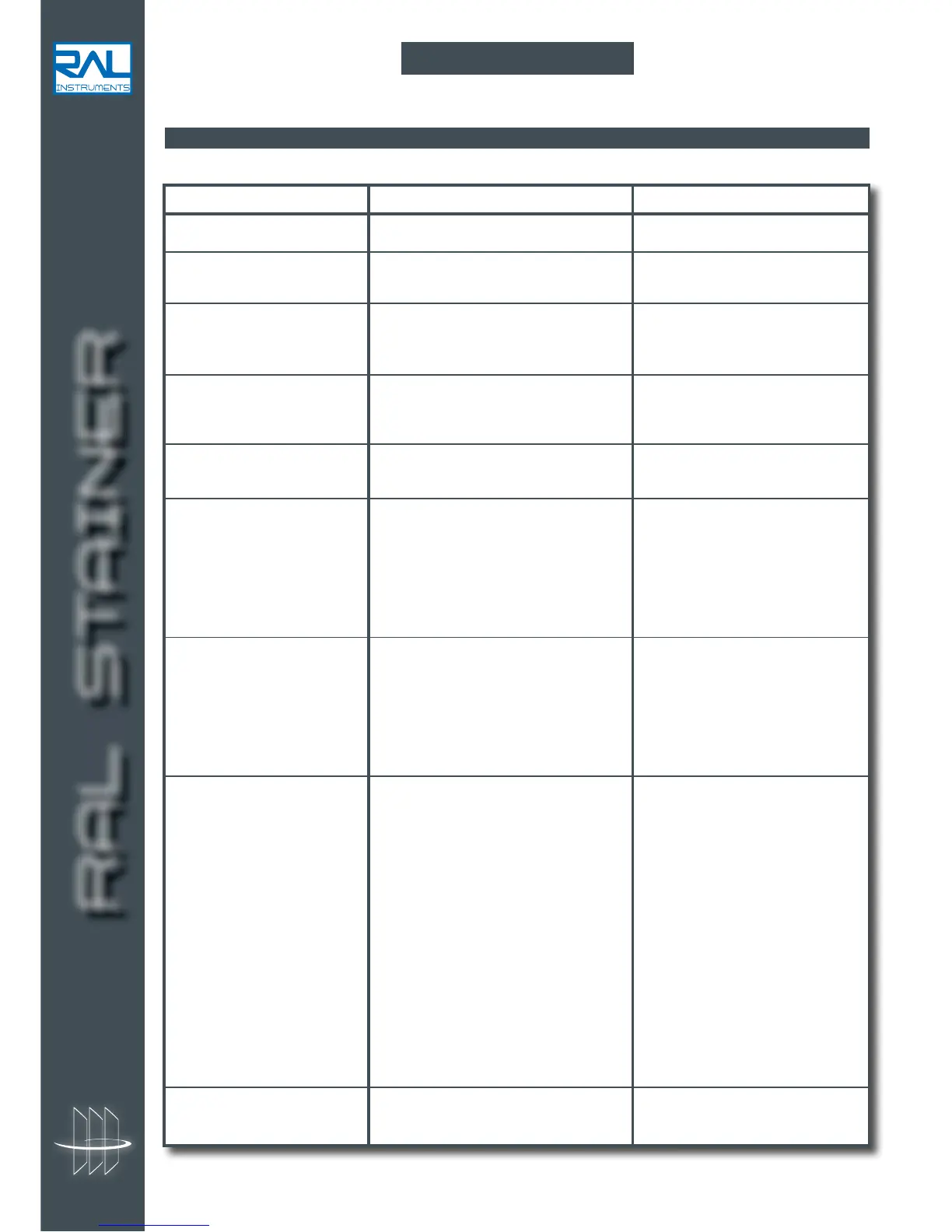

RAL STAINER User guide
Message Diagnosis Solution
Warning BBD expired Best Before Date expired Change the Staining Kit
The activated carbon filter Carbon filter expired Change the activated carbon
has expired filter
Tag error Bad tag position Check that bottle 1 is correctly
placed as per the operating
instructions in section 10.2.1
SID tag incorrect The tag on your Change the staining kit
Staining Kit is defective. or Contact your RAL Diagnostics
representative.
Motor unit card error Contact your RAL Instruments
representative.
Rinsing Station filling fault Check that the hydraulic circuit
is not disconnected at some
point.
Turn off the appliance and then
turn it back on. If the system is
not restored, contact your RAL
Instruments representative.
Step loss on Theta Turn off the appliance and then Check that the arm is operating
Code 200 turn it back on correctly by simulating a
Slide-holder incorrectly placed in staining kit change.
the drawer If the system is not restored,
Slide incorrectly placed on its support
contact your RAL Instruments
Drainage nozzle incorrectly placed representative.
on its support
16.1 ERROR MESSAGES
16 TROUBLESHOOTING
Step loss on Z
Code 1+tank number+1 =
Loss of Z step when
lowering to tank X
Examples :
Code 131 :
Loss of Z step
when lowering to tank 3
Code 1A1 :
Loss of Z step
when lowering to rinsing tank
Code 1B1 :
Loss of Z step
when picking up or dropping
off basket
Code 1+
tank number
+2 =
Liquid missing in tank
X
Example :
Code 142 :
Liquid missing in
tank
4
Call a maintenance
technician
This can occur when
the level
detection could not be carried out.
Check that the necks of the
bottles are not dirtied.
If so, clean them.
Turn off the appliance and then
turn it back on.
Check that the arm is operating
correctly by simulating a staining
kit change.
If the system is not restored,
contact your RAL Instruments
representative.
Contact your RAL
Instruments representative.
