Digital input 5 in ControlMaster NXT will be deactivated. No connection is needed.
Variation 2 - EP2+slow down. MS2 control
method with slowdown limit switch. With ControlMaster
NXT both direction signals from limit switch must be connected in series as shown in below figures.

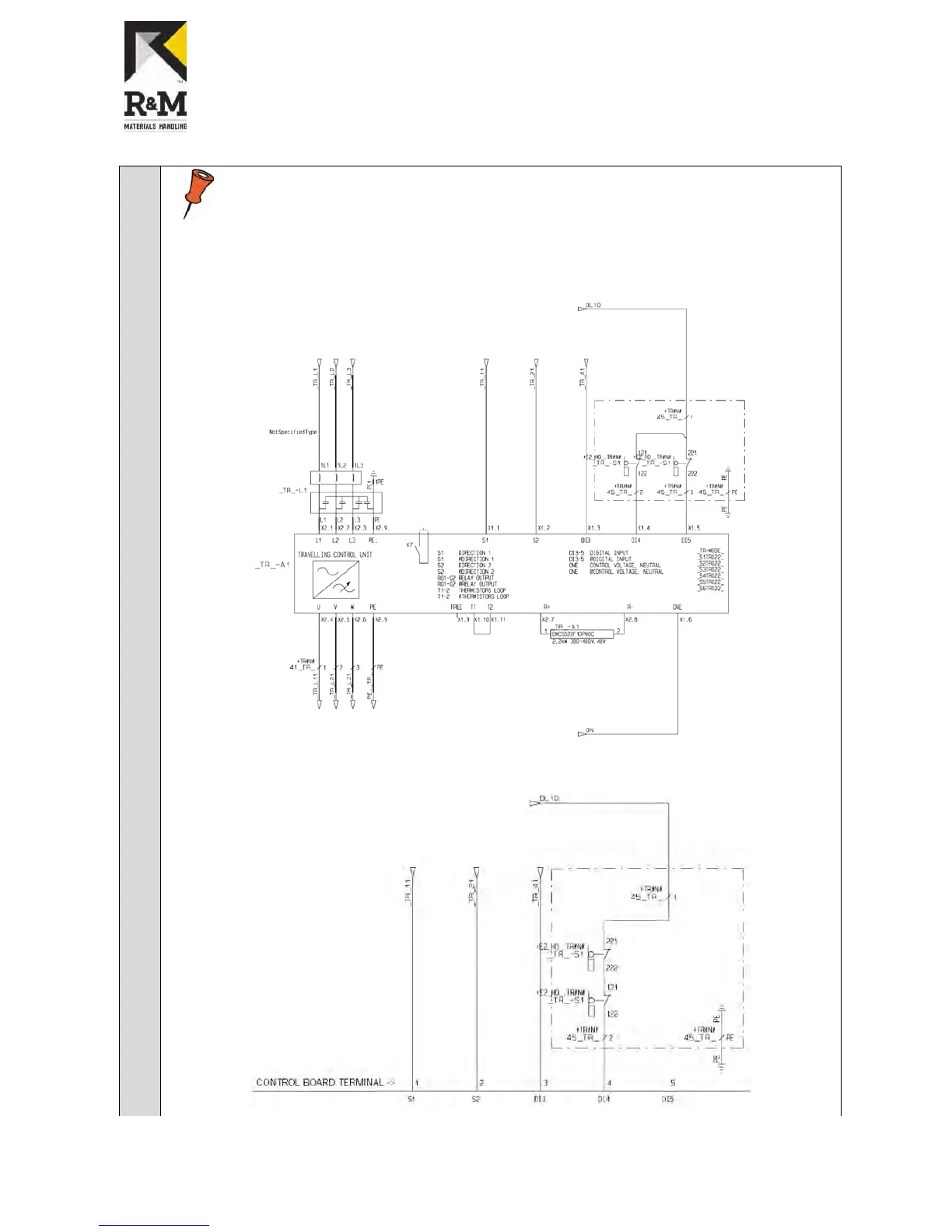

Figure 3. Old inverter + EP2 + slow down
Figure 4. New inverter + EP2 + slow down
