9
Connect the control wires according to the next instructions. Look at the original electrical drawings to
see how the
original application is built. There are five different variations how control wires can be
connected.
Variation 1 - MS2+stop . EP2 or MS2 control with stop limit.

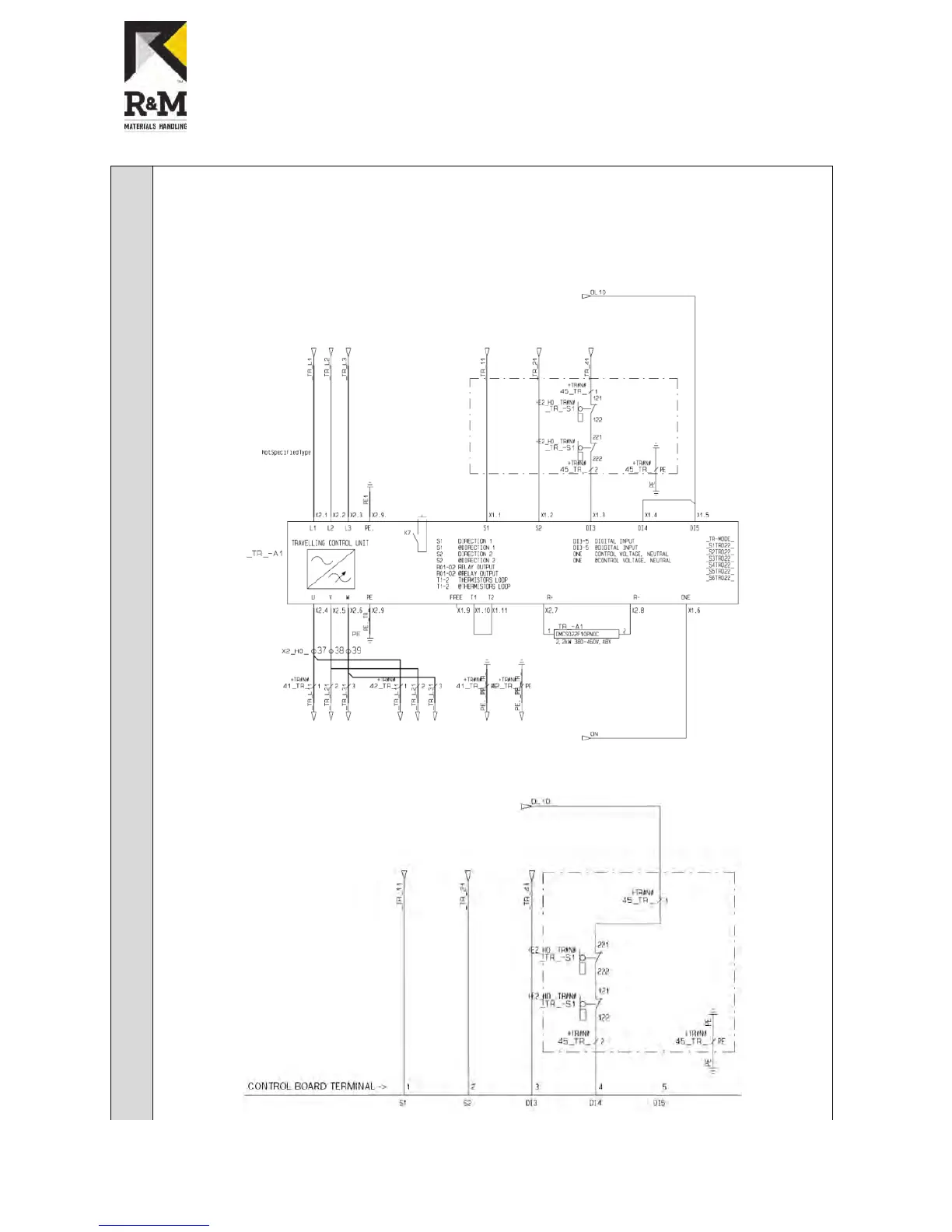

Figure 1. Old inverter + MS2 + stop
Figure 2. New inverter + MS2 + stop
R&M Materials Handling, Inc.
4501 Gateway Boulevard
Springfield, Ohio 45502
P.: (937) 328-5100
FAX: (937) 325-5319
14/34
