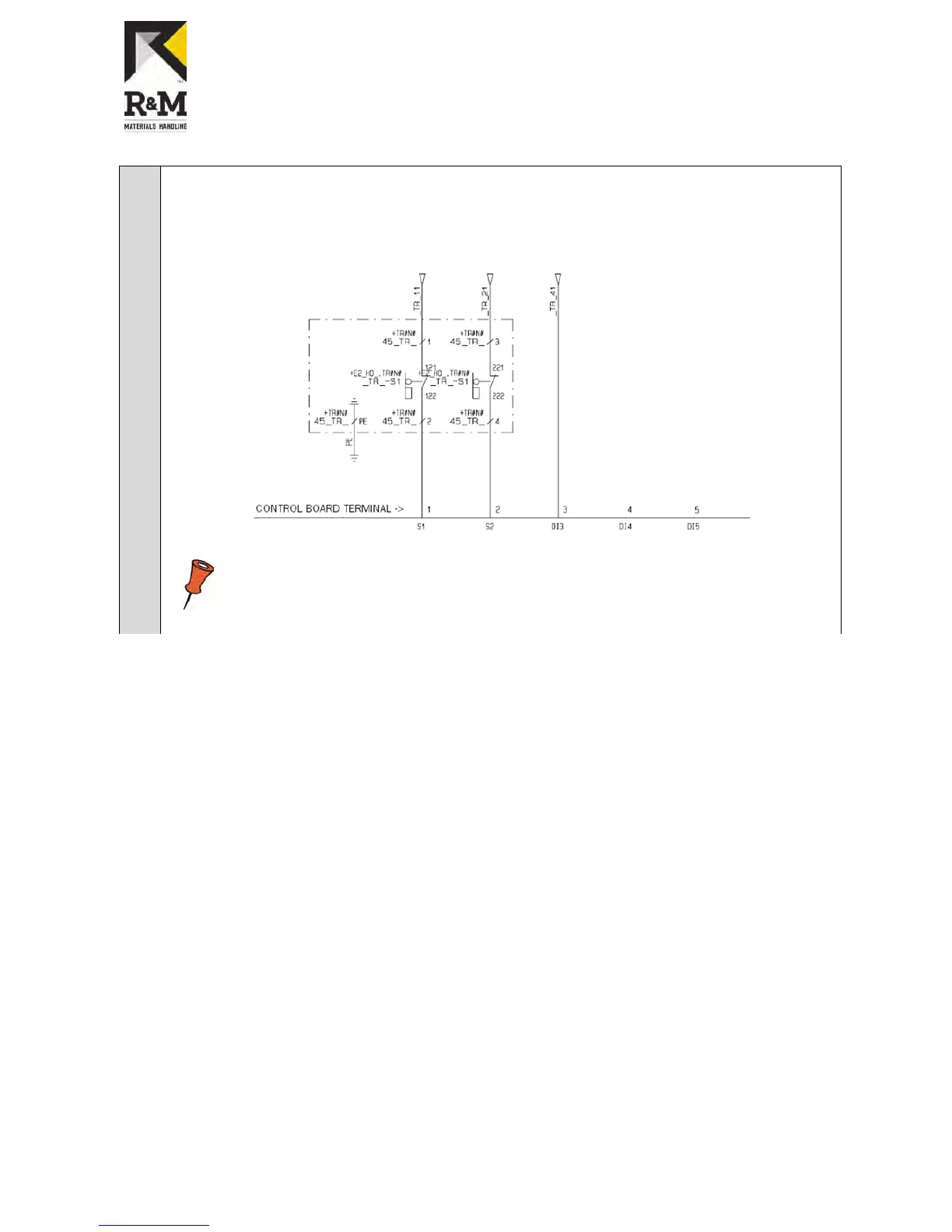

Figure 6. New inverter + EP2 / MS2 + stop
Digital inputs 4 and 5 in ControlMaster NXT will be deactivated. No connection is
needed.
Variation 4 - MS2 + 2-step limit switch.
