R&M ControlMaster NXT - Page 39

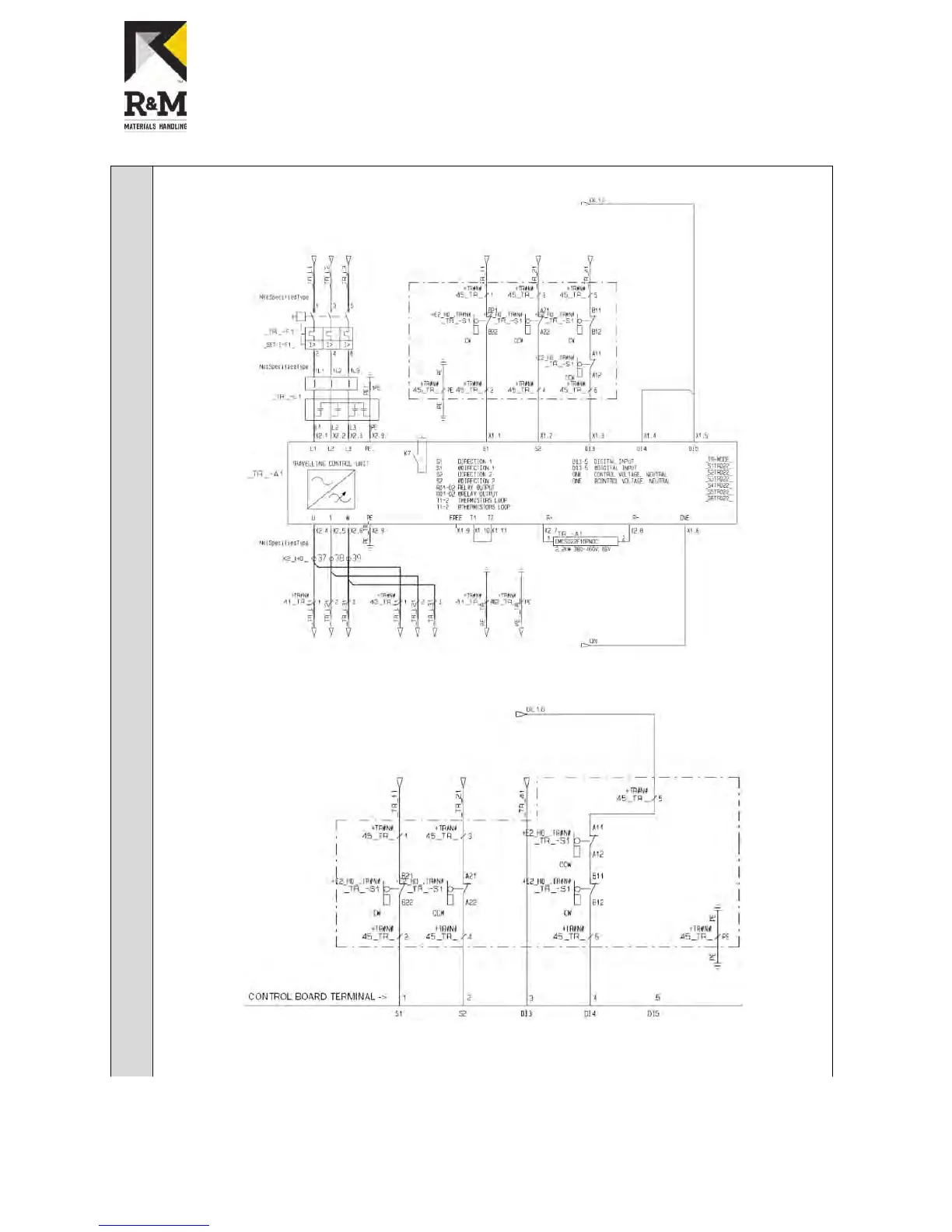

Figure 7. Old inverter + MS2 + 2-step limit switch
Figure 8. New inverter + MS2 + 2-step limit switch
Variation 5 - EP2 + 2-step limit switch. With ControlMaster NXT
the both slowdown direction signals
from limit switch must be connected in series.
