R&S OSP Instrument Functions
Operating Manual 1505.3896.12 - 14 114

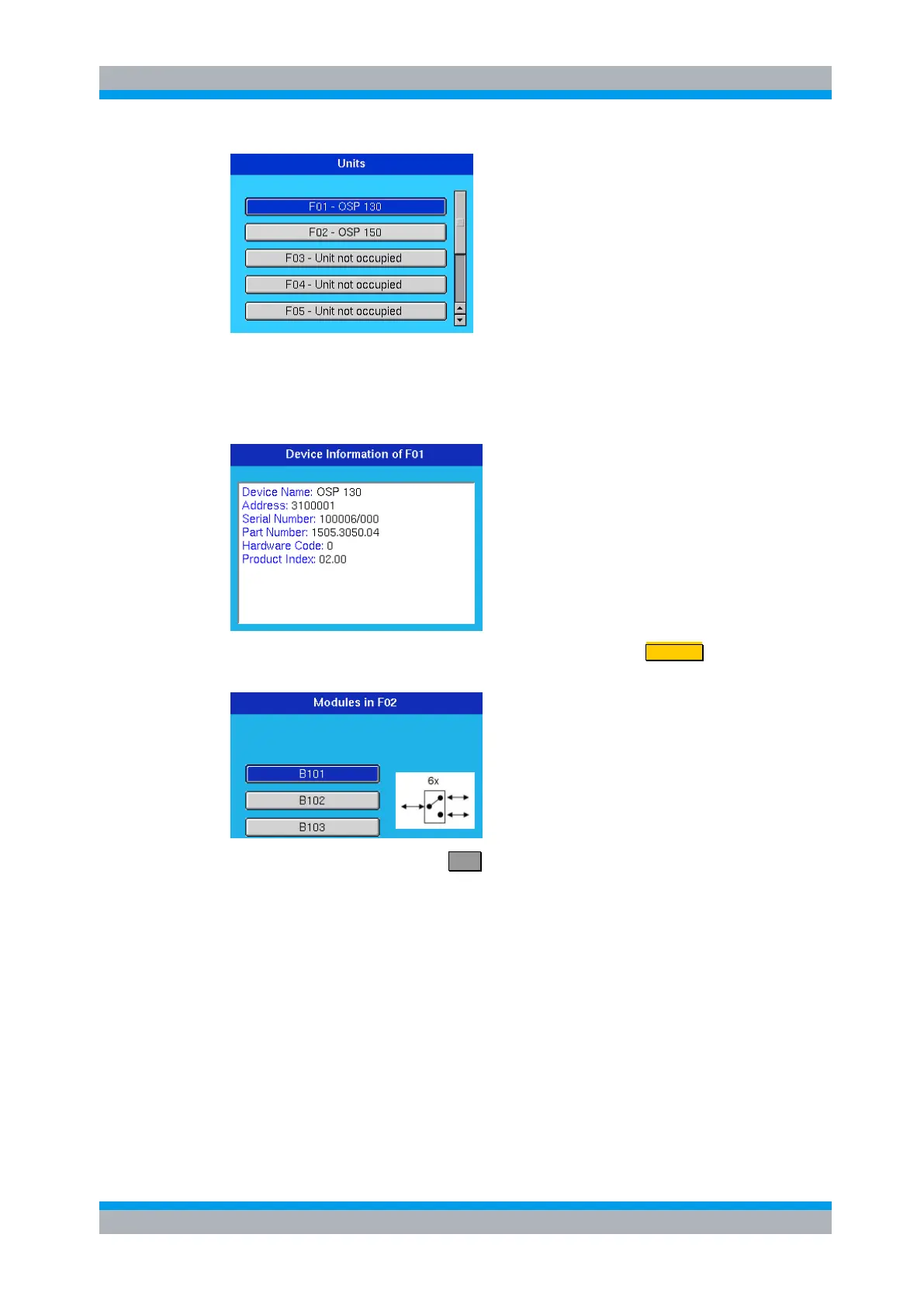

The example here shows an R&S OSP130 connected with a single extension unit
R&S OSP150.
If an extension unit R&S OSP150 is located on F02 to F09, it can be selected from this
dialog.
While the selection to one of the units is made, pressing the STATUS key will display
some information on the unit. See the example.
Selecting the unit and pressing OK will move into the next dialog.
Depending on the modules fitted to the unit, the available selections will vary. In the
example on the left hand side the first slot is equipped with an R&S OSP-B101, the
second with an R&S OSP-B102, and the third with an R&S OSP-B103. Next to the
selected module some picture visualizes the capability of the module, in the case of
the R&S OSP-B101 indicated by a SPDT switch and the count 6x.
