R&S OSP Instrument Functions
Operating Manual 1505.3896.12 - 14 125

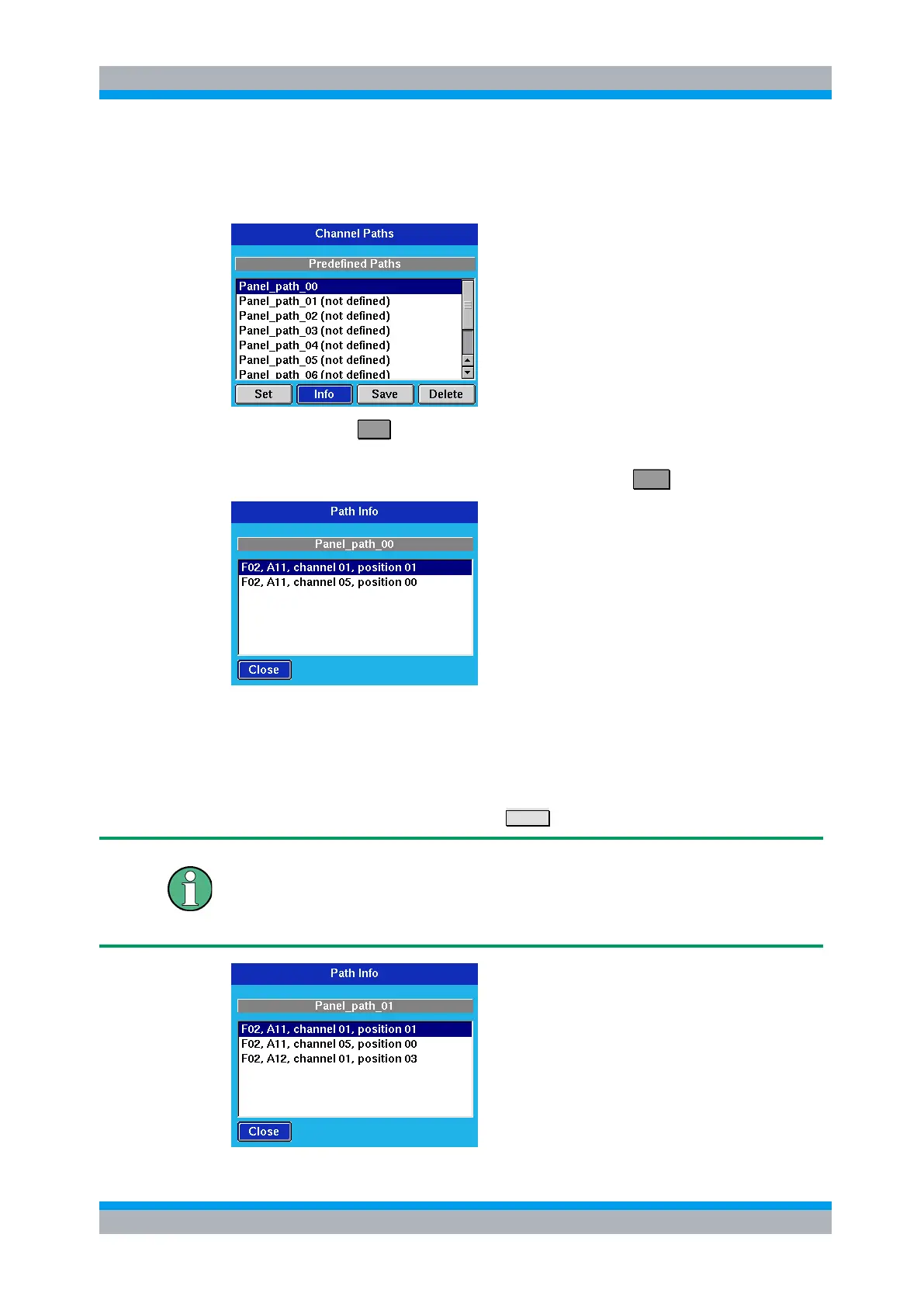

If no path has been saved so far, the list shown in the dialog only contains undefined
paths. By default, on an R&S OSP130 there are ten paths which can be defined
(Panel_path_00 till Panel_path_01).
After pressing the OK key (Save being the only possibility when an undefined path is
marked) the path configuration is stored as Panel_path_00.
Now mark the Info button using the cursor keys and press OK .
The information displayed thereupon contains the two relays included in the path
configuration.
Then go back to Manual switching and select the module R&S OSP-B102.
Perform the settings of the R&S OSP-B102 module as shown in the second
screenshot in chapter 5.3.5. This selects K1 to be in position 3.
Go now back to the Main menu using the MENU key, and select the Path Switching menu.
Channel numbers
Note that for some modules there might be an offset to be included either way in order
to convert channel numbers to relay names. For example, channel 1 on an R&S OSP-
B101 corresponds to K11.
