Operating Manual 1505.3896.12 - 14 174
In the Device list which is shown in the left box, the device type SwitchUnits and
device R&S OSP is selected.
When pressing this button, the device OSP is taken over into the
EMC32 device configuration and displayed in the box Configured
Devices

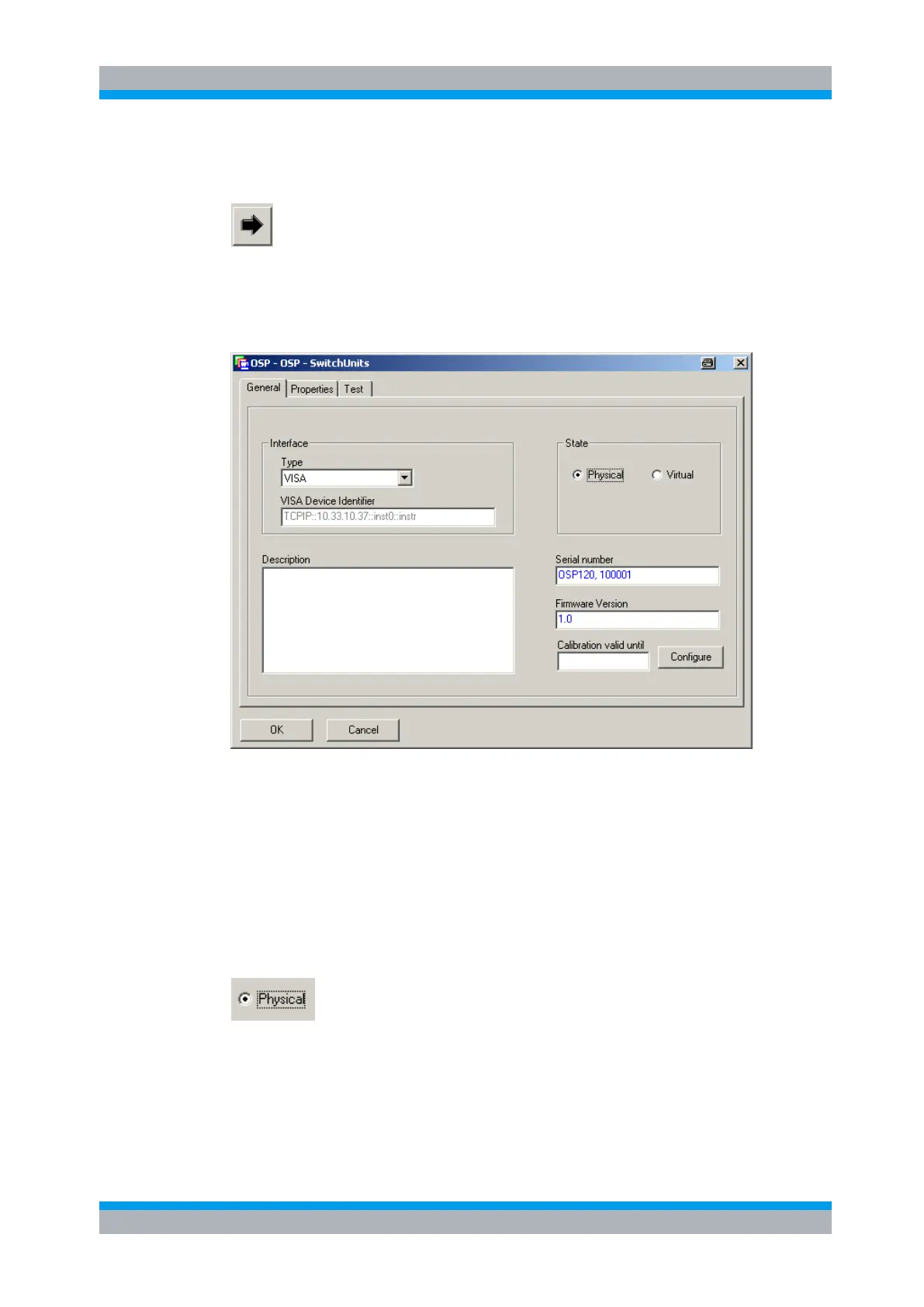

By double-clicking the device OSP, the dialog for further configuration of the Device is
opened.
Selecting the tab General allows to define the interface setting. The OSP is
addressable via LAN interface. Therefore the Interface Type to be selected for the
EMC32 is “VISA”.
The click box is used to select VISA as interface type.
Here the actual IP address of the R&S OSP is to be entered. Note
that the complete string must be entered as follows:
TCPIP::xx.xx.xx.xx::inst0::INSTR
where xx.xx.xx.xx is the actual IP address.
Note that the part “::inst0” of the VISA string is optional.
If the Interface Type and the VISA Device Identifier are correct, the
driver state is switched to Physical by selection of this button.
