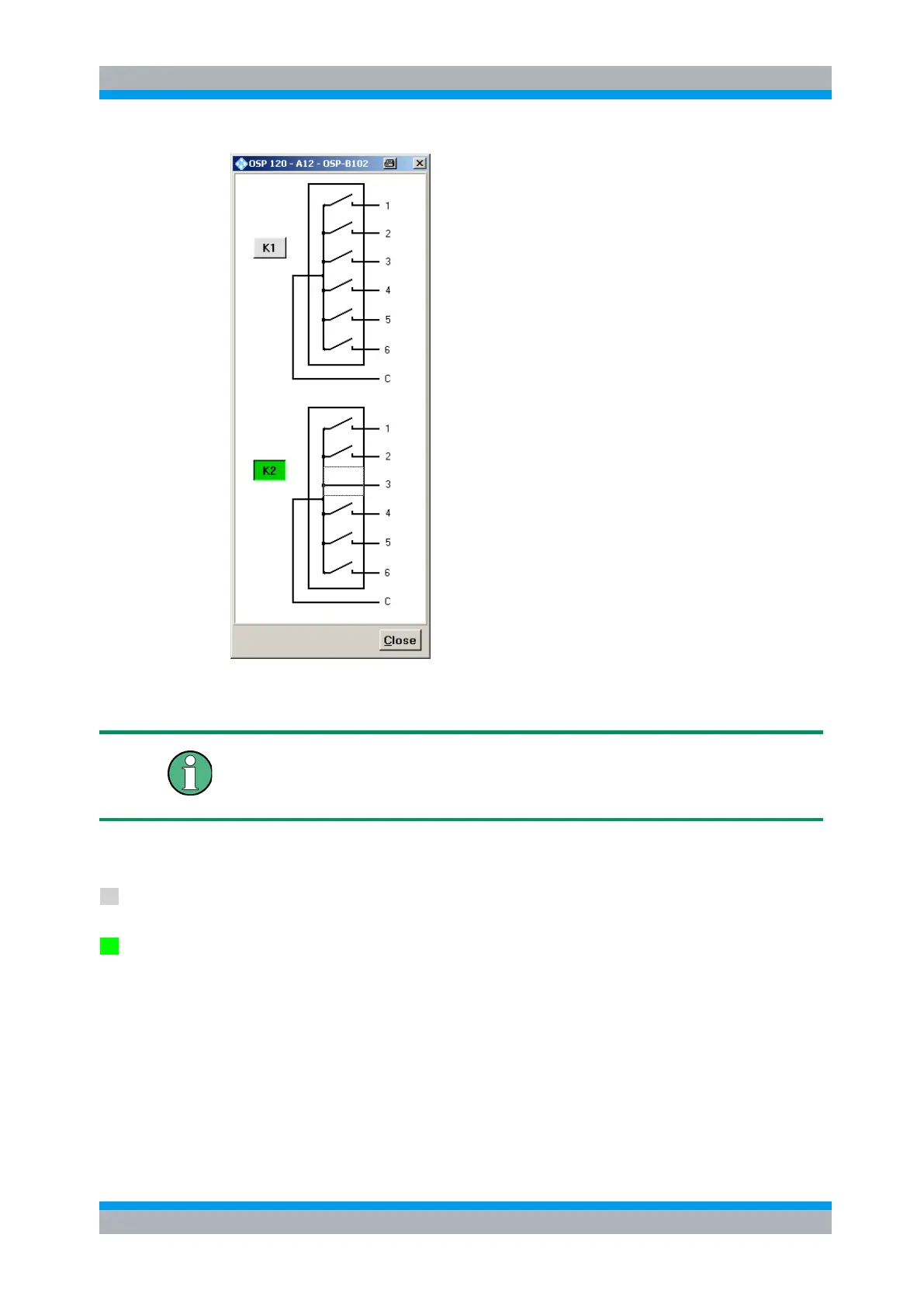

Clicking on any of the six positions of the two relays, this relay will switch to the
associated terminal. Clicking on a closed position will open it and reset this relay.
SP6T switch
Note that for this type of relay only one terminal (1 of 6) can be activated at the same
time. If no terminal is activated, the relay is in open position.
The buttons K1 and K2 are not required for manual operation of the switches, but for
defining a path configuration (see chapter 3.4).
A button K1 and/or K2 in grey color indicates that this relay is not selected. A non
selected relay is not considered when defining a path configuration.
To take over particular relays into the path configuration, the relay buttons must be
selected by clicking on each of the relay buttons required. The selected relay is
displayed with a button in green color. All relays whose relay buttons are selected are
taken over into a path configuration.
► Pressing the Shift key while clicking on a relay button will toggle between
selecting all relays of this module and deselecting all of them.
