INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 11 of 60
600
600
600
X
b
a
1
X
X
c

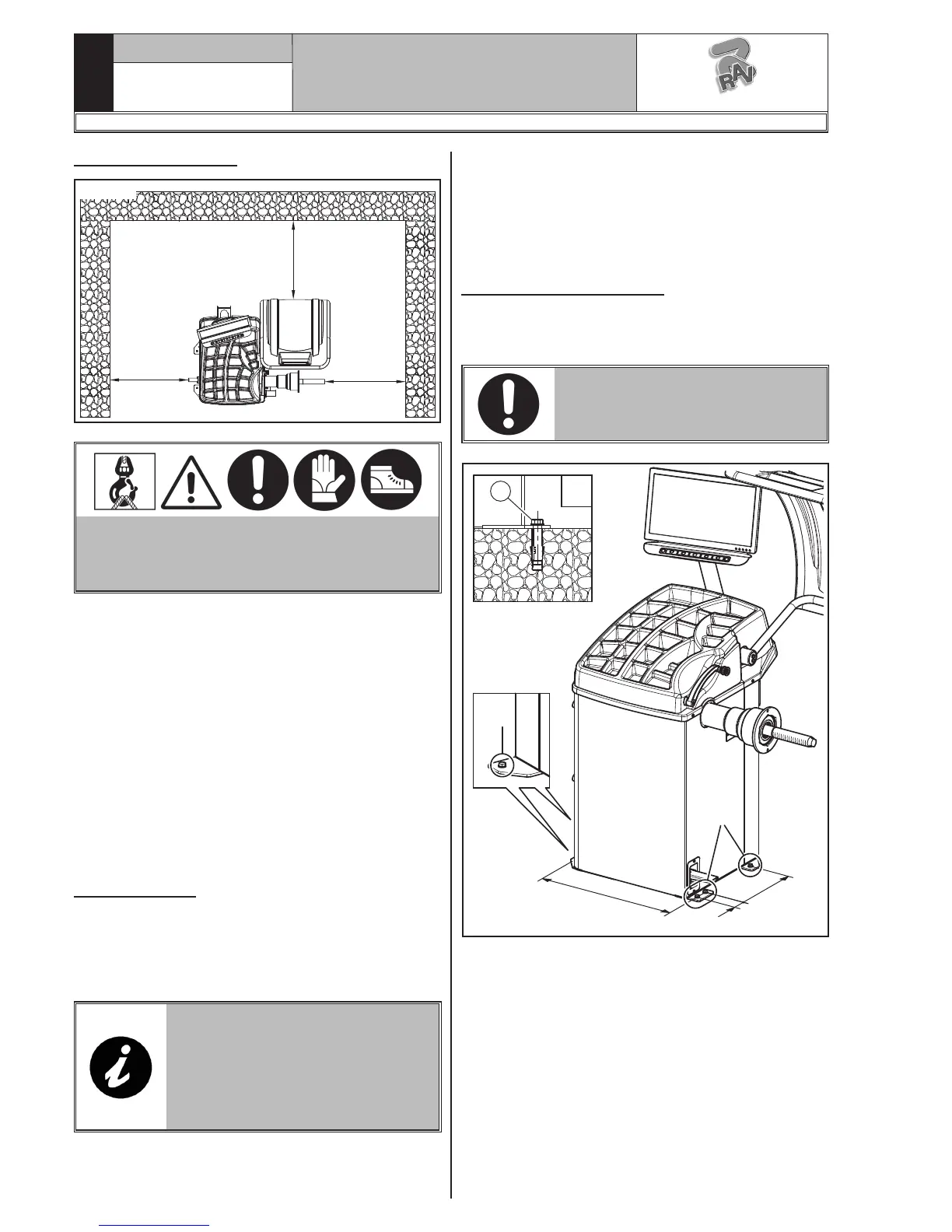

8.1 Working area
Fig. 4
a = 306
b = 580
c = 55
USE THE MACHINE INDOORS OR IN A ROOFED
AREA. PLACE OF INSTALLATION MUST BE
DRY, ADEQUATELY LIT AND IN COMPLIANCE
WITH APPLICABLE SAFETY REGULATIONS.
The location of the machine requires a usable space
as indicated in Fig. 3. The positioning of the machine
must be according to the distances shown. From the
control position the operator is able to observe all the
machine and surrounding area. He must prevent unau-
thorized personnel or objects that could be dangerous
from entering the area.
The machine must be fixed on a flat floor surface,
preferably of cement or tiled. Avoid yielding or irregu-
lar surfaces.
The base floor must be able to support the loads trans-
mitted during operation.
This surface must have a strength of at least 500 kg/m².
The depth of the solid floor must be sufficient to guar-
antee that the anchoring bolts hold.
8.2 Lighting
The machine does not require its own lighting for
normal working operations. However, it must be used
in an adequately lit environment.
In case of poor lighting use lamps having total power
800/1200 Watt.
IF IT IS INSTALLED, EACH TIME
THE ROD OF THE GAUGE IS EX-
TRACTED FROM ITS HOUSING,
THE LED LIGHT (FIG. 1 REF. 9)
TURNS ON MAKING THE INSIDE
OF THE WHEEL WHERE THE OP-
ERATOR MUST WORK BRIGHTER.
9.0 MACHINE ASSEMBLY
After having freed the various components from the
packing check that they are complete, and that there
are no anomalies, then comply with the following in-
structions for the assembly of the components making
use of the attached series of illustrations.
9.1 Anchoring system
The packed machine is fixed to a pallet by support feet.
Such feet also fix the machine to the ground through
anchor small blocks as shown in Fig. 4 ref._1.
IN CASE OF WHEEL WEIGHING
MORE THAN 30 KG, IT IS COM-
PULSORY TO FIX TO THE GROUND
BY MEANS OF SCREW ANCHORS.
The holes in the solid floor must be about 10 cm deep
with a diameter of 8 MA.
The bolts (Fig. 4 ref. 1) must be inserted in the pre-
arranged holes and fully tightened (tightening torque:
about 22 Nm) until reaching the system full seal.
Fig. 3
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
