INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 9 of 60

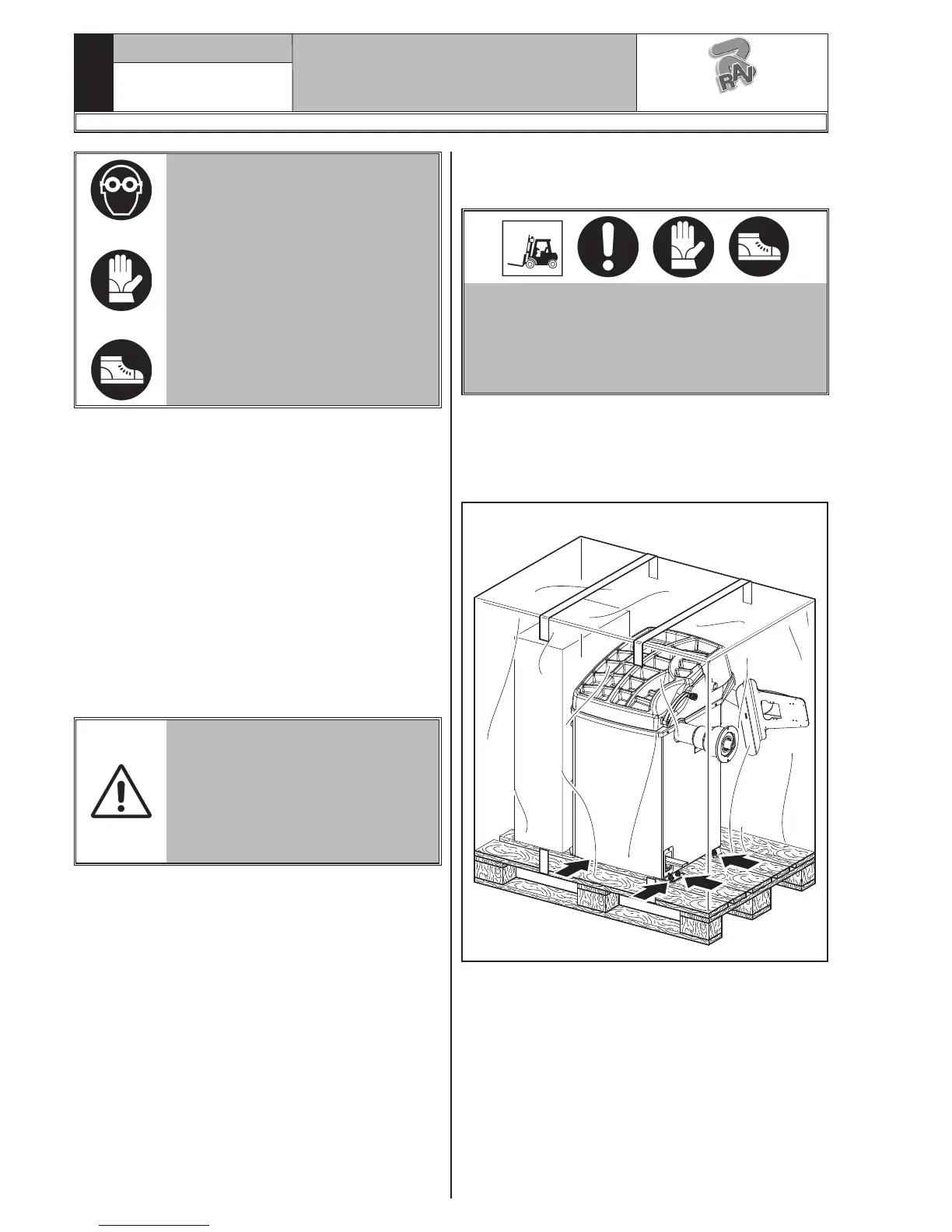

Fig. 2
5.0 PACKING AND MOBILIZATION
FOR TRANSPORT
HAVE THE MACHINE HANDLED BY SKILLED
PERSONNEL ONLY.
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE PACKED MACHINE (SEE
PARAGRAPH “TECHNICAL SPECIFICATIONS”).
The machine is packed completely assembled. The
machine is inside a carton box which size is mm
1040x950x1090.
Movement must be by pallet-lift or fork-lift trolley.
The fork lifting points are indicated on the packing.
OPERATORS MUST WEAR SUIT-
ABLE WORK CLOTHES, PROTEC-
TIVE GLASSES AND GLOVES,
AGAINST THE DANGER FROM
THE SPRAYING OF DANGEROUS
DUST, AND POSSIBLY LOWER
BACK SUPPORTS FOR THE LIFT-
ING OF HEAVY PARTS. DANGLING
OBJECTS LIKE BRACELETS MUST
NOT BE WORN, AND LONG HAIR
MUST BE TIED UP. FOOTWEAR
SHOULD BE ADEQUATE FOR THE
TYPE OF OPERATIONS TO BE CAR-
RIED OUT.
The machine handles and operating grips must be
kept clean and free from oil.
The workshop must be kept clean and dry. Make sure
that the working premises are properly lit.
The machine can be operated by a single operator.
Unauthorized personnel must remain outside the
working area, as shown in Fig. 3.
Avoid any hazardous situations. Do not use air-
operated or electrical equipment when the shop is
damp or the floor slippery and do not expose such
tools to atmospheric agents.
When operating and servicing this machine, carefully
follow all applicable safety and accident-prevention
precautions.
The machine must not be operated by professionally
unskilled persons.
WHEN USING THE MODELS WITH
WHEEL PNEUMATIC CLAMPING,
DURING MANDREL OPENING/
CLOSING OPERATIONS, BE EX-
TREMELY CAREFUL AND KEEP
YOUR HANDS OR OTHER PARTS
OF YOUR BODY AWAY FROM THE
MOVING MANDREL.
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
