INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 29 of 60

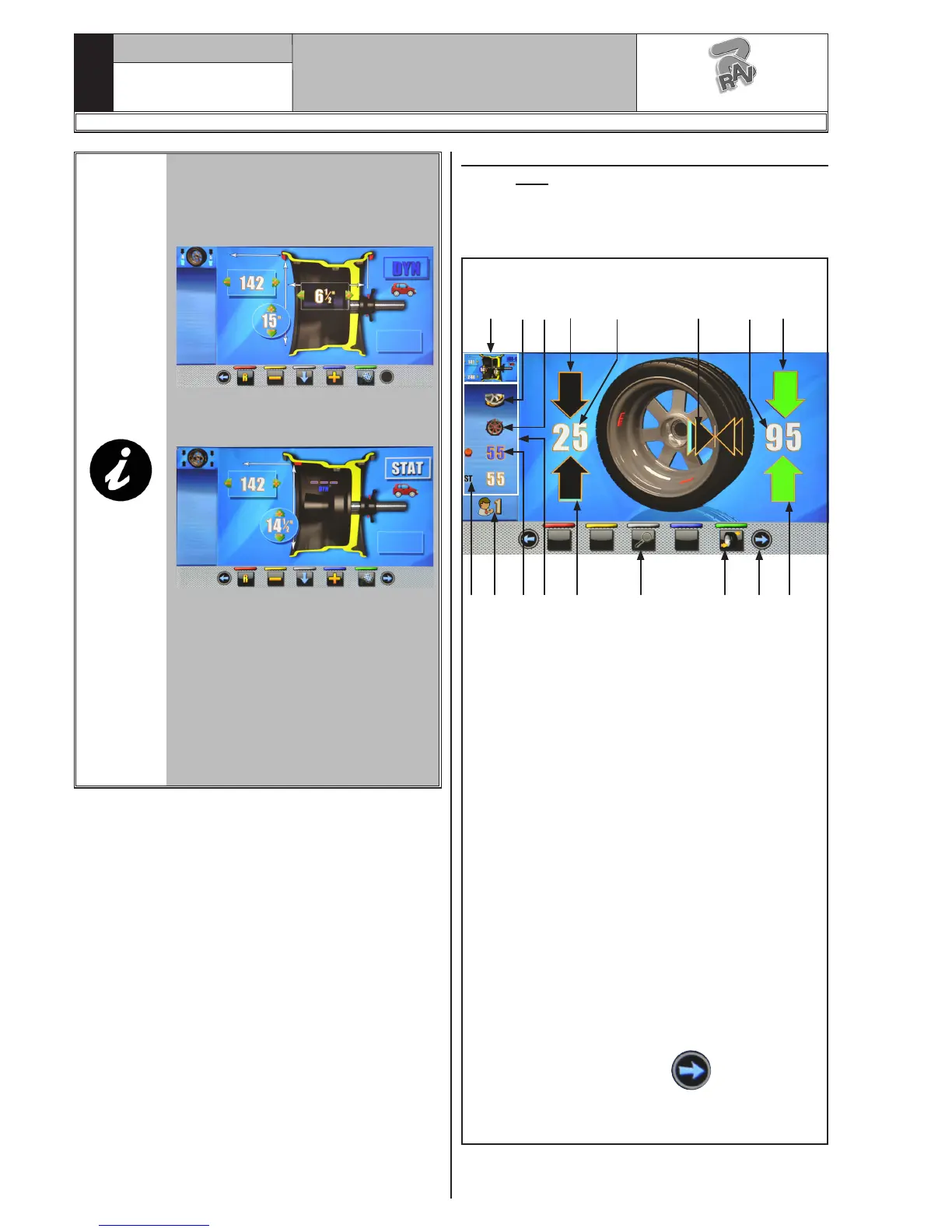

14.5 Wheel balancing screen page descrip-
tion
After executing the spin of the wheel, the monitor dis-
plays a series of important information that helps the
operator in his operations and subsequent choices.
2P163 P2
29783
1 a b
d 5 c 4
KEY
1 Measures used by the program to perform the
spin and detect the values in P1 - P2
P1 Weight to be fitted on rim outer side
P2 Weight to be fitted on rim inner side
2 Wheel placed to fit the weight on wheel outer
side (arrows both green)
3 Wheel not placed to fit the weight on wheel
inner side (blue/black arrows)
4 Wheel balancing suggestions
4a SPLIT Program (Clip weights program) or
MATCHING Program
4b SPOKES Program (program with adhesive
weights)
4c – ECO-WEIGHT Program with weight value to
be fitted (if the value is of blue, the machine
advises not to use it)
4d STATIC Program
5 N° user (if selected)
6 Arrows indicating the weight fitting point with
distance-diameter caliper arm
7 Wheel repositioning button for weights fitting
8 Display the actual weight
9 By pressing the button you will see the
following page where you can select one of the
programs suggested by the machine.
Fig. 46
NORMALLY DURING THE DETEC-
TION OF MEASUREMENTS, THE
1ST ACTIVE FIELD WILL BE THE
ONE FOR THE SELECTION OF THE
PROGRAM.
THERE IS A CASE, HOWEVER, IN
WHICH THE 1ST ACTIVE FIELD
WILL BE THE RIM WIDTH.
THIS CASE WILL OCCUR ONLY IF
FROM "HOME" PAGE IS DETECTED
ONLY ONE MEASUREMENT IN-
SIDE THE RIM. THE PROGRAM
WILL AUTOMATICALLY SET TO
"STATIC" BUT IT WILL MAKE IT
POSSIBLE (IN CASE OF ABSENCE
OF EXTERNAL DATA GAUGE) TO
MANUALLY ENTER RIM WIDTH
AND TO QUICKLY SWITCH TO THE
PROGRAM "DYNAMIC".
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
