GB
Page 34 of 60
INSTRUCTION, USE AND
MAINTENANCE MANUAL

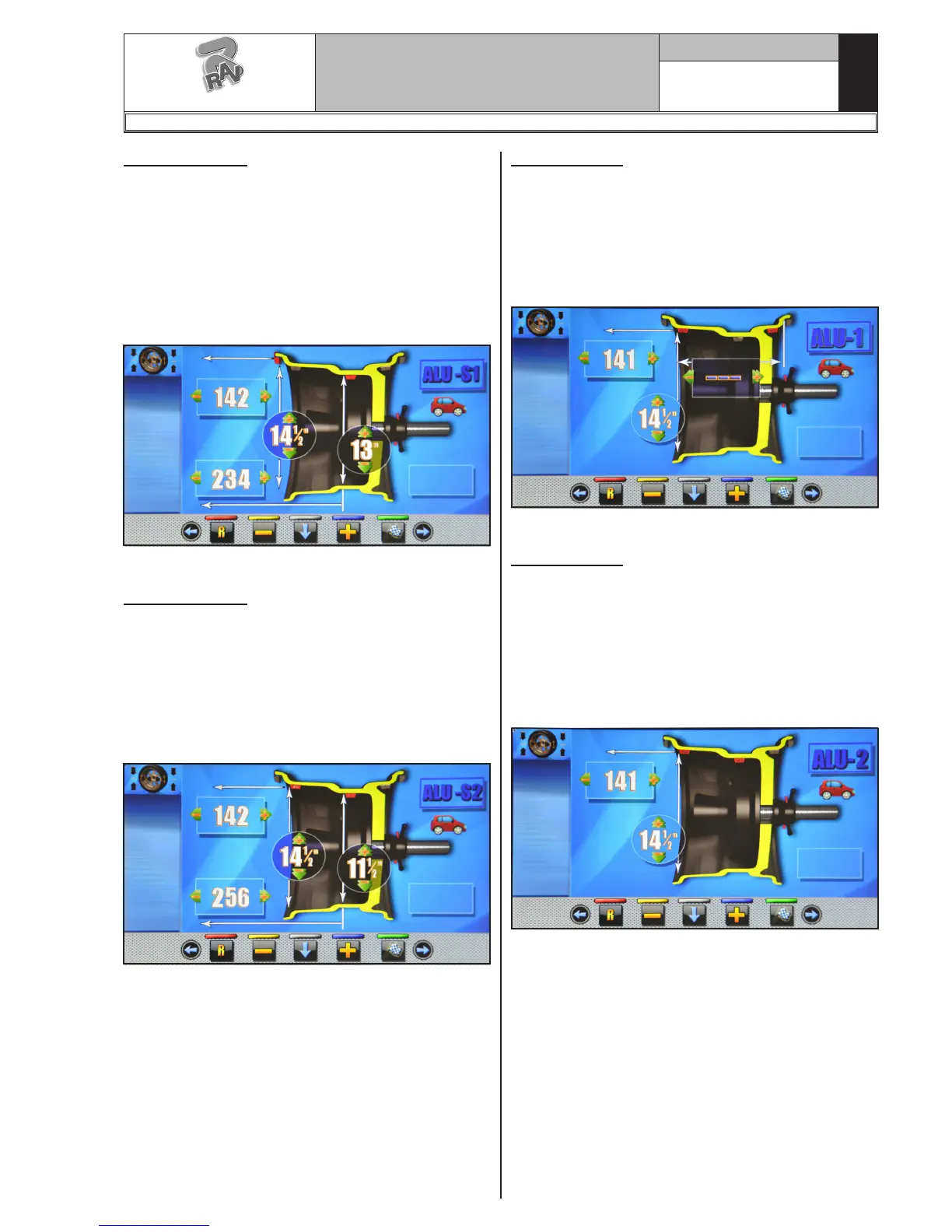

14.7.6 ALU-S1
The ALU-S1 function permits balancing wheels with
light alloy rims by fitting adhesive weights on the outer
side and weight with clip on inner side of wheel (at 12
o’ clock).
Enter the measurements (see Par. 14.2.1 or 14.6.1)
and proceed as described in Par. 14.5 (the inner weight
is with clip).
At the end of the procedure, the wheel balancing condi-
tions can be checked by performing a trial spin.
14.7.8 ALU-1
The ALU-1 function permits balancing wheels with light
alloy rims by fitting adhesive weights on the outer and
inner sides of the rim at 12 o’ clock.
Enter the measurements (see Par. 14.2.1 or 14.6.1)
and proceed as described in Par. 14.5.
At the end of the procedure, the wheel balancing condi-
tions can be checked by performing a trial spin.
The procedure has now been completed.
14.7.9 ALU-2
The ALU-2 function balances wheels with light alloy
rims by fitting adhesive weights on the outside and
inside of the rim. The position of the outer weight is
not visible but hidden inside. Enter the measurements
(see Par. 14.2.1 or 14.6.1) and proceed as for dynamic
unbalance.
At the end of the procedure, the wheel balancing condi-
tions can be checked by performing a trial spin.
The procedure has now been completed.
14.7.7 ALU-S2
The ALU-S2 function permits balancing wheels with
light alloy rims by fitting two adhesive weights: one on
the outer and one on inner sides of the rim (the inner
weight is at 12 o’ clock).
Enter the measurements (see Par. 14.2.1 or 14.6.1)
and proceed as described in Par. 14.5.
At the end of the procedure, the wheel balancing condi-
tions can be checked by performing a trial spin.
The procedure has now been completed.
The procedure has now been completed.
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
1297-M007-1_R
