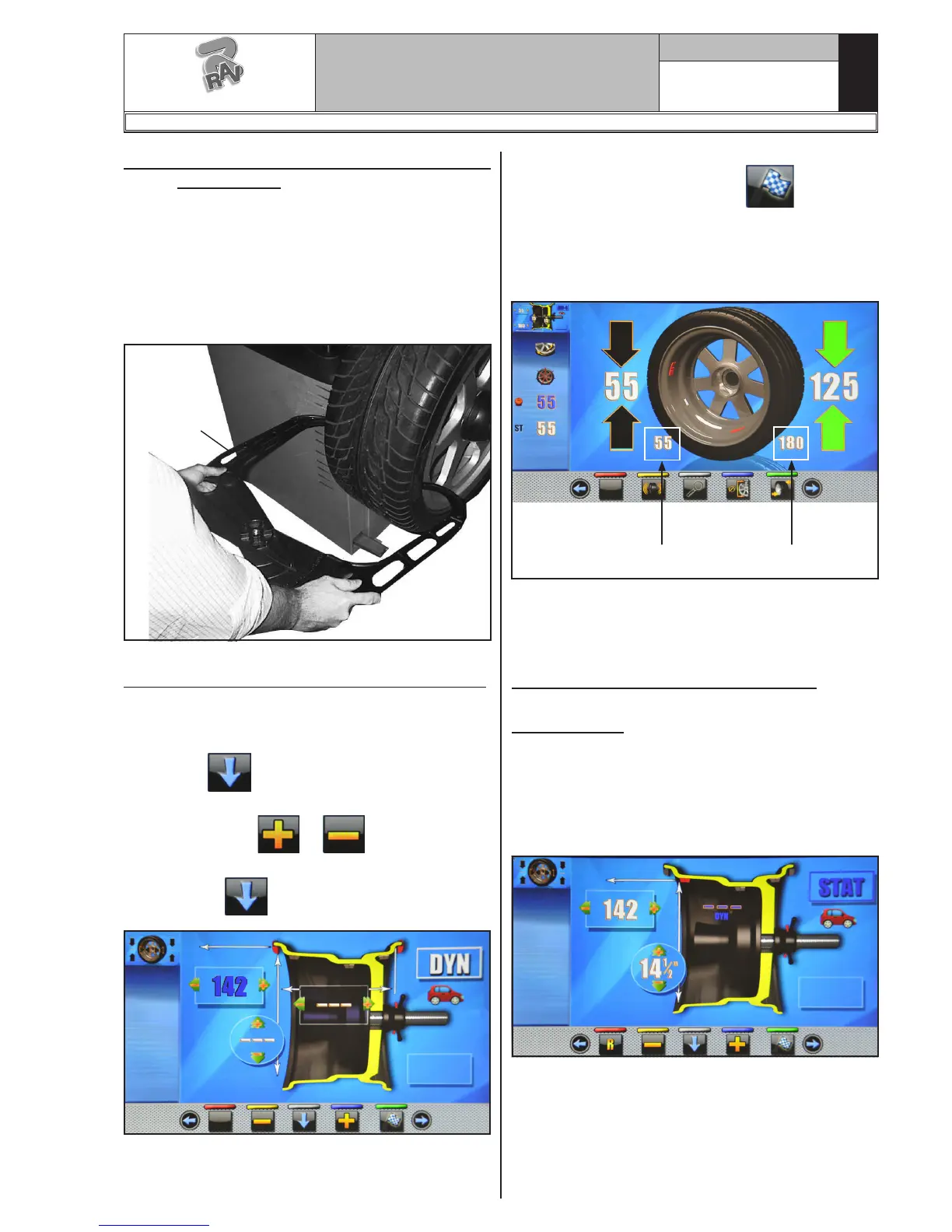

GB
Page 32 of 60
INSTRUCTION, USE AND
MAINTENANCE MANUAL
14.6 Use of machines with disabled auto-
matic gauge
The entry of diameter, width and distance measures
of the machine rim must be performed manually. The
reading of these measures can be made as follows:
- visual readout on caliper graduated scale (distance);
- values readout on rim (diameter and width);
- width value detection with manual caliper (width)
(see Fig. 47).
Fig. 47
MANUAL
CALIPER.
Width man-
ual
detection
14.6.1 Manual setting of wheel dimensions
In case the operator wants to edit and/or manually
enter the wheel dimensions, proceed as follows:
- from the desired measurement mode screen, press
the button until highlighting with blue the field
to modify/edit;
- press the buttons or until reaching the
desired value;
- press button to shift to the next value.
After entering all the required measures, you can spin
the wheel by pressing the button and closing
the protective guard.
NOTE: In case the distance-diameter caliper was disa-
bled, the displayed page for detected unbalance
is as follows:
In this screen page,in addition to the information of
the detected unbalance, there are measurements in
mm where you must remove the gauge arm (Fig. 48
ref._1-2) to apply the weights inside the rim.
14.7 Standard balancing programs
14.7.1 Static
The STATIC program permits balancing wheels by fit-
ting adhesive weights on the outer and inner sides of
the rim. Enter the measurements (see Par. 14.2.1 or
14.6.1) and proceed as described in Par. 14.5.
At the end of the procedure, the wheel balancing condi-
tions can be checked by performing a trial spin.
Fig. 48
1 2
The procedure has now been completed.
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
1297-M007-1_R
