INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 41 of 60

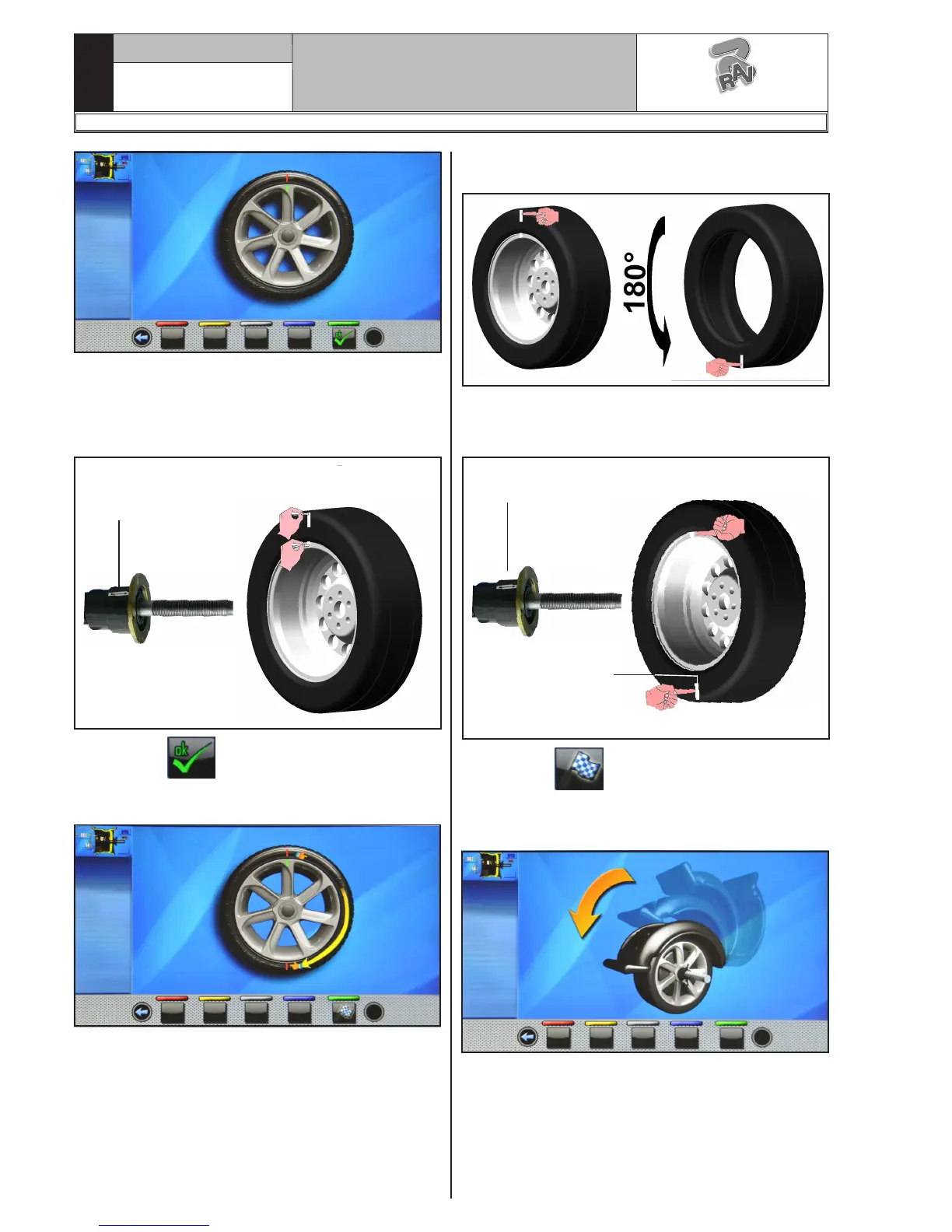

STEP 1. Move the slider on the flange to the "12 o'clock"
position. Make a reference mark, using chalk for in-
stance, on the rim and tyre, in line with the arrow on
the flange, so as to be able to fit the rim back on in the
same position on the machine.
Press button to confirm that step 1 has been
completed.
On the display the next screen page will be displayed:
Make a reference mark on the rim and tyre, in line
with the arrow on the flange
Fit the wheel back on the wheel balancer, positioning
the reference mark on the rim in line with the arrow
on the flange.
Position the reference mark on the rim in line with
the arrow on the flange.
Position the tyre ref-
erence mark on the
opposite side to the
arrow on the flange.
After having fitted wheel back in position, close the
protection guard to make an automatic wheel spin.
At the end of the spin the monitor will display the fol-
lowing screen:
STEP 2. Remove the wheel from the wheel balancer.
Remove the tyre and turn it on the rim by 180°.
Press button to confirm that step 2 has been
completed.
On the display the next screen page will be displayed
suggesting to perform a spin of the wheel.
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
