INSTRUCTION, USE AND
MAINTENANCE MANUAL
1
2
1
2

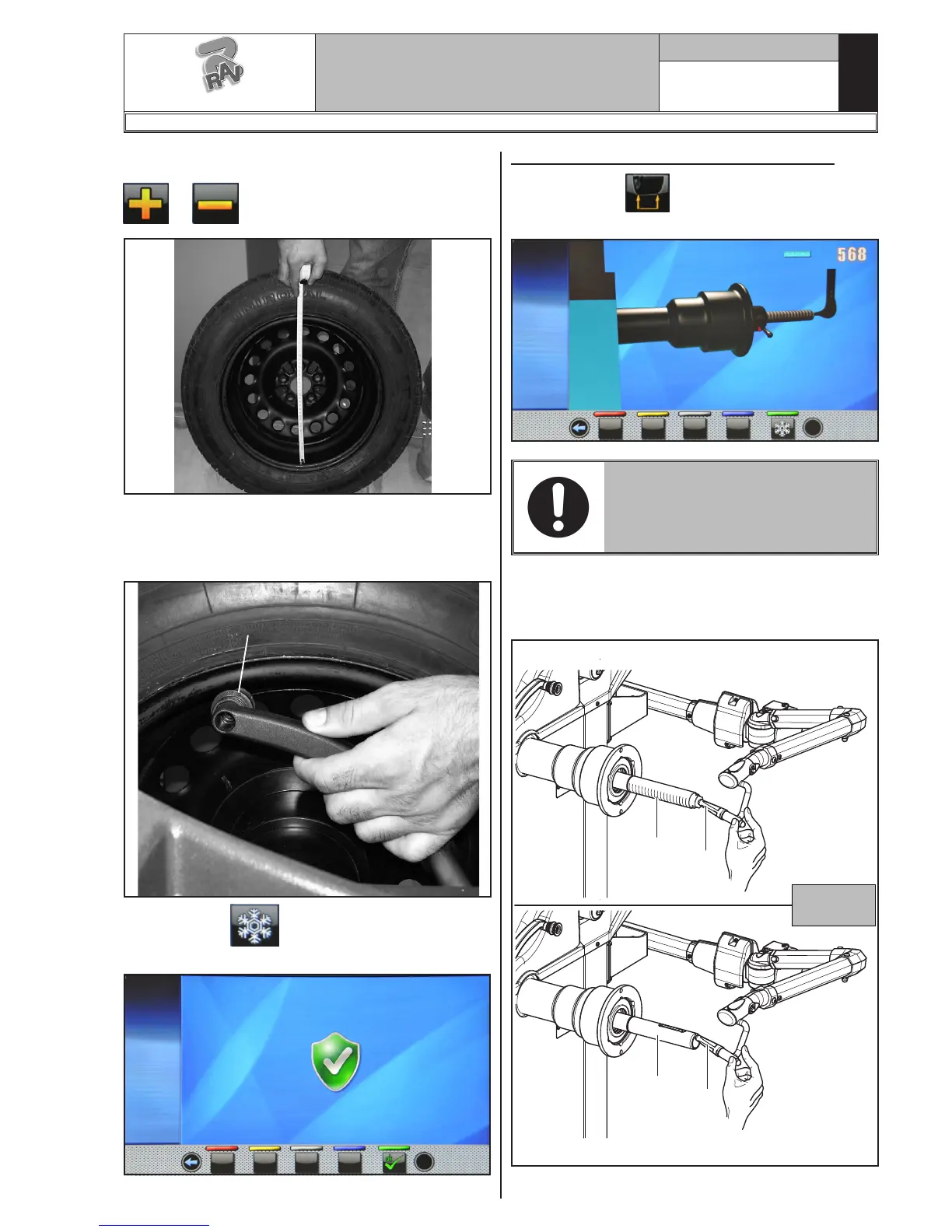

Measure the exact diameter of a rim (see Fig. 62) and
place it on the screen on the monitor by pressing the
or buttons.
Fig. 62
- Fit the measured wheel on the balancer and lock it
on the mandrel.
- Turn the gauge ferrule (Fig. 63 ref. 1) on the inner
edge of the wheel upwards (see Fig._63).
Fig. 63
1
- Press button to end the operation. On the
monitor the next screen page will be displayed:
The calibration of the distance-diameter caliper is
finished.
Calibration of external data gauge (optional)
Press the button to display the following screen
page on the monitor:
Fig. 64
SCREW MANDREL
PNEUMATIC MANDREL
GAR304
TO PERFORM THIS CALIBRATION,
THE SPINDLE MUST BE UNLOAD-
ED (NO WHEEL OR ACCESSORIES
MOUNTED ON IT) AND WITH
CLOSED PNEUMATIC MANDREL.
Move the tip of the width measuring device (Fig. 64-65
ref. 1) by the mandrel end (Fig. 64-65 ref. 2) (in case
of pneumatic mandrel, move it next to upper edge of
the closed mandrel).
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
1297-M007-1_R
