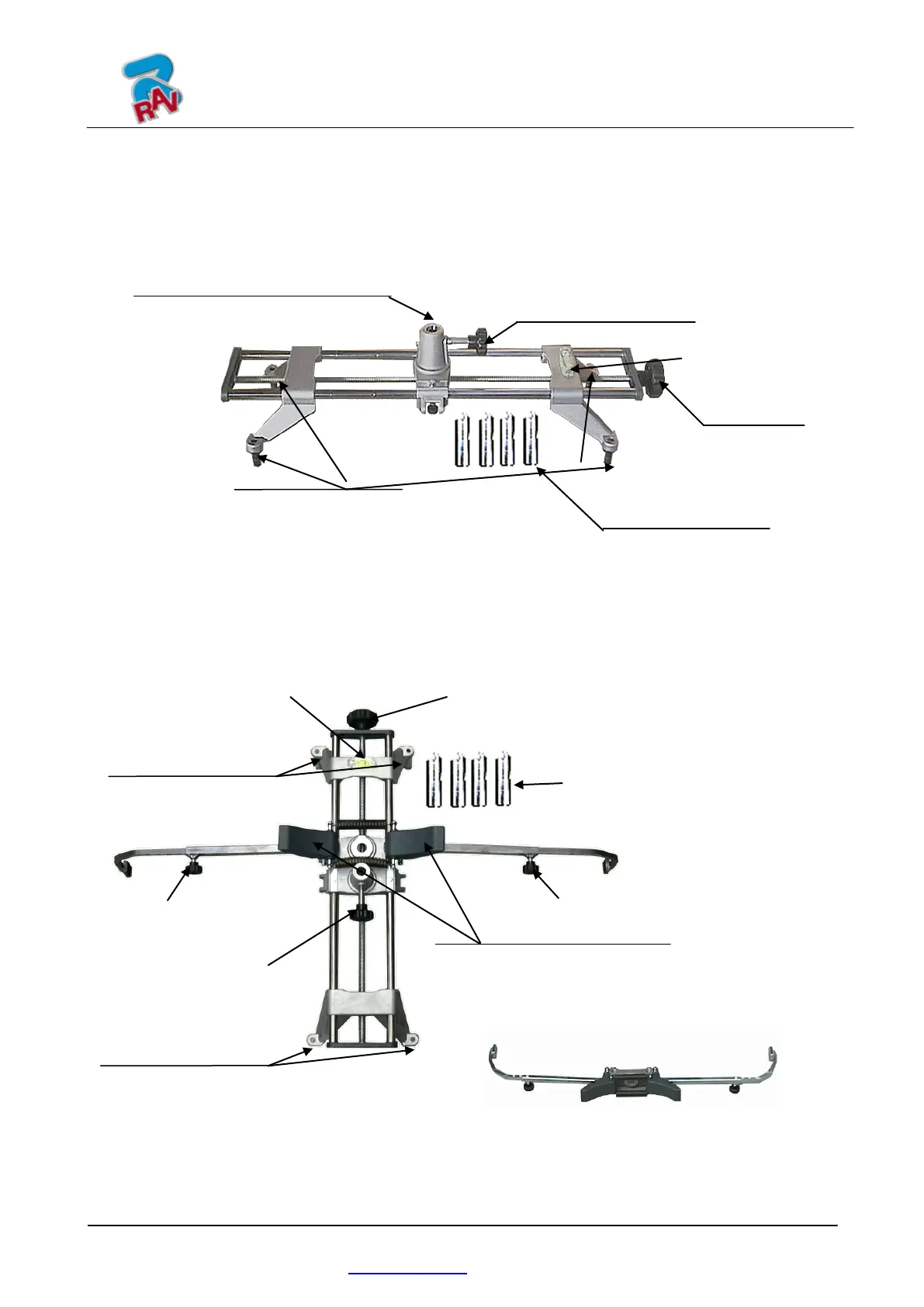

3.8 Wheel clamps
3.8.1 Wheel clamps STDA30E
The STDA30E are self-centring wheel clamps, screw type, for 12”-24”, complete with
removable claws.
Figure 6
3.8.2 Wheel clamps STDA48E
The STDA48E wheel clamps feature 4 claws for 12” to 24” rims complete with locking units,
and removable claws.
Figure 7
KNOB
TIPS WITH STEEL
CLAW
PINS FOR CLAW COUPLING
SENSOR PIN LOCKING KNOB
FLANGE FOR SENSOR COUPLING
ARM LOCKING KNOBS
ARM LOCKING KNOBS
KNOB
LEVEL
HANDLES FOR RAPID CLAMP
FASTENING ON WHEEL
LEVEL
PINS FOR CLAW COUPLING
SENSOR PIN
LOCKING KNOB
PINS FOR CLAW COUPLING
TIPS WITH STEEL
CLAW
LOCKING UNITS STDA55
The locking units STD A55 allows to convert
the standard wheel clamps STDA30E in wheel
clamps equivalent of STDA48E.
