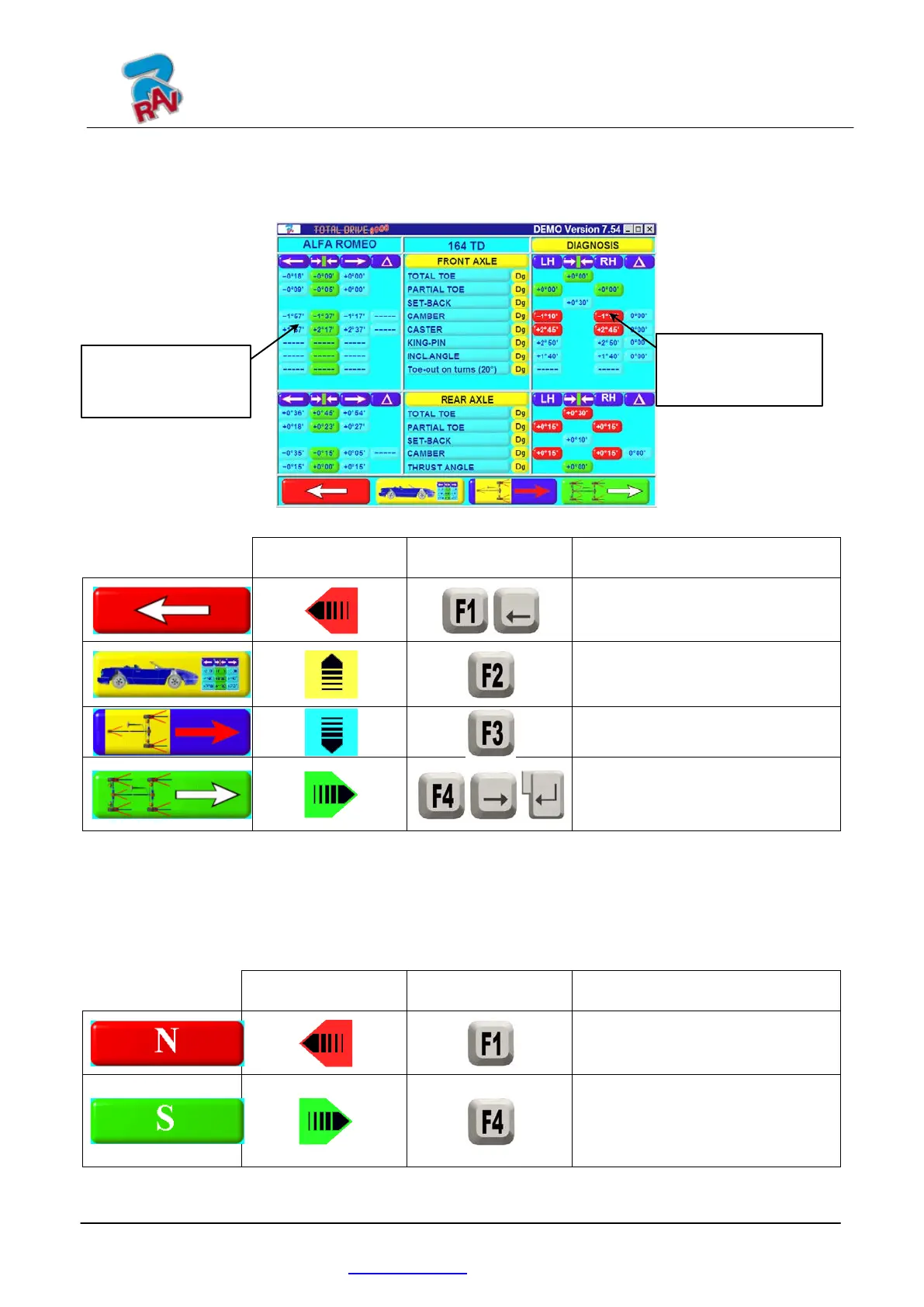

8.8 Vehicle testing
After performing the steering procedure (see para. 8.7 page 29), a test page is presented
showing a summary of the measurements taken on the vehicle. At this point, the vehicle can
be prepared for adjustment (see para. 8.9 page 31).
Figure 34
Repeat the steering procedure.
(para. 8.7 page 29)
Display the vehicle technical data
page.
(para. 8.3 page 23)
Select
Selection of “total adjustment”;
proceed with adjustment
preparation operations
(*) Front axle adjustment considering thrust angle: by selecting key F3 on the vehicle test
page (para. 8.8 page 30) a confirmation page appears.
At this point confirm whether you wish to proceed with adjustment of vehicle front axle only,
also considering the thrust angle, or return to the vehicle test phase and then proceed with
total adjustment. Once confirmation has been given, adjustment of the rear axle will no
longer be possible except by repeating the whole procedure.
Cancel. Return to vehicle test
phase.
(para. 8.8 page 30)
Confirm adjustment of front axle
only also considering the thrust
angle and proceed with
adjustment preparation
data provided by
the manufacturer
test data
