8.3 Displaying the technical details of the selected vehicle
When a vehicle is selected (see para. 8.2 page 22), the display page appears with the
measurements and tolerances provided by the manufacturer.

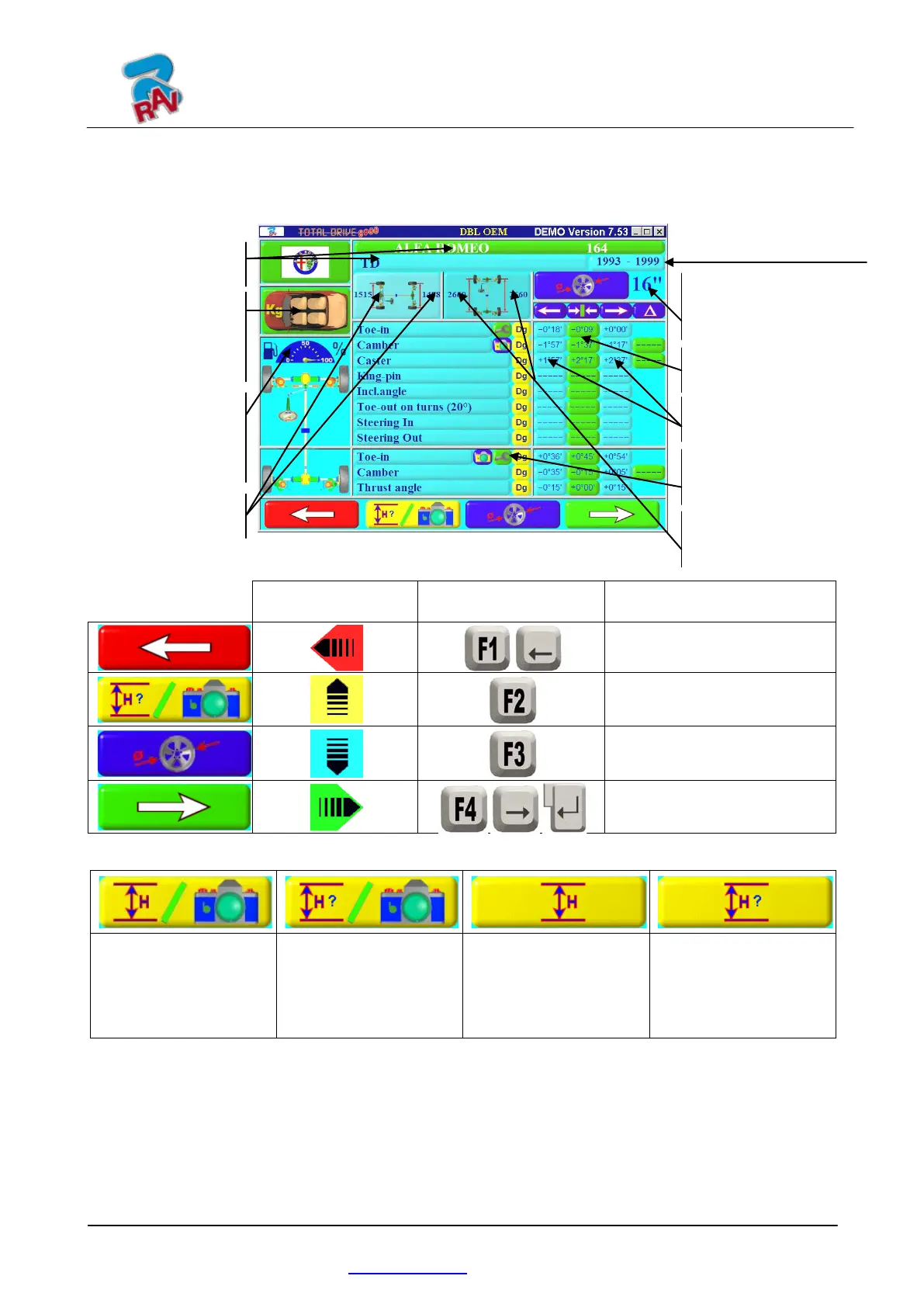

Figure 27
SENSOR
KEYBOARD
PC KEYBOARD
DESCRIPTION
Return to vehicle selection
(para. 8.2 page 22)
See
(*) Key description
Rim diameter varies
Proceed to perform
preliminary operations
(para. 8.4 page 24)
(*) Key description
Possibility of seeing
graphic images and
entering chassis height
or angle data as
envisaged by the
manufacturer
Possibility of seeing
graphic images and
entering chassis height
data without reference
to the manufacturer
Possibility of entering
chassis height or angle
data, as envisaged by
the manufacturer
Possibility of entering
chassis height data,
without reference to the
manufacturer
MAKE AND MODEL OF
SELECTED VEHICLE
YEAR OF VEHICLE
PRODUCTION START AND
STOP
DIAMETER OF VEHICLE RIM
SUPPLIED AS STANDARD
BY THE MANUFACTURER
NOMINAL SPECIFIC
MEASUREMENT
TOLERANCE
MIN AND MAX
TOLERANCES
POSSIBILITY OF
ADUSTMENT FOR
SPECIFIC
MEASUREMENT
WEIGHT DISTRIBUTION
ON THE VEHICLE AT
THE TIME OF
MEASUREMENT AND
ADJUSTMENT
REQUIRED TANK
CONDITION AT TIME OF
MEASUREMENT AND
ADJUSTMENT OPERATIONS
FRONT AND REAR WHEEL
BASE MEASUREMENT
MEASUREMENT OF
RIGHT AND LEFT
WHEEL BASE
