8.4.3 Run Out - wheel raised
The run out procedure is useful for offsetting any rim and wheel clamp unbalance. This
procedure need not necessarily be done by selecting key F4.
This procedure can also be started after adjusting the vehicle by selecting the specific menu
option.
To perform the run out procedure, preparations must have been made as explained in para.
8.4.2 page 24.

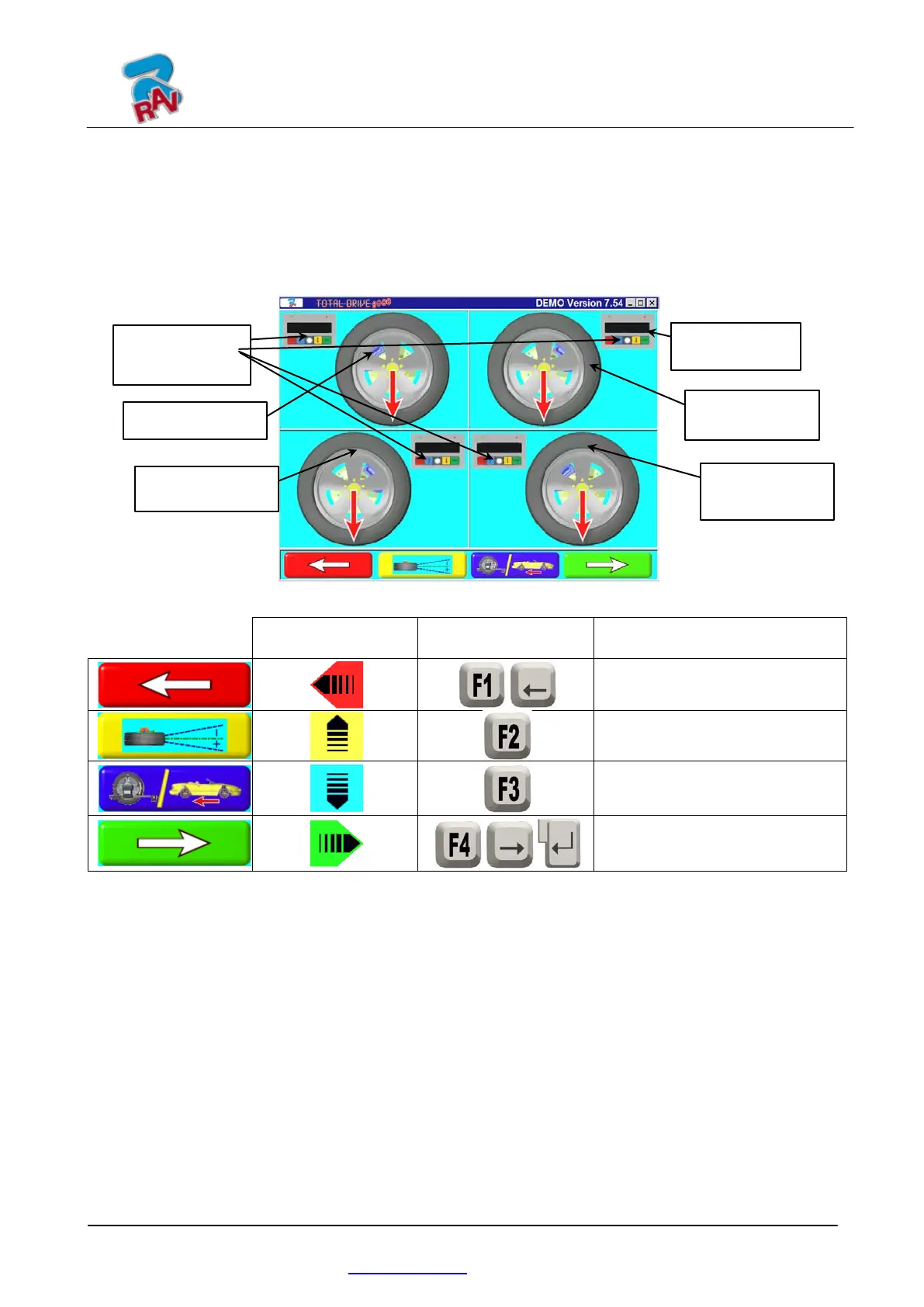

Figure 29
SENS.
KEYBOARD
PC KEYBOARD
DESCRIPTION
Return to run out preparation
(para. 8.4.2 page 24)
Key for recalling the pre-
adjustment procedure
Select run out “push” or “wheel
raised”
Performs measurement
preparation
(para 8.5. page 27)
It is always best to follow the visual instructions that appear on the screen.
The knobs of the wheel clamps are indicated by the red colour to show these should be
turned downwards. The procedure should be performed on all four wheels; on the monitor,
the centre keys of the sensors flash to suggest beginning the procedure by pressing the
specific key. There is no need to start with any specific wheel, nor operate in any specific
wheel sequence.
Flashing centre
keys
Front left wheel
Left rear wheel
Sensor
keyboard
Right front
wheel
Right rear
wheel
