8 TESTING AND ADJUSTING A LIGHT VEHICLE
The testing and adjusting of light vehicles is possible with all models of aligners, but it is
necessary special clamps for cars. It is also possible to carry out alignment with STDA30E
clamps, but mounting them as illustrated in the para. 3.8.4.
The RAV TD8080TWSR/8060TWSR model (lower arms) could be used also to make testing
and adjusting of light vehicles, but only having big wheels (diam. > 760mm).
8.1 Presentation page
When the machine is switched on (see para. 4.1 Page 15] the initial program display page
appears, from where the different functions can be selected.

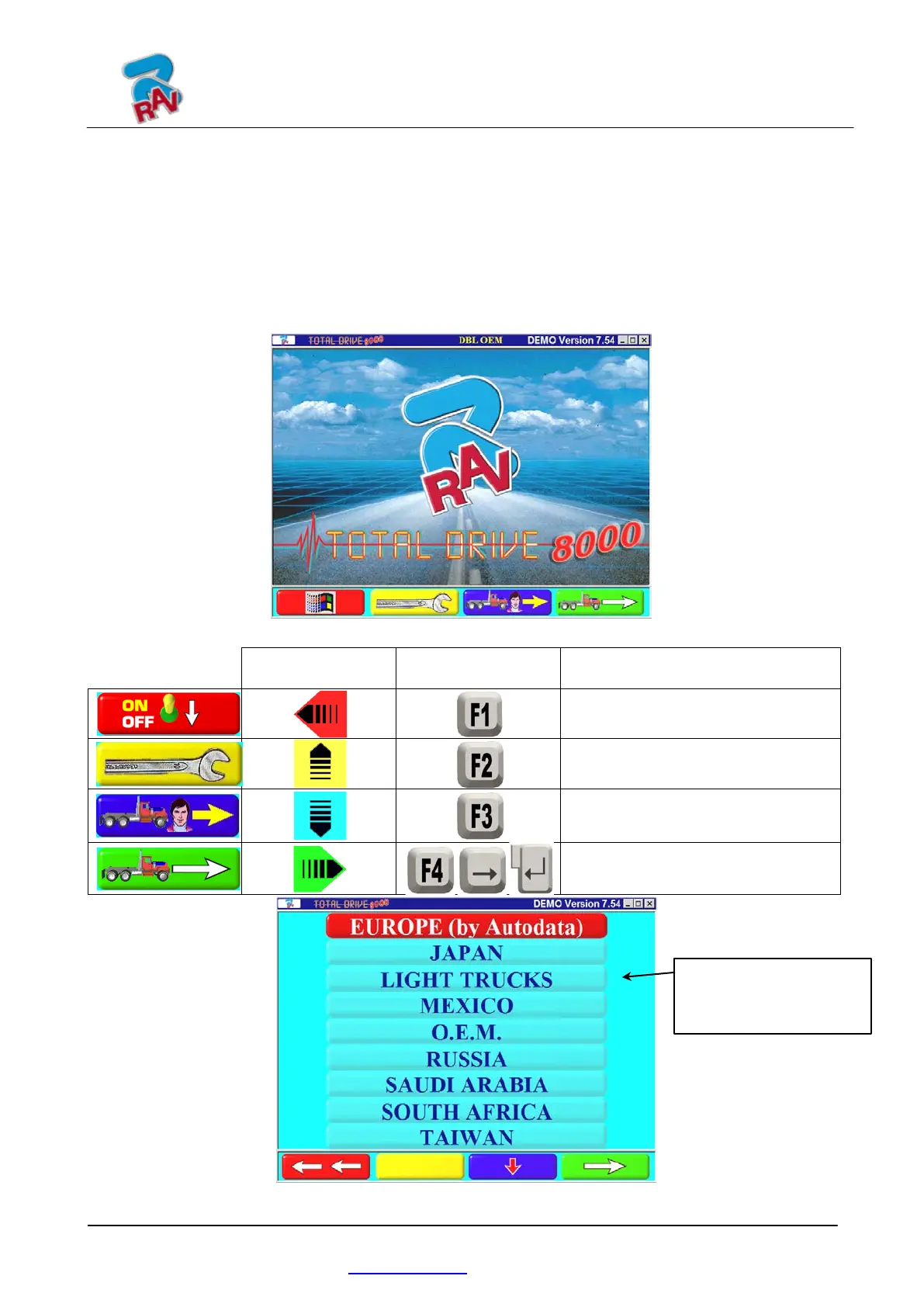

Figure 24
SENSOR
KEYBOARD
PC KEYBOARD
DESCRIPTION
Switches off the machine
(para. 4.2 page 15)
Program configuration
Accesses client database
Selects list with
different databank
profiles (para. 7.1 page 18]
Figure 25
List with different
databank profiles
(para. 7.1 on page 18)
