INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
Page 27/ 64
8.5 Preparing for measurements
Block the brake pedal using the piece of equipment provided. After performing the run out
procedure, as explained in para. 8.4.3 on page 25, the vehicle must be prepared for

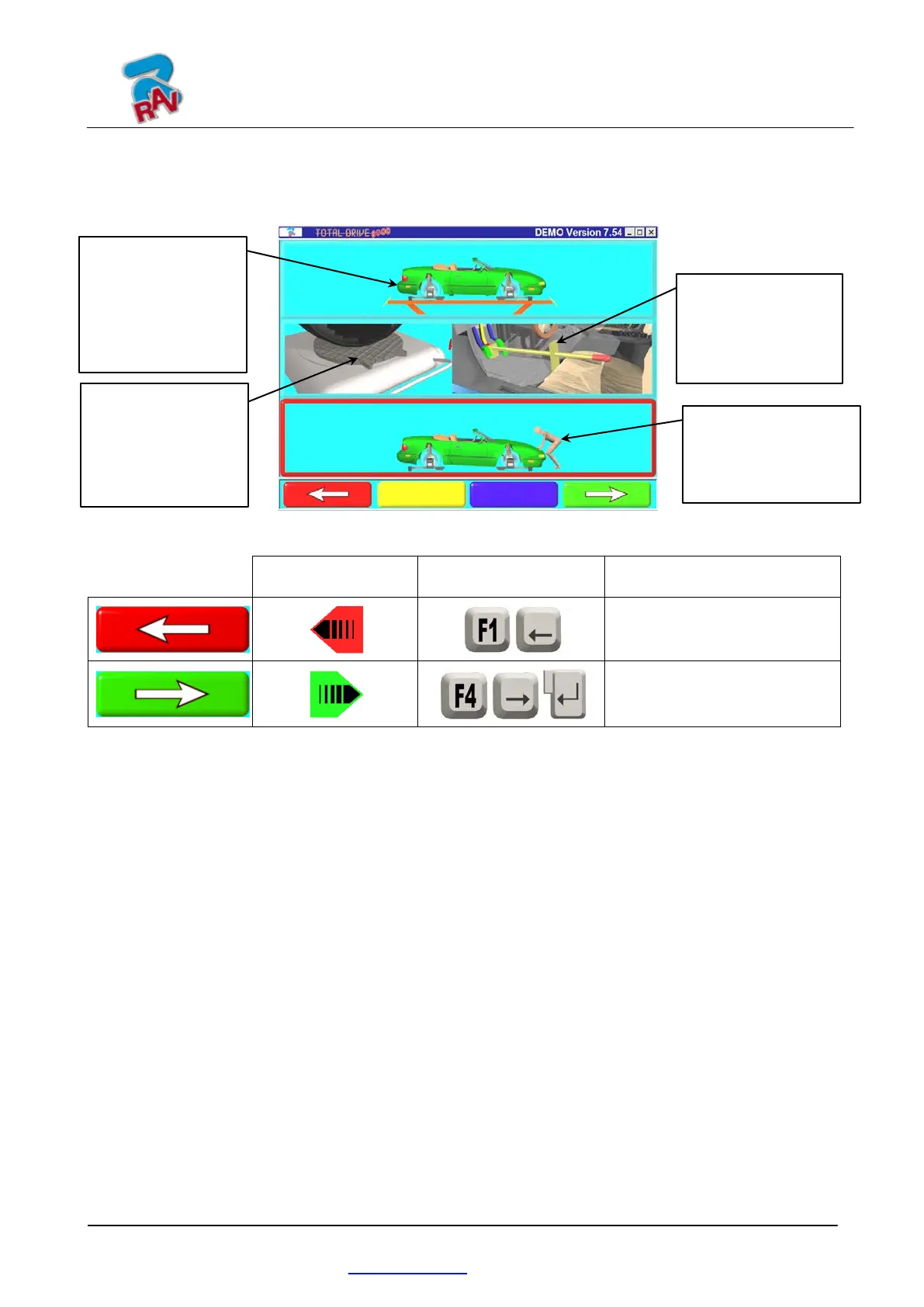

measuring. The following display page will appear:
Figure 31
SENS.
KEYBOARD
PC KEYBOARD
DESCRIPTION
Return to run out procedure
(para. 8.4.3 page 25)
Continue with alignment
procedure
(para. 8.6 page 28)
NOTE: If wheel alignment is beyond ± 2°06’, when key “F4” is pressed, the pre-registration
page is automatically accessed. The linkages must be registered so that alignment
features angles < 2.06°.
Steady the vehicle
at the front and
rear
Lock the brake
pedal using the
tool provided.
Lower the vehicle
so the wheels rest
on the lift
platforms
Release the front
plates and any
rear platforms
