8.14 Printing of measurements taken
By selecting the following key on the data entering page, the following display
page appears:

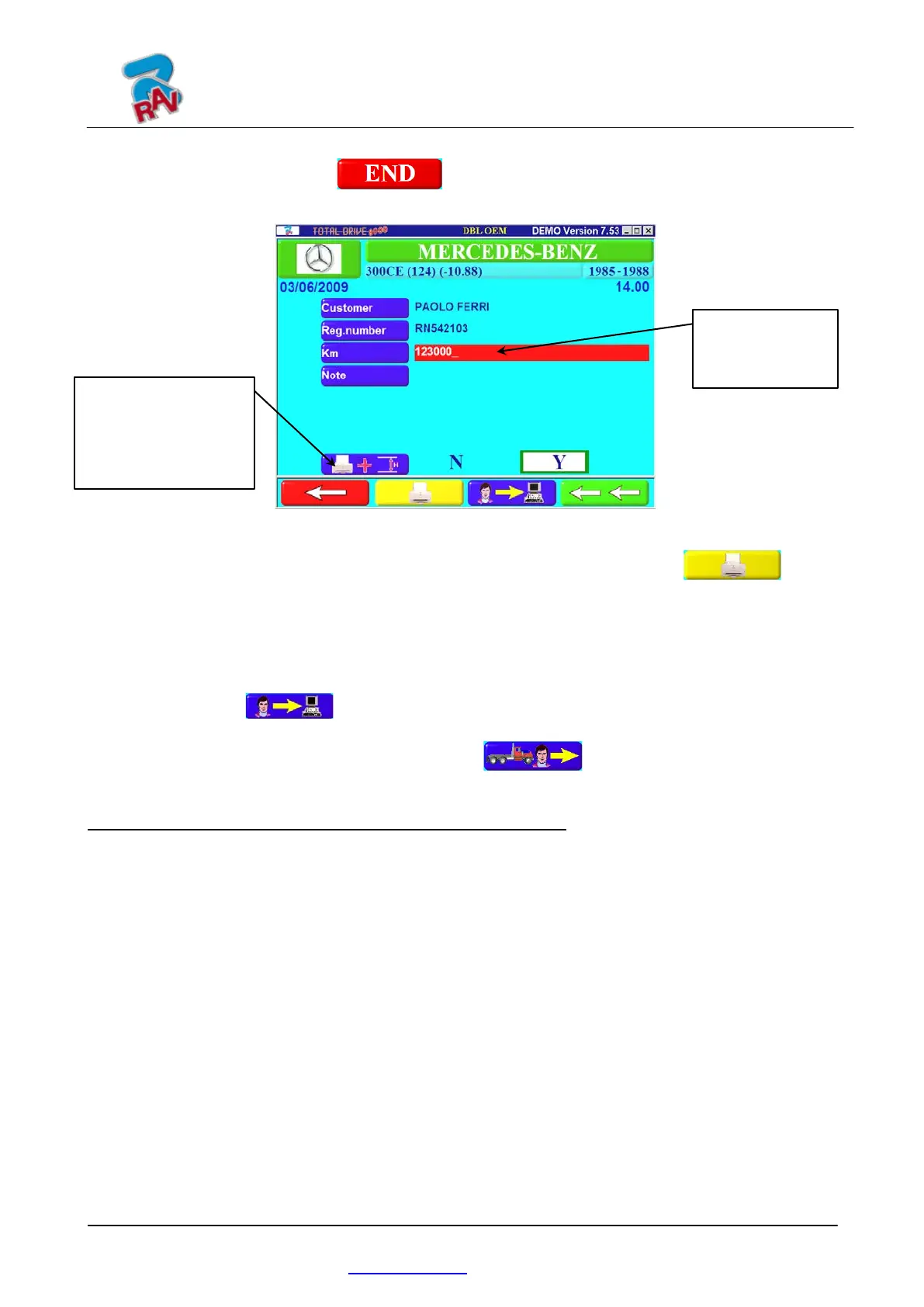

Figure 40
After confirmation of the client data entering page, by pressing key F2 a test
report is printed comprising client data, vehicle data before and after adjustment, the
technical data of the vehicle provided by the manufacturer and any notes for the client.
If any chassis height or camber measurements have been made for the vehicle, an additional
page can be printed showing "Y" (Yes) on the line provided for this setting. (See above
illustration).
By pressing key
F3 , the test performed can be “saved” in a special
client databank” to be opened subsequently.
To access the data in the client databank, press F3
from the initial page Figure 24)
Key of printout example shown on previous page (Figure 41
]
1 -
RAVAGLIOLI manufacturer’s logo
2 -
Space for personalising workshop data
3 -
Automatically processed time of start and finish of test
4 -
Tested vehicle and owner identification details
5 -
Factory details of vehicle being tested
6 -
Vehicle testing data
7 -
Tested vehicle data after adjustment
8 -
Front axle data table
9 -
Rear axle data table
10 -
Space for notes that can be entered manually
Setting YES/NO
printing additional
chassis
heights/camber
page
Entering
vehicle and
client data
