8.4.4 Run out - Push
Set the “PUSH run-out” during “preparing of RUN-OUT” phase by the key F3 .

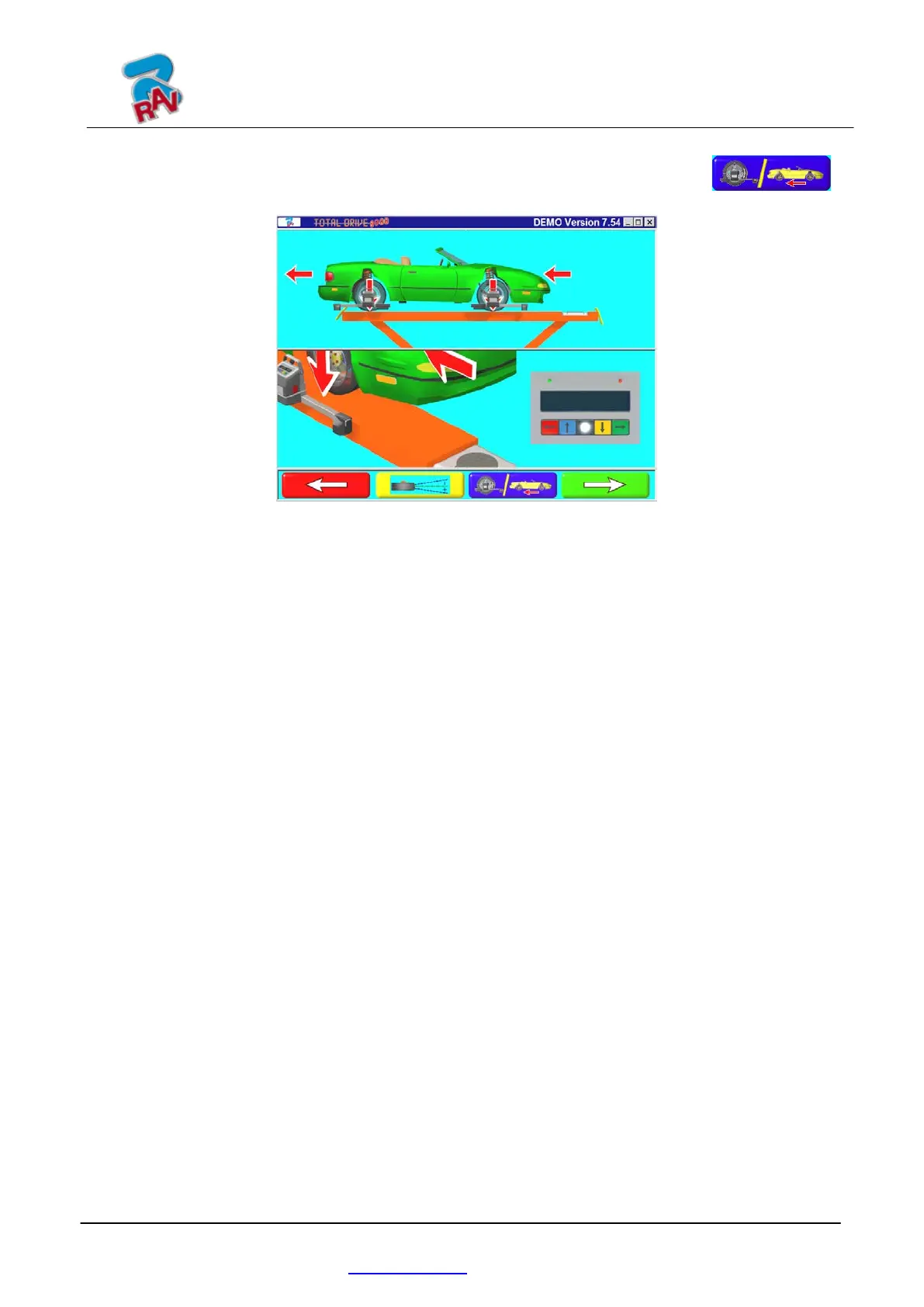

The following display page appears:
Figure 30
Release the sensors so they are free to swing along with wheel movement. Move the vehicle
back, allowing the wheel to rotate by 180°. As a point of reference, take the knobs of the
wheel clamps which, before rotation starts, should be turned upwards. After pushing the
vehicle back by one half wheel turn, wait for the sensors to stop swinging and press the
centre key of the keyboard of a sensor. The message “STOP” will appear for about three
seconds, meaning the time necessary for the program to acquire the measurements.
At this point, rotate the wheel forwards by 180°. The wheel clamp knobs will again be turned
upwards. After pushing the vehicle forwards by a half wheel turn, wait for the sensors to stop
swinging and press the centre key of the keyboard of a sensor.
The “STOP” message will again appear and the measurements are acquired. The push run
out procedures has been performed.
To repeat the operation, once ahead with the program, it is possible to return to this page by
pressing key F1 and repeating the above operations.
When the run out has been performed, the program automatically goes on to the next stage.
