INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
Page 14/64
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

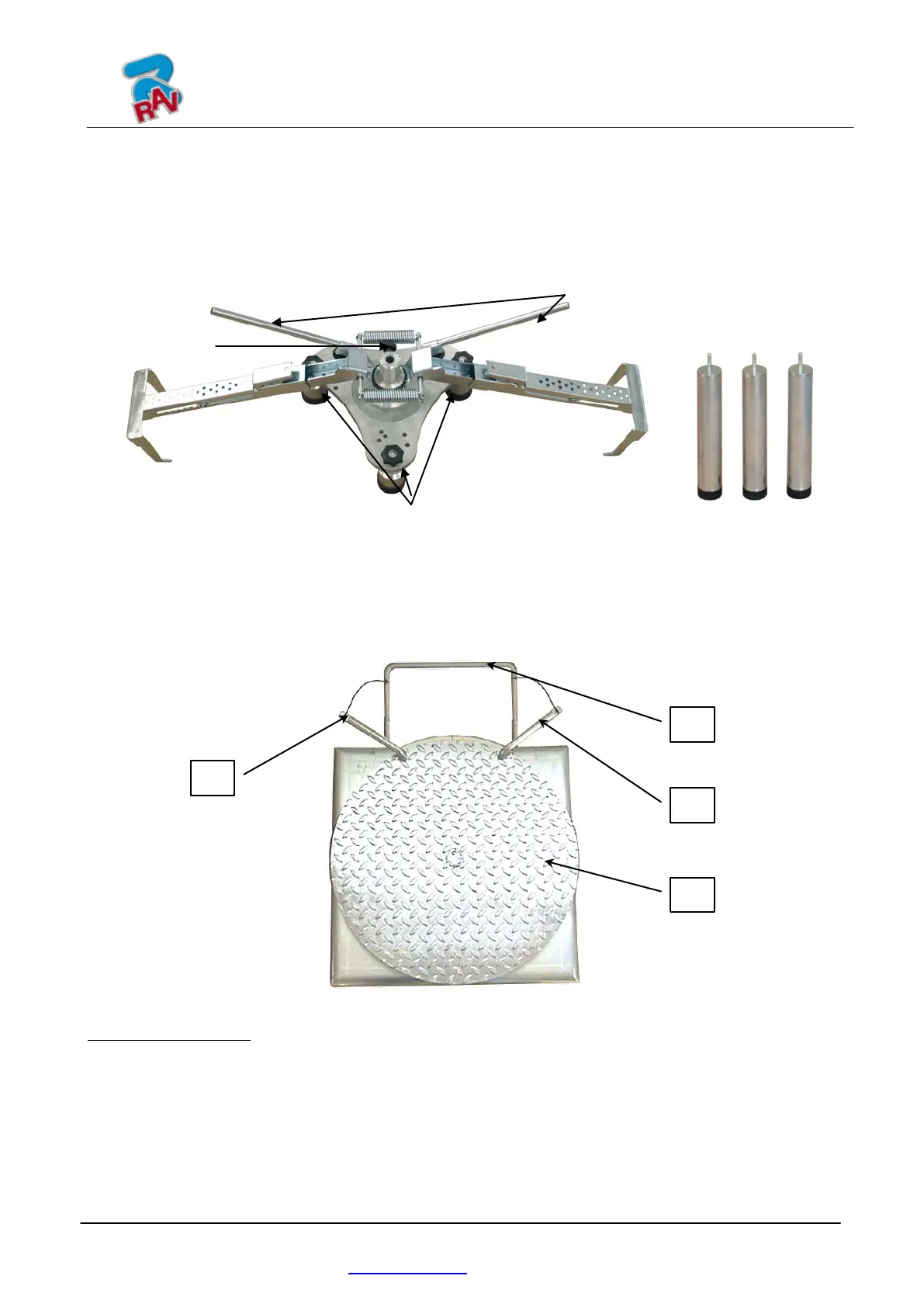

3.8.5 Wheel clamps STDA92E
Special NON Run-out compensation wheel clamps, by referencing the wheel center which
is almost perfectly accurate, it can deliver a more accurate measurement without need
to raise each wheel position to perform Run-out compensation
Each pair of clamps includes: 6 short adapters and 6 long adapters
3.9 TURNPLATES
3.9.1 Turnplates STDA29E for trucks
The turnplates STDA29E have a capacity of 7000 kg.
Figure 11
Legend of Figure 11:
1 -
Plate handle
2 -
Plate stop
3 -
Upper plate with anti-drip disc
1
3
2
2
SHORT ADAPTERS
LONG ADAPTERS
HANDLES FOR RAPID CLAMP
FASTENING ON WHEEL
SENSOR PIN
LOCKING KNOB
