8.4 Preliminary operations
8.4.1 Preliminary vehicle control operations
Before starting the check the geometric setup of a vehicle, the following checks must be
made:
• Check and if necessary eliminate any play on the suspensions and steering linkages
• Check and if necessary eliminate any possible hardening or give of the elastic suspension parts
• Adjust the pressure of the tyres to those indicated by the manufacturer.
• Position and share out any loads as required by the manufacturer.
8.4.2 Preparing for run out
After displaying the vehicle technical data page (see para. 8.3 page 23), proceed to prepare
the vehicle for the run out procedure as follows:
- Fit wheel clamps and sensors on the wheels
- Lift the vehicle off the lift platforms (if were carried out the raised wheels Run-out)
- Block the turnplates

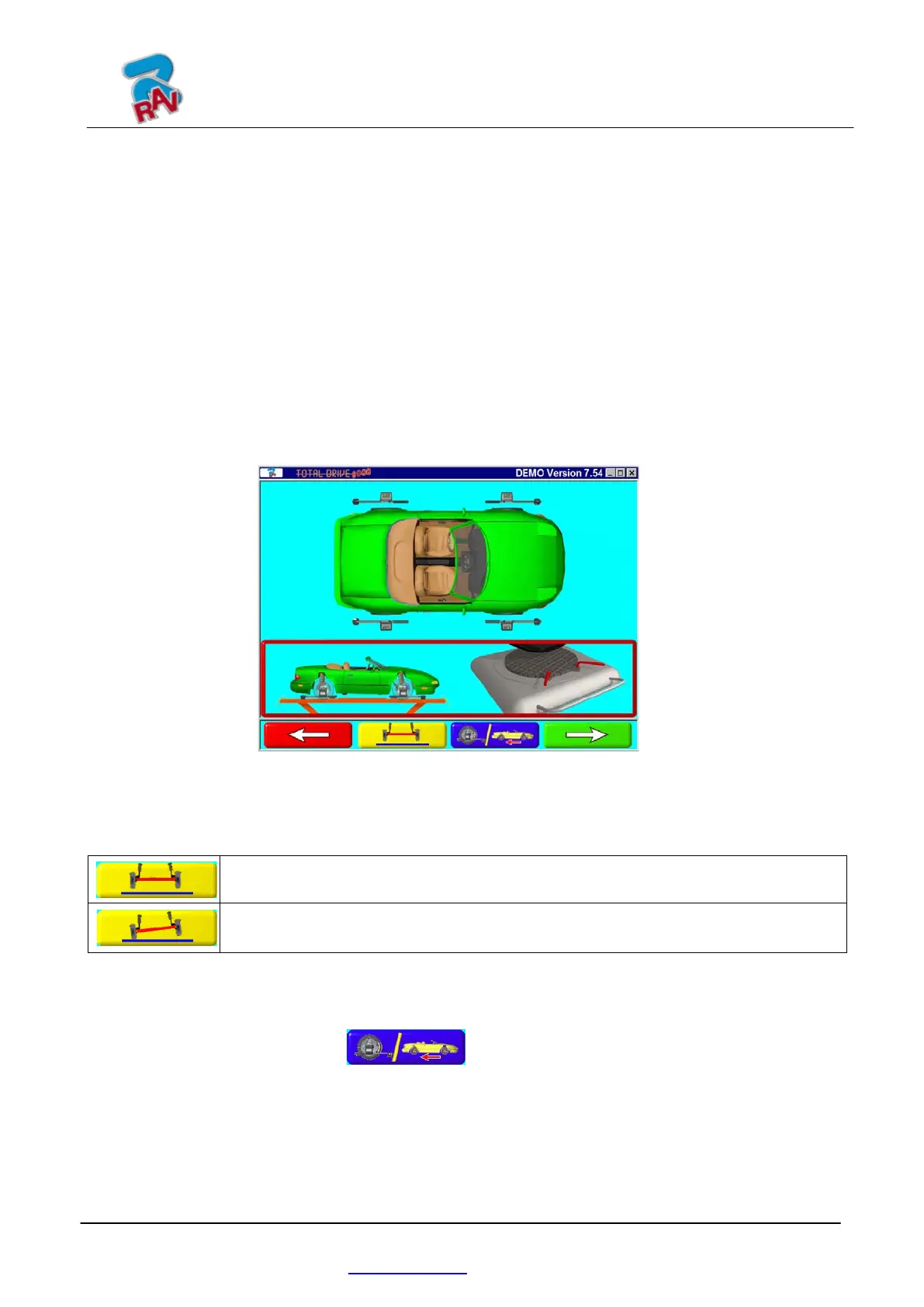

Figure 28
The F2 key indicated in Figure 28 select the mode of how the car is raised in comparison to
the lift or floor; by press it change appearance, the meaning is as follow:
The two wheels of a same axle are lifted at the same time
Only one wheel is lifted at a time with respect to the opposite wheel of the same axle
In car mode is also possible to select the “PUSH run-out”, setting it during “preparing of
RUN-OUT” phase by the key F3 .
