RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

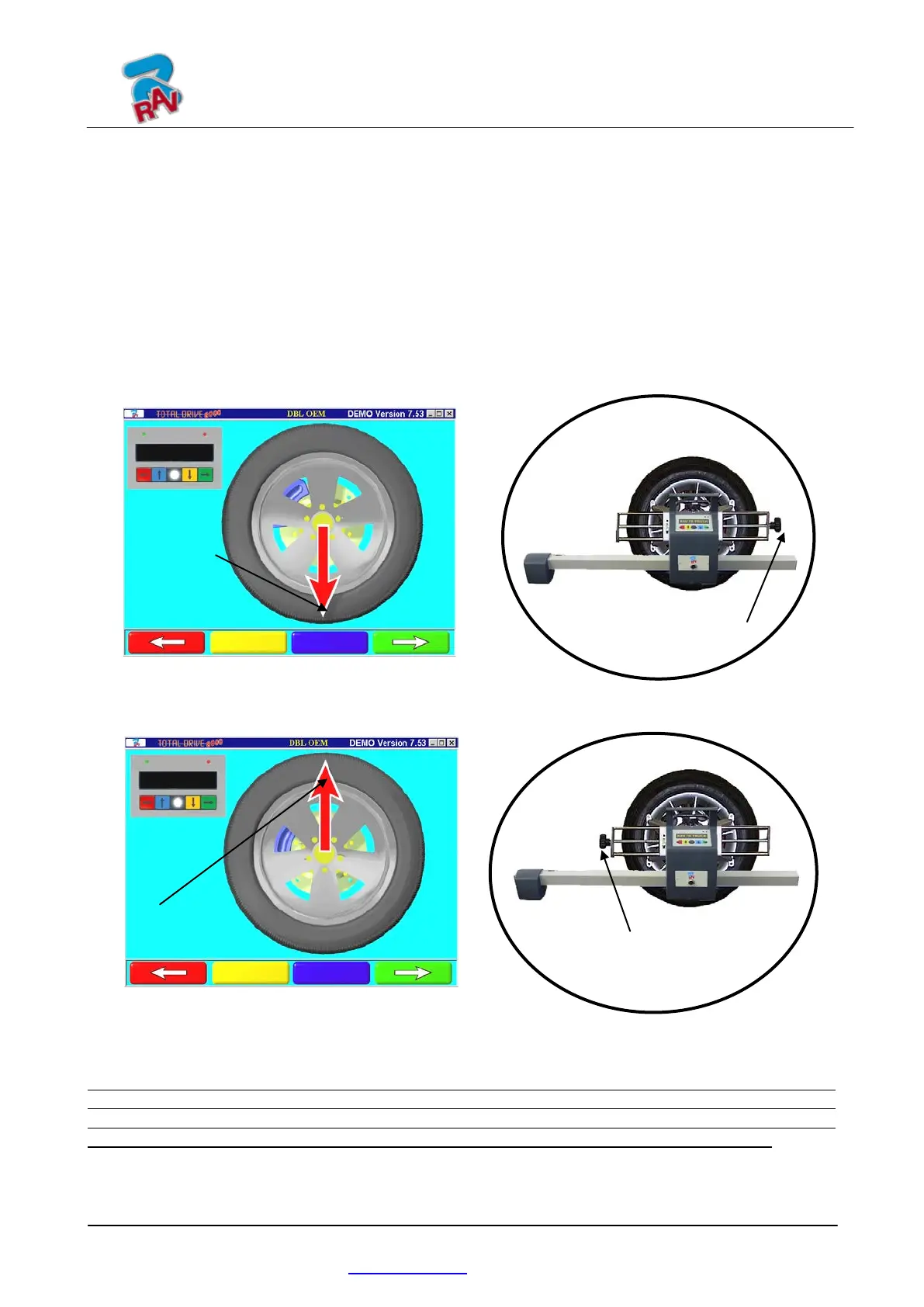

3.8.4 Run out for vehicles with clamp STDA30E
In the event of the operator wishing to use the truck wheel clamps STDA30E on a motor-
vehicle, great care must be taken as these are very long compared to the vehicle clamps . At
the end of the run out procedure and when lowering the wheels, the clamp could touch the
floor and consequently move or break thus affecting the result of the following tests.
During the run our procedure, the screen shows an instruction to turn the wheel, taking as
reference the knob, indicated by the flashing point.
By following this procedure, the run out terminates with the clamp in vertical position (knob
at top) and the clamp touches the floor when lowering the wheels.
To prevent this, take as turning reference not the knob but a point of the wheel shifted by 90°
with respect to the knob (see Figure 9 and Figure 10), so the procedure terminates with the
clamp in horizontal position.
Figure 9
- Turn the wheel by 180° (knob position TOWARDS THE LEFT). Press the centre key of the
measuring head. Acquisition of measurements.
Figure 10
NOTE: The wheel clamps must all be horizontal when lowering the vehicle, once the run out
procedure has terminated.
This way, during the measuring head ALIGNMENT AND LEVELLING STAGE, it will not be
possible to level the clamps, but if clamps STDA30E (para. 3.8.1 on page 11) are used on a
vehicle it will NEVER be necessary to shift the movable crosspiece of the clamp downwards
because the size of the wheels of a vehicle will never block the measuring head signal.
shows on the screen
for the knob position
Position the knob
TOWARDS THE RIGHT
Position the knob
on the screen for the
knob position
