USER MANUAL – RCS
Heftruck
DC
Indicator
DC
3,15 A
Stekker accu truck
Optioneel
Elektrische truck
Filter
Omvormer
+
-
+12 V
_
Black
Red
Blue
Brown
EU
US
omvormer
filter
Stekker
Zekering
3,15 A
Accu
elektrische vorkheftruck
Indicator

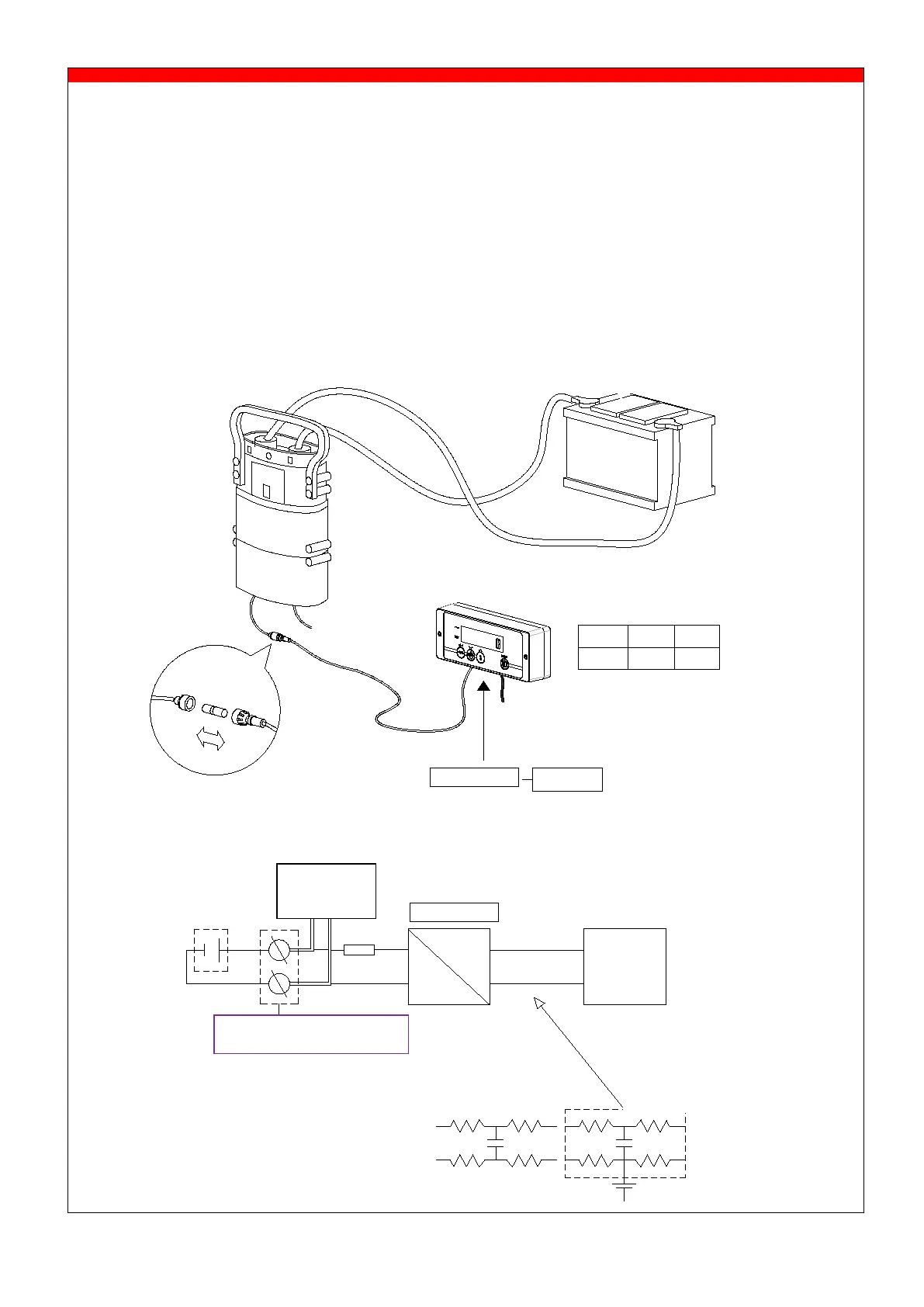

12.1.3 Connection to electric forklifts
Connect the power supply to the battery as close as possible to, but not directly on, the battery and
not in front of a main breaker.
Connect the red wire (indirectly: with plug in between) with the positive energy source (plus pole of the
battery) of the forklift.
Connect the black wire (indirectly: with plug in between) to the negative power source (negative pole
of the battery) of the lift truck.
Make sure the wire connectors are sufficiently isolated from each other.
Connect the battery back on the fork-lift truck
.
Battery electrical forklift
truck
