USER MANUAL – RCS
+
-
+12 V
_
Black
Red
Blue
Brown
EU
US

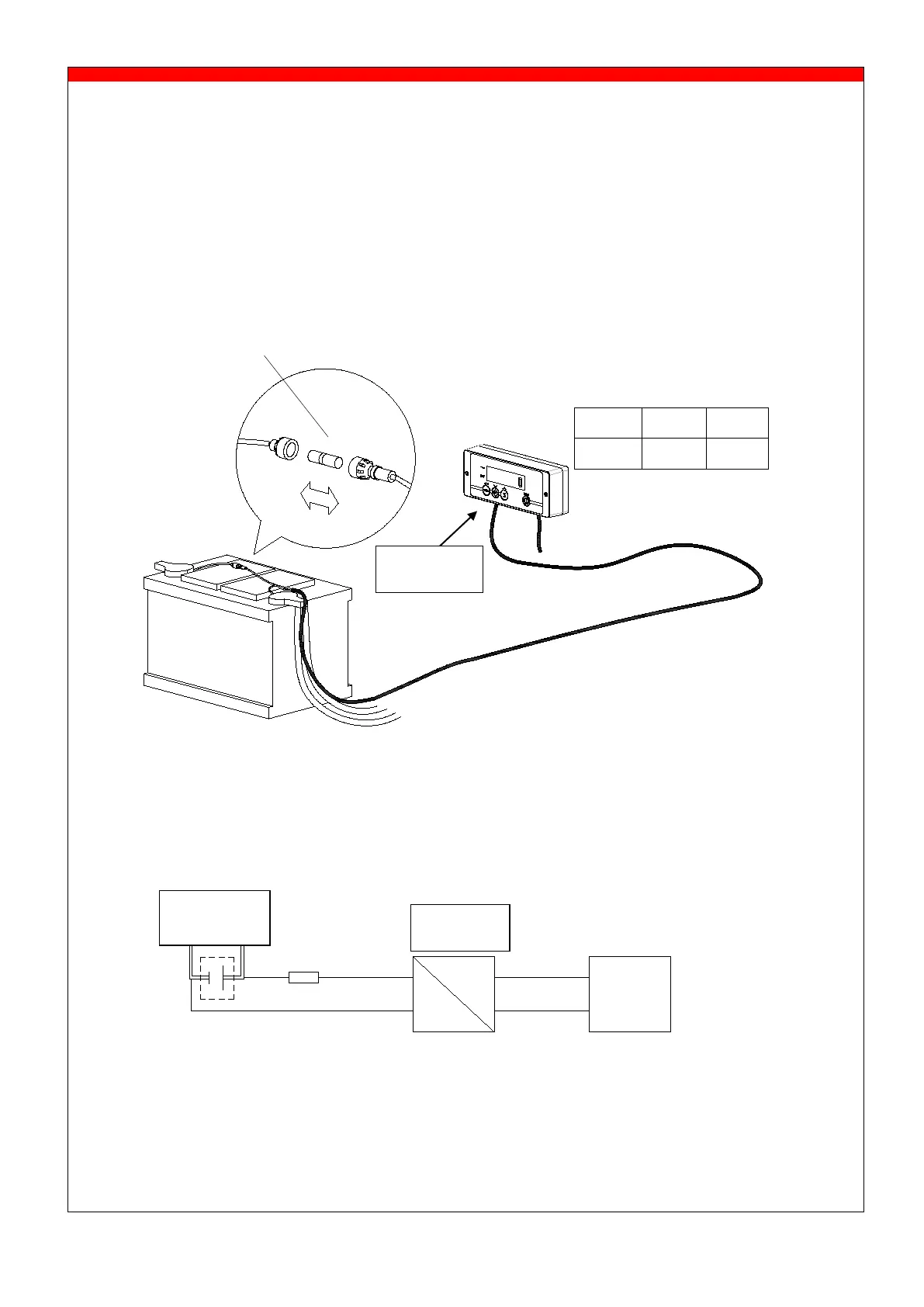

12.1.4 Connection to gasoline, diesel or propane forklifts
Connect the power supply as close as possible to the battery and avoid the use of the existing wiring.
Connect the red wire to the positive energy source ( plus pole of the battery) of the pallet truck.
Connect the black wire to the negative energy source (negative pole of the battery) of the pallet truck.
Make sure the wire connectors are sufficiently isolated from each other.
Connect the battery back on the fork-lift truck.
Read the label on the backside of the indicator for the right power supply.
Voltage regulator (inside) + = 12 VDC
Voltage converter (inside) + = 20-100VDC
12 V wiring
Forklift battery power supply
Heftruck
3,15 A
DC
DC
Indicator
Brandstof truck
Omvormer
Zekering
