Chapter5

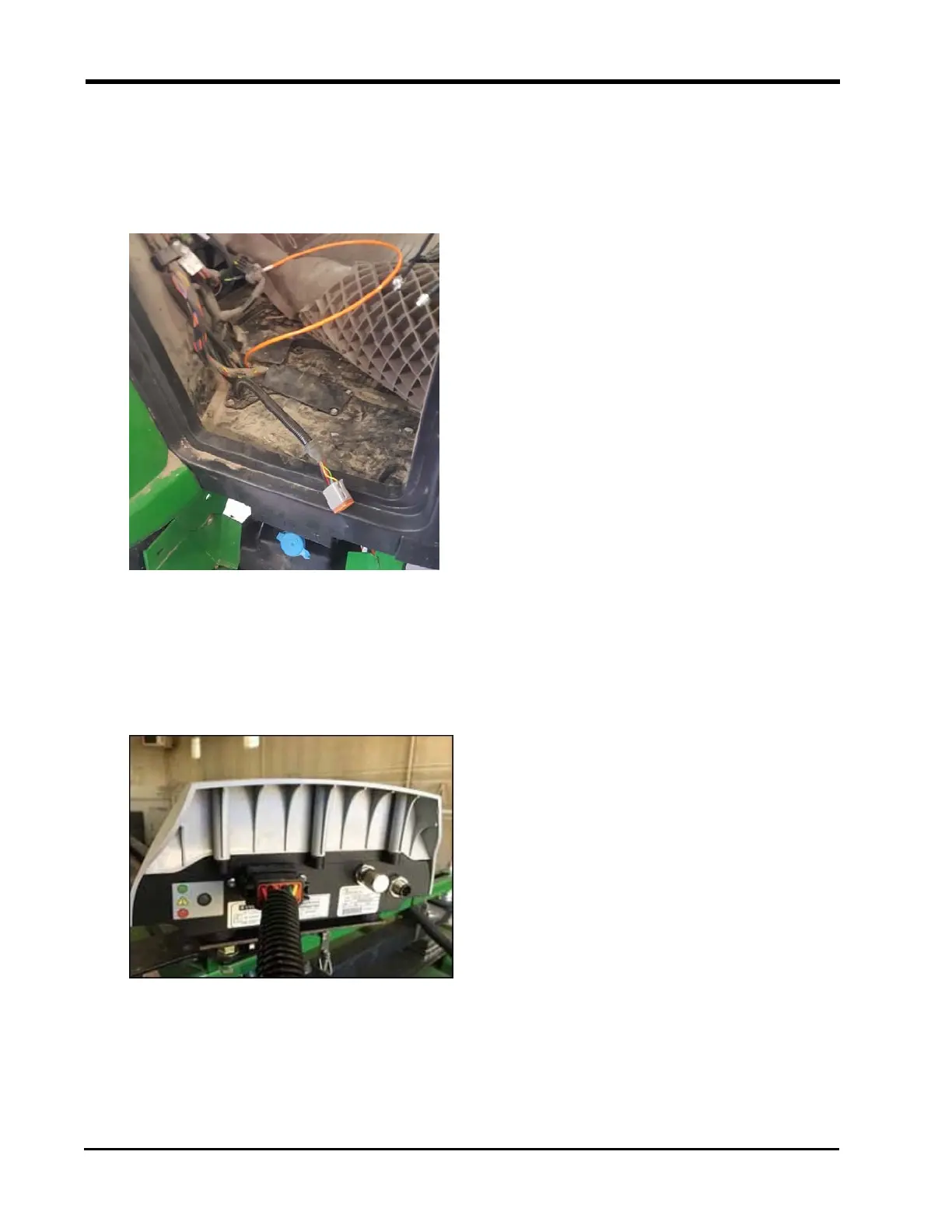

4. Route the 12-pin connector from the DirecSteer power cable (P/N 115-8000-473) and
DirecSteer power harness (P/N 115-8000-060/315 or 115-8000-141) into the cab of the
machine.
Note: A harness extension cable (P/N 115-8000-214) is available if needed.
5. In the cab, route the RS1™ T-cable (P/N 115-8000-330) from the side console to the
roof. The cable can be routed to the roof through the pillar (recommended) or outside
of the cab and attached to the pillar cab post.
6. Install the black 12-pin connector of the RS1™ T-cable (P/N 115-8000-330) to the port
on the back of the RS1™.
42
