016-4010-001 Rev. J 45
GPS CONFIGURATION
POSITION ACCURACY SETUP

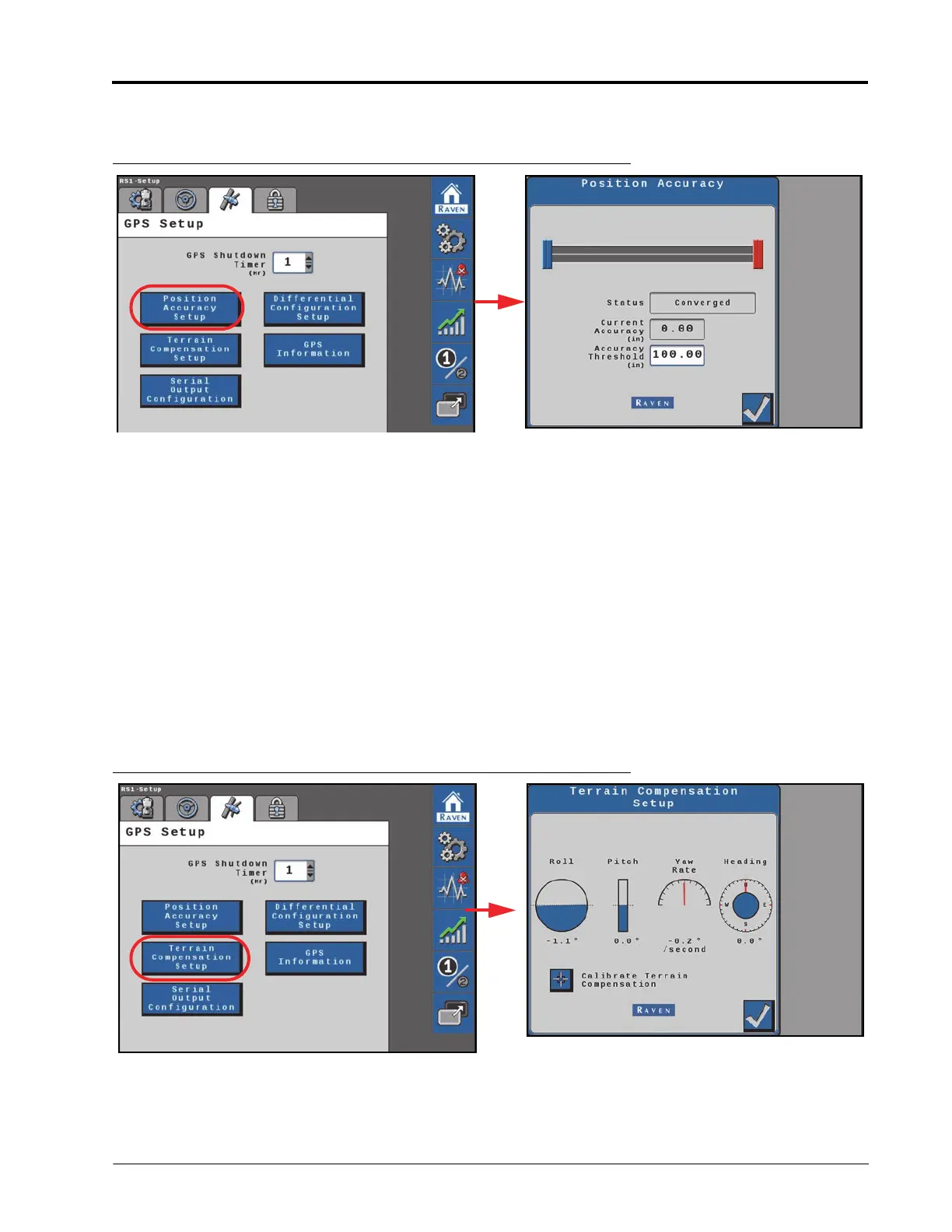

FIGURE 4. GPS Status Information Setup Page
Status. Displays the status of the GNSS solution. Statuses that may be displayed in this area include:
No Signal
•Error
•Converging
•Converged
Current Accuracy. Value displayed is the horizontal standard deviation reported by the GPS receiver.
Accuracy Threshold. This value dictates the distance from which the machine GPS position may deviate from the
Current Accuracy position. If the GPS solution falls outside the set Accuracy Threshold, a DTC entry will displayed
into the Diagnostic Trouble Code page. The Accuracy Threshold will be populated with a default value.
TERRAIN COMPENSATION SETUP
FIGURE 5. Terrain Compensation Setup Page
Roll, Pitch, Yaw Rate, and Heading. Real-time measurement data used by the 3D terrain compensation feature.
Calibrate Terrain Compensation. Begins the terrain compensation process.
