CHAPTER 11
90 Raven RS1™ and RS Lite™ Calibration and Operation Manual
WIFI SETTINGS

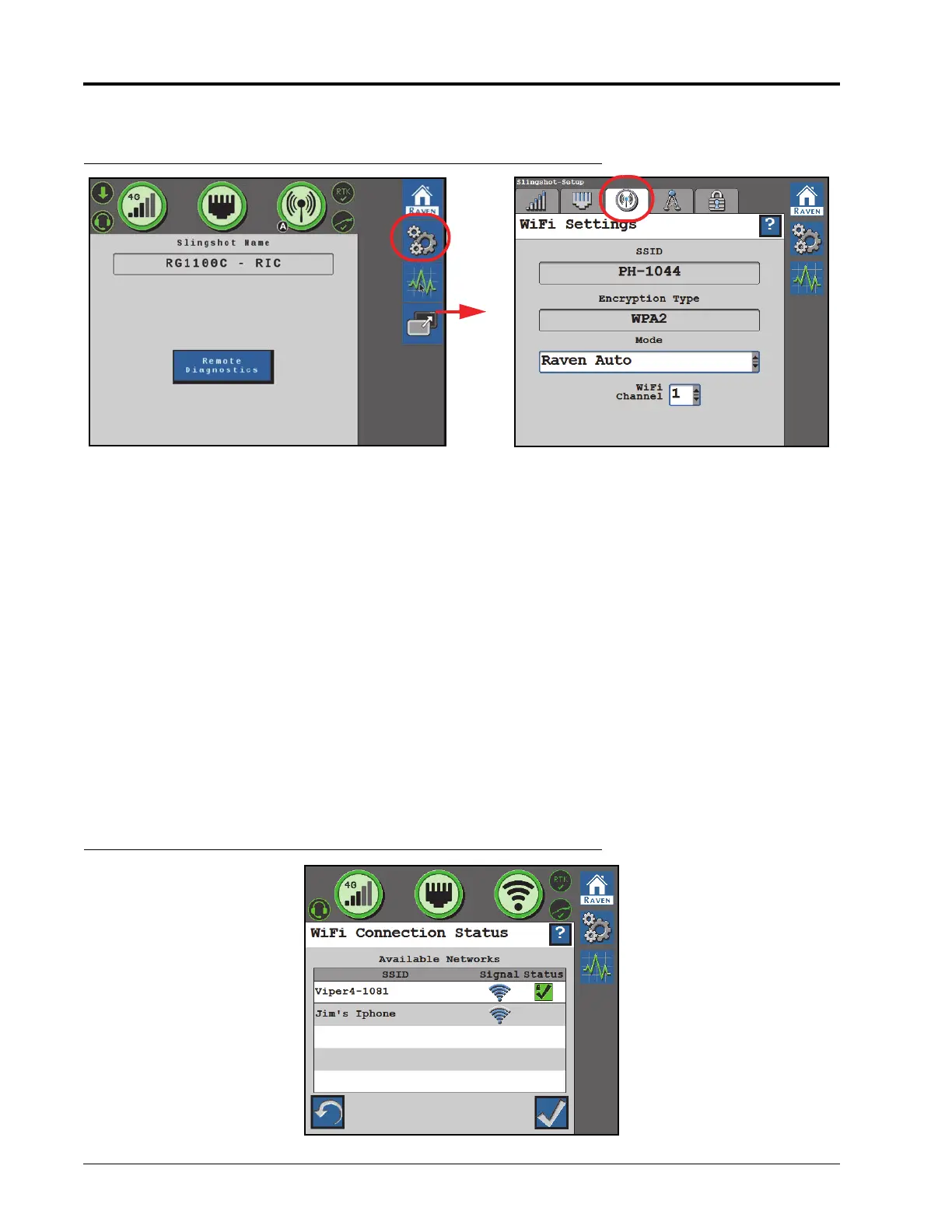

FIGURE 12. WiFi Hotspot Settings Page
SSID. Displays the WiFi SSID (network name). This setting cannot be modified by the operator.
Encryption Type. Displays the encryption mode being used on the RS1 WiFi hot spot. This setting cannot be
modified by the operator.
Mode. Select the mode for WiFi or Hotspot operation.
• Manual Client
•Manual Hotspot
•Raven Auto
WiFi Channel. Displays the channel the WiFi hot spot is currently using. If the operator is experiencing a issues
with connectivity or staying connected, adjusting these settings may improve connectivity issues. This setting can
be modified by the operator. The WiFi password can only be modified through the Slingshot website.
MANUAL CLIENT
Select Manual Client to manually connect to available WiFi networks.
FIGURE 13. WiFi Connection Status
