DIAGNOSTIC TROUBLE CODES (DTC)

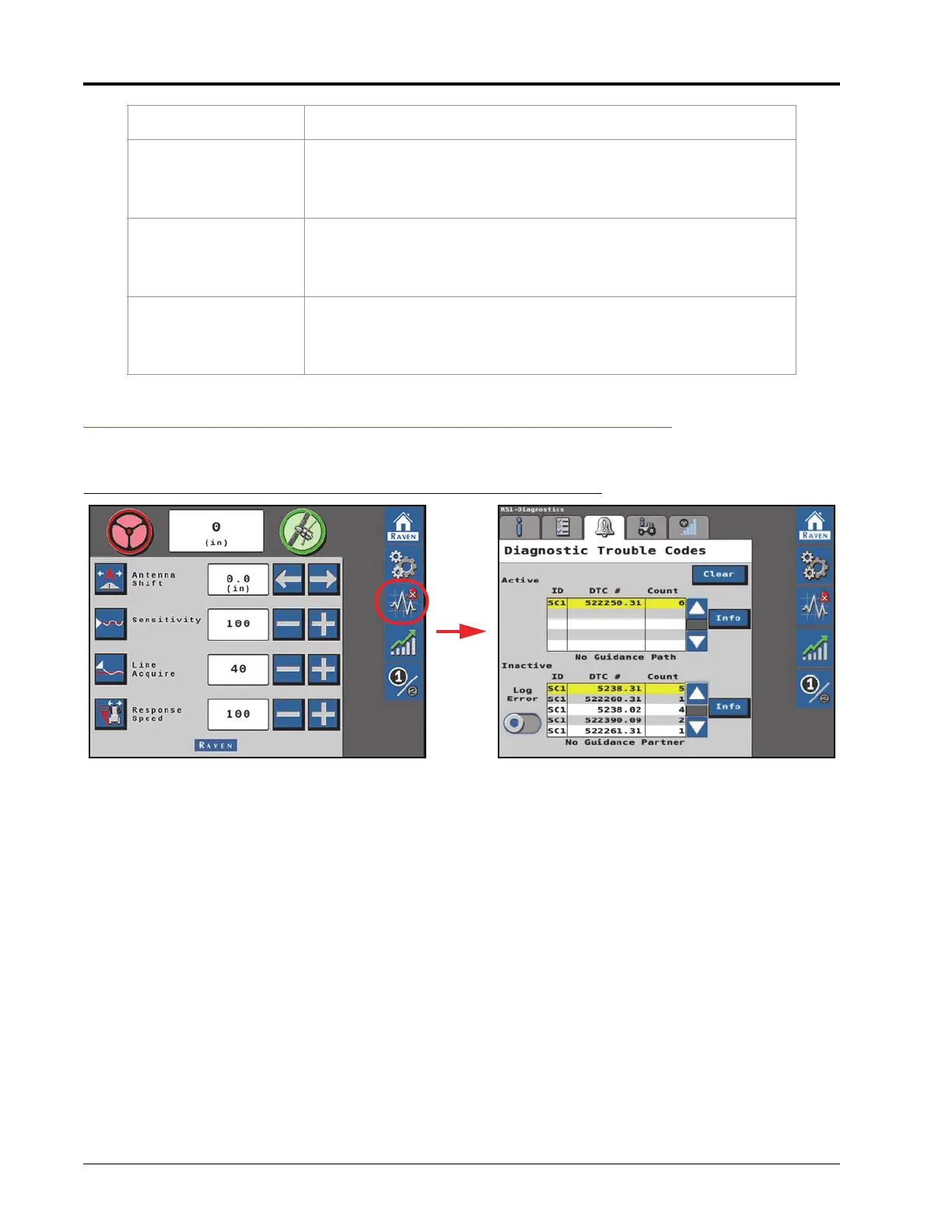

FIGURE 5. Diagnostic Trouble Codes Page
The Diagnostic Trouble Code page displays active and previous diagnostic trouble codes (DTCs) that occur during
RS1 system operation. Active DTCs must be fixed before the RS1 system can be enabled for guidance and steering
operation. Once a DTC has been corrected, the code moves to the inactive DTC code list. Refer to Figure 5 on
page 58 for an example of DTCs and DTC summaries.
Number of Satellites The number of satellites currently in view by the GPS receiver.
HDOP
Horizontal Dilution of Precision. If all of the satellites in view are from
the same direction, the number will be higher and the accuracy will be
reduced.
Age of Differential
Time (in seconds) since the last differential correction was received. If a
differential source is not currently tracked this entry will be “- - - -”.
