CHAPTER 6
38 Raven RS1™ and RS Lite™ Calibration and Operation Manual
WHEEL ANGLE SENSOR SETTINGS

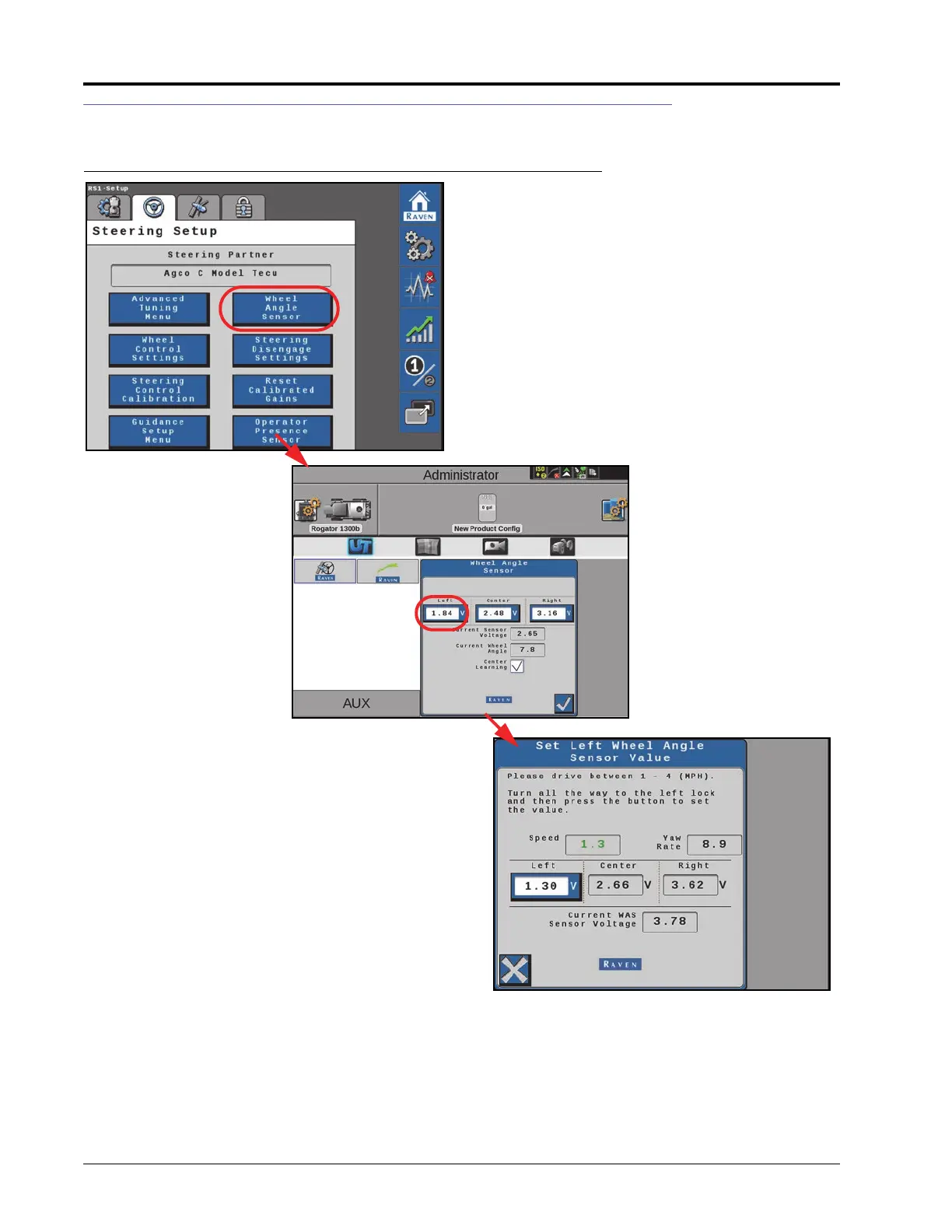

FIGURE 12. Wheel Angle Sensor Calibration Page
Left/Center/Right. Displays the current calibration values. These values can be modified by selecting the desired
WAS value to be changed, moving the wheels to the correct position, and pressing the Accept button.
Current Sensor Voltage. Displays the sensor voltage detected during calibration.
Current Wheel Angle. Displays the WAS angle detected during calibration.
