7
5. MOUNTING THE CONSOLE AND CABLING
1) Mount the Console to a secure support inside the cab of the vehicle.
2) Connect the Console Control Cable to the plug in the back of the Console. (Reference Figure 5).
Route the Console Control Cable through the vehicle cab and terminate to the appropriate
connectors. Connect orange wire from Console Control Cable to orange wire of 7 boom switch-
box.
3) Turn POWER ON/OFF switch OFF and route the Red and White battery wires to a 12-volt battery.
Attach the White battery wires to the NEGATIVE (-) terminal and the Red battery wire directly to
the POSITIVE (+) battery terminal. (See Figure 6 on page 8). (DO NOT CONNECT RED AND
WHITE WIRES TO THE STARTER). Secure the battery wires with plastic cable ties. DO NOT
tie the battery wires close to the existing battery leads or any other electrical wiring.
4) Connect the Speed Sensor to the plug in the back of the Console.
5) Secure and tie the Speed Sensor Cable and the Console Control Cable with plastic cable ties.
6) Initial installation of the system is now complete.

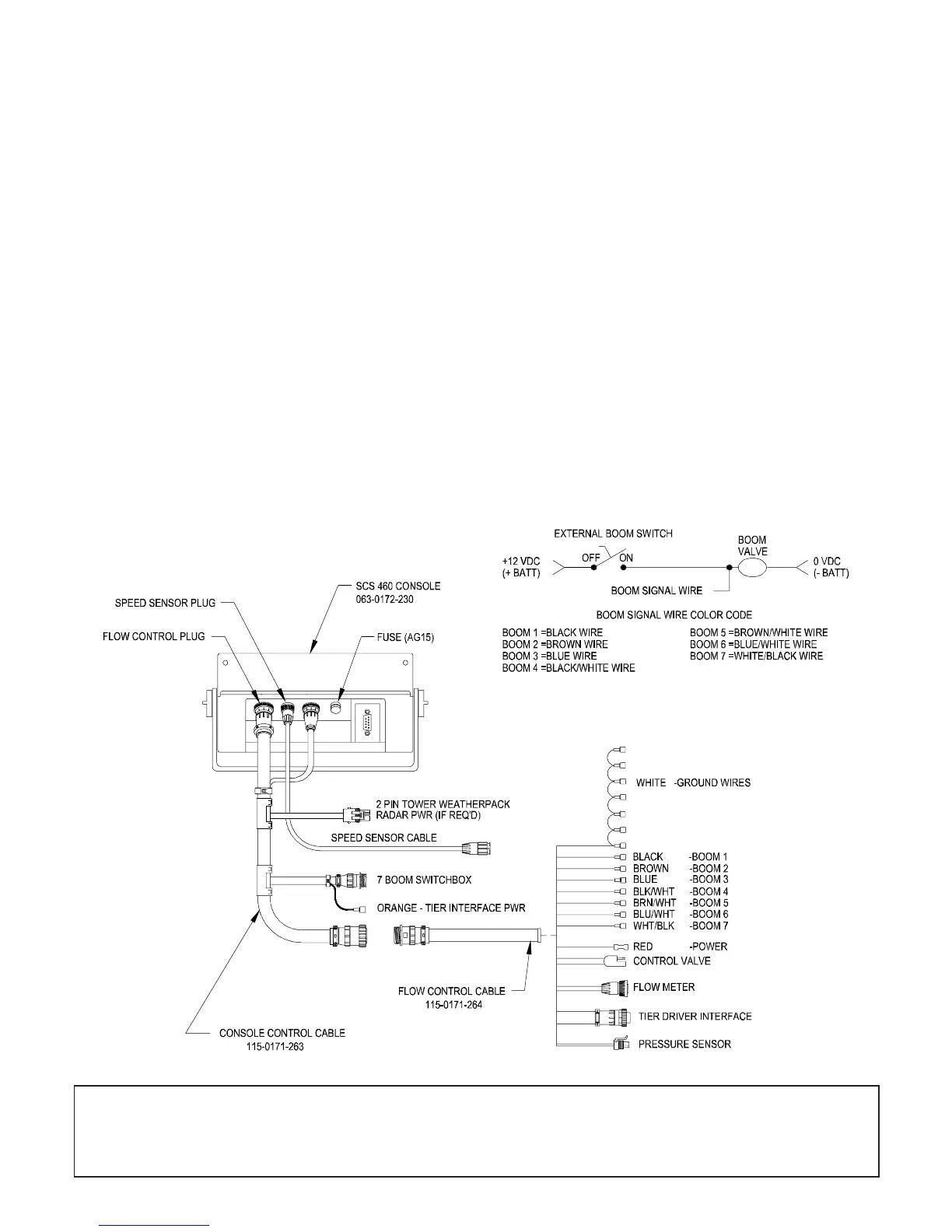

FIGURE 5
NOTE: The SCS 460 Control Console is designed to be used with external boom switches. In order
for the Console to know when and which Boom is ON or OFF, boom signal wires are
provided. The Console recognizes a boom ON whenever +12 VDC is applied to the boom
signal wire. Connect the boom signal wire to the switched side of the boom valve.
