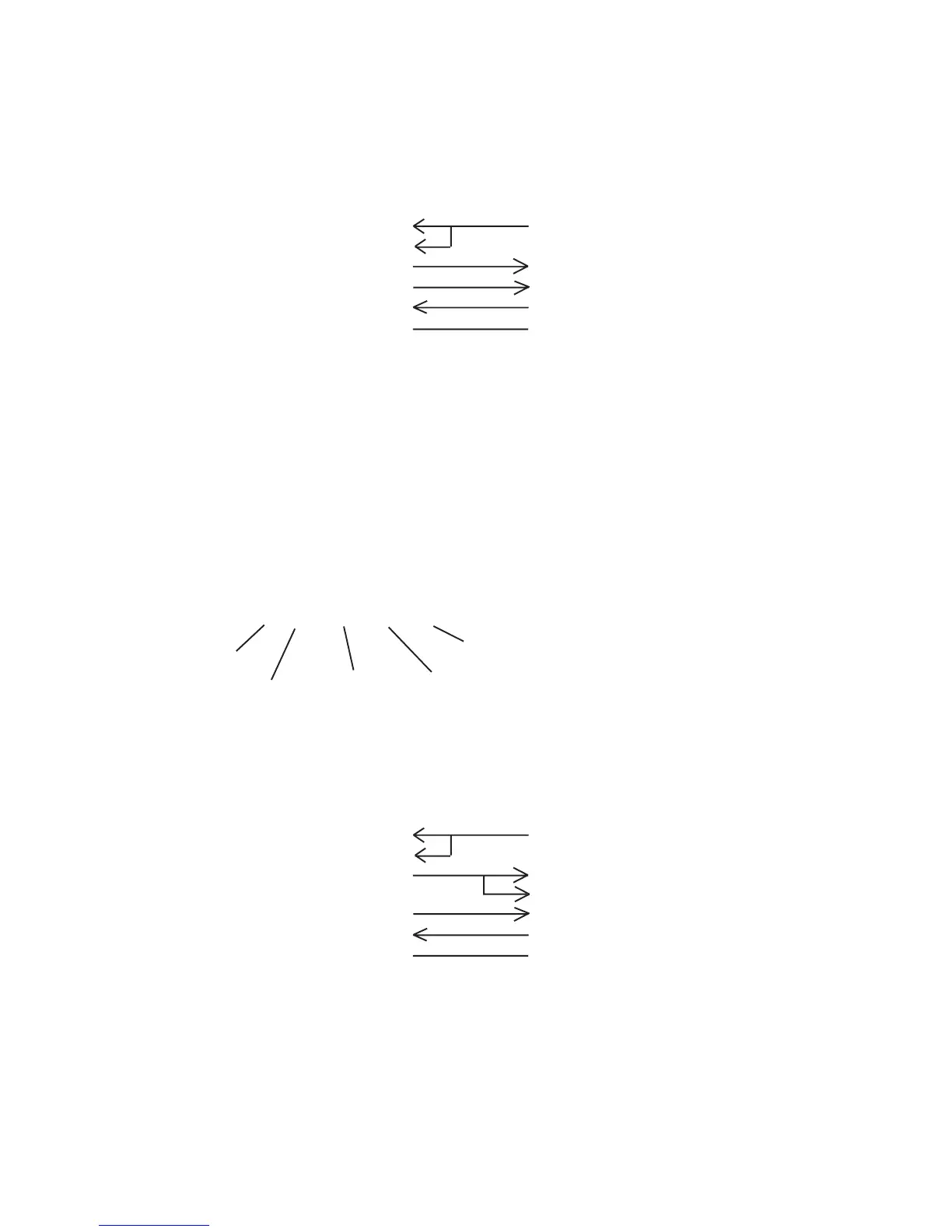

3) Optional 9 pin to 9 pin cable pinout (P/N 115-0159-822).
DSR 6 4
CTS 8
DTR 4 6
8
TXD 3 2
RXD 2 3
GND 5 5
APPENDIX 8
SERIAL INTERFACE
1) Cable pinout (P/N 115-0159-624), supplied with Thermal Printer Kit (P/N 117-0159-529).
DSR 6 5
CTS 8
DTR 4 6
TXD 3 2
RXD 2 3
GND 5 7
2) Changing RATE 1 CAL by remote computer.
a) Configuration of RS-232C serial port:
1200 or 9600 Baud Rate
NO Parity
8 Data Bits
2 Stop Bits
b) Data stream to Raven Console.
EXAMPLE: Change RATE 1 to 123.4
$R,RC,1234<CR><LF>
Decimal point is not sent from Remote Computer to Raven Console.
Printer
25 Pin
Communication
string
Rate Cal
Line Feed
Carriage Return
RATE 1
= 123.4
RAVEN
CONSOLE
9 PIN
COMPUTER/
GPS
9 Pin
RAVEN
CONSOLE
9 PIN
