17
Hydraulic Steering Setup Before and After Installation

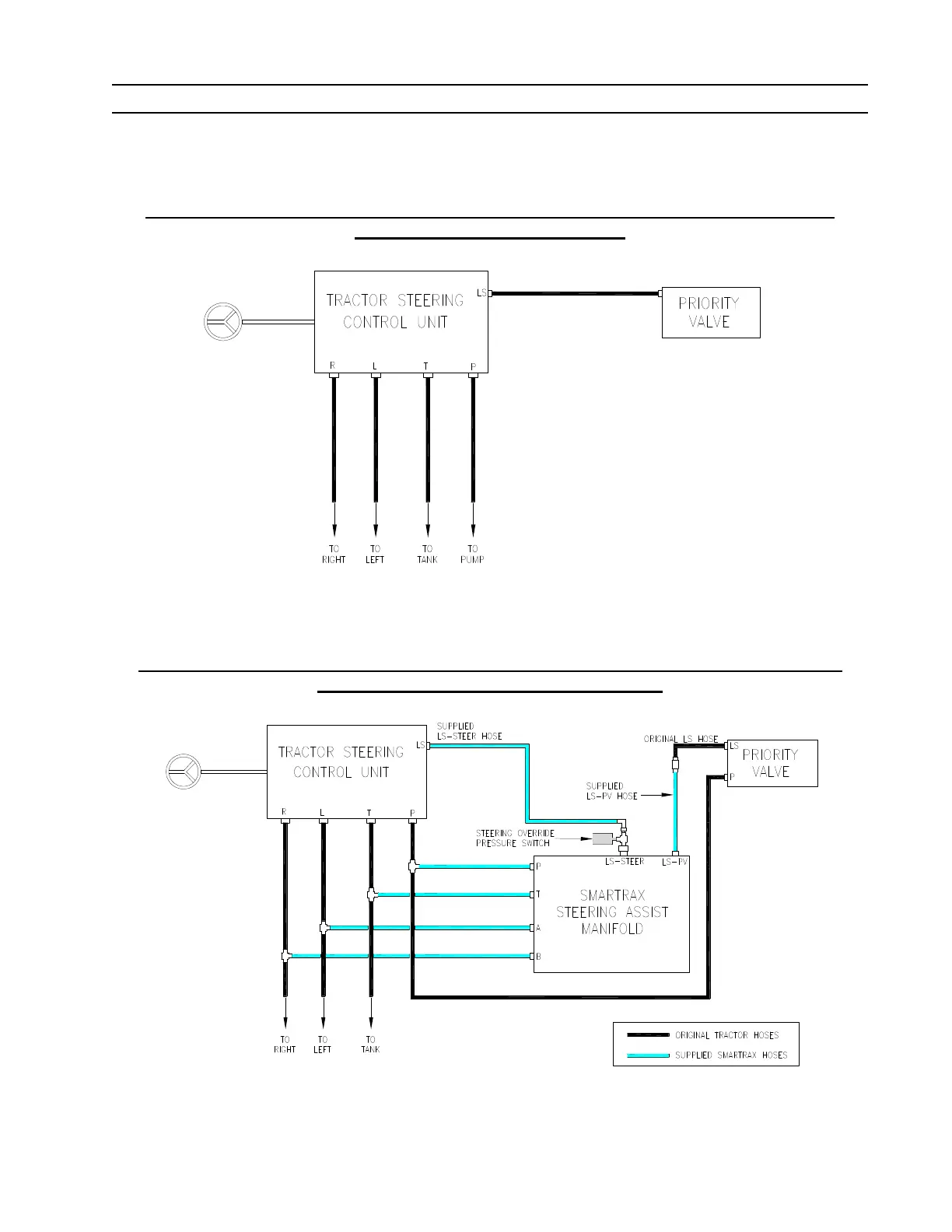

The following block diagrams shows how to setup the hydraulic steering setup before and after
installation, including all hydraulic hose connections leading to each of their specified ports.
The Block Diagram below shows the Steering system setup before Installation of the
SMARTRAX Steering has started.
Steering Block Diagram Before Installation
The Block Diagram below shows the Steering system setup after the Installation of the
SMARTRAX Steering has been completed.
Steering Block Diagram After Installation
