Solenoid Cable Connection & Routing
This series of hydraulics uses the Type 1 Solenoid Cable.
The Solenoid Cable Connection & Routing section will be updated periodically to reflect changes and
add any additional tractor types to each of the corresponding types of solenoid cable connections
above. Updates will be supplied as soon as they are available.
Solenoid cable connection – type 1
STEPS
1) The Solenoid cable connection - type 1
comprises of 2 terminal points consisting of:
1 Solenoid Valve connection (labelled as
Solenoid) and;
1 Steering Override Pressure Switch
connection (labelled as Override).
2) Start by connecting the Solenoid cable to the
Smartrax Controller (as shown on the follow-
ing page).
3) Route the Solenoid cable towards the Steering
Assist Valve Bank, where the Solenoid Valve
and Steering Override Pressure Switch are
located.
4) Connect the Solenoid Valve and Steering
Override Pressure Switch to the wiring
harness.
NOTE: Refer to Figure on the following
page for information on cable connection.
KEY POINTS
NOTE: Ensure Solenoid cable is mounted
neatly. Secure it (where possible) to exist-
ing points on the tractor using cable ties.
Ensure it is not routed near heated areas
such as the exhaust. Do not route it in close
proximity to moving parts.

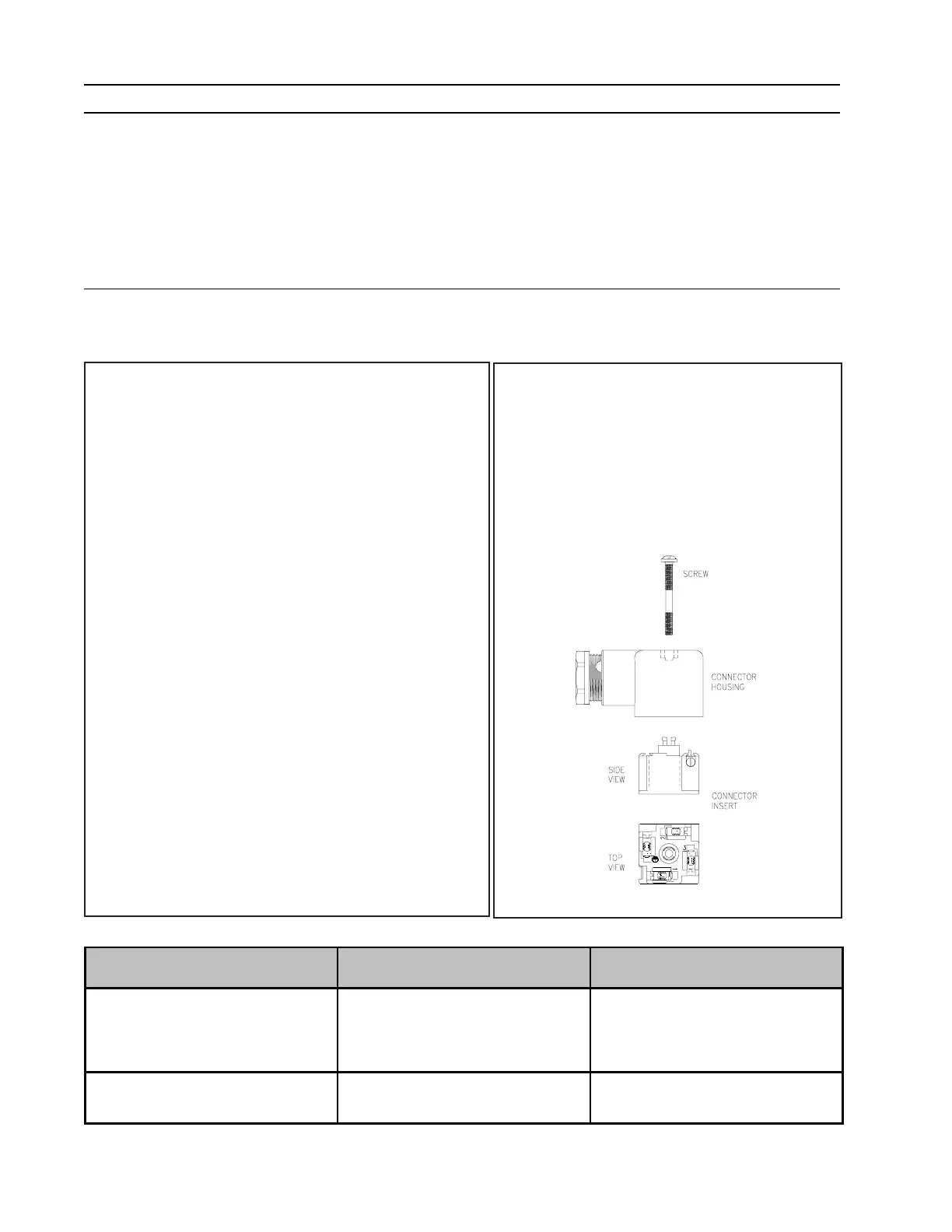

Connection Hirschmann Plug # Color
1Black
2 Green
1White
2Blue
Override
Solenoid
Red3
To Next Page
