INSTALLING THE ROTARY STEERING POSITION SENSOR (SPS)
NOTE: If using a Linear SPS, refer to the installation sheet found in the SPS shipping box.
 The Steering Position Sensor (SPS) will mount to the steering cylinder of the tractor.
 Be sure that the bushing on the bracket is facing up, and that the bracket is parallel with the
ground.

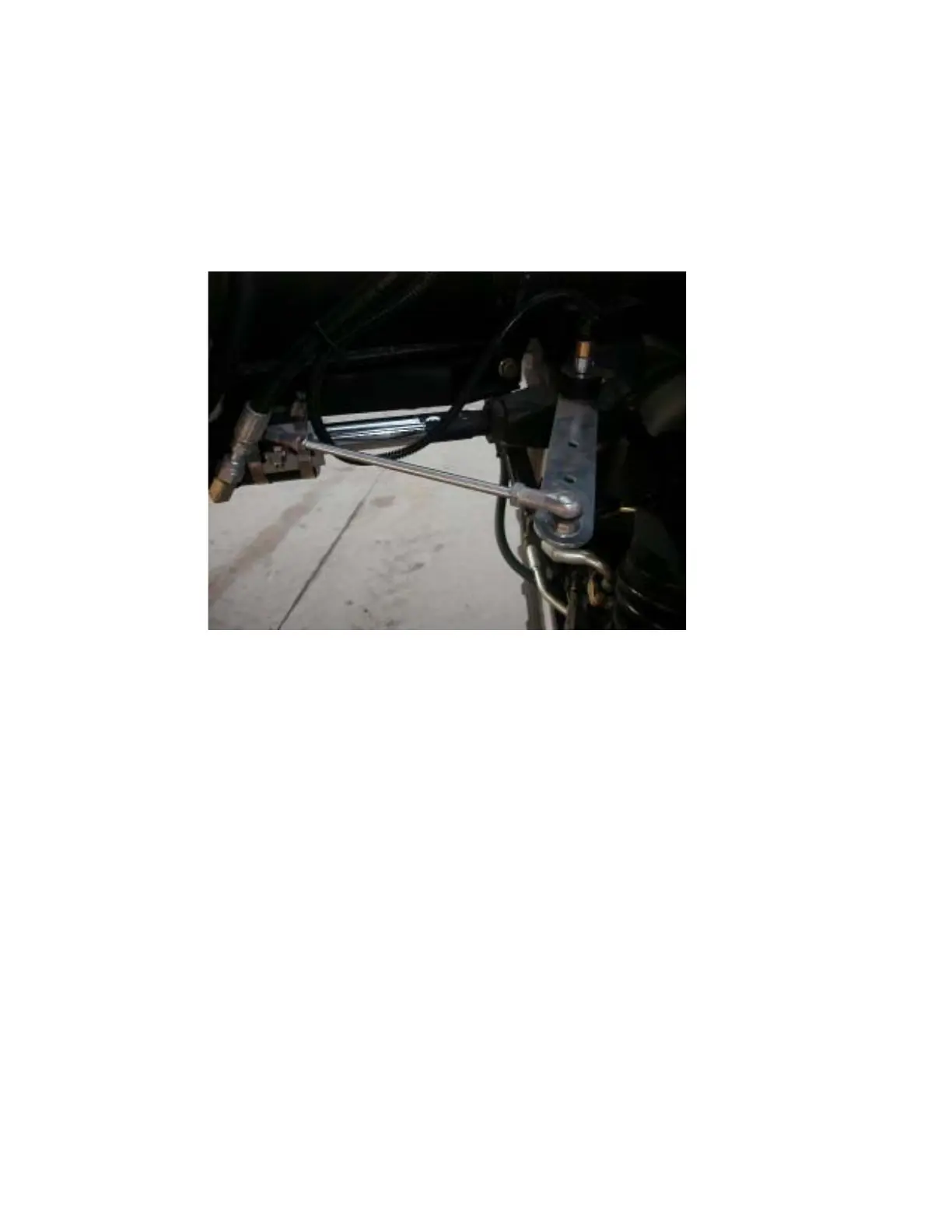

Steering position sensor bracket
