27

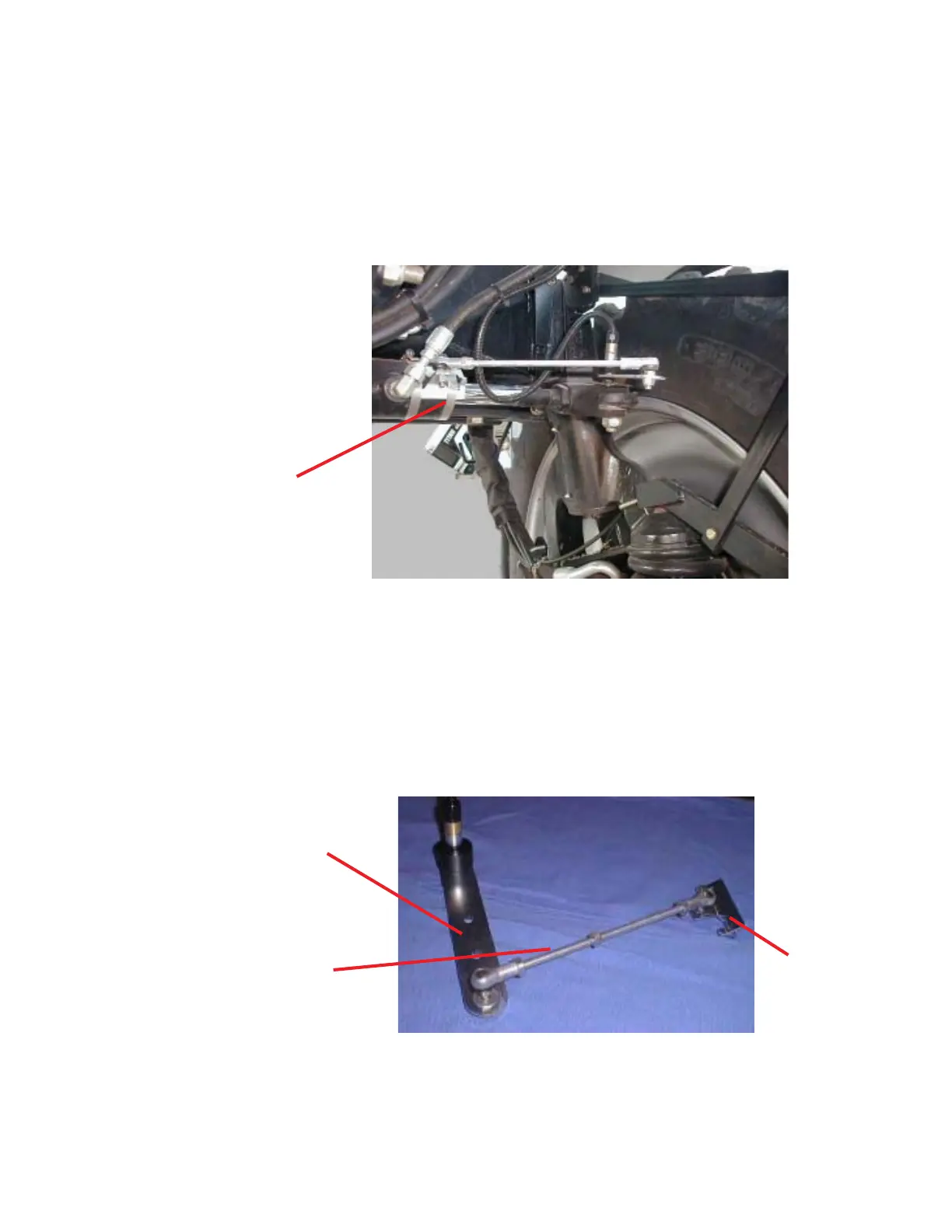

Mount the cylinder brackets for the wheel angle sensor onto the steering cylinder housing
using the two supplied hose clamps.
The mounting holes on the cylinder brackets should be aligned when tightening down the two
pieces of the cylinder brackets, and also should be parallel with the ground. The tabs on the
cylinder brackets closest to the hydraulic port may need to be trimmed to allow for the bracket
to fit onto the cylinder housing.
Once both of the SPS brackets have been installed, the Steering position sensor linkage can
be installed.
The ball joints should be connected to the cylinder brackets and to one of the holes on the
sensor-housing arm.
Steering position
sensor mounting
brackets.
Sensor Housing Arm
Linkage should be set
at approximately 6”
Cylinder
Brackets
Cylinder Brackets
Steering position sensor linkage
