SETTING THE OVERRIDE PRESSURE SWITCH
The Override Pressure Switch must be set in order for the Auto-Steer system to disengage
when the operator moves the steering wheel.
The pressure switch can not be set until the Smartrax Controller is wired and all wiring to the
hydraulic system is complete.
To set the pressure switch, go to the Solenoid Configuration Menu on the Smartrax Controller.
Once at this menu, arrow down to the “<Les R>” screen.
With the tractor running and no movement of the steering wheel, the “s” should display as

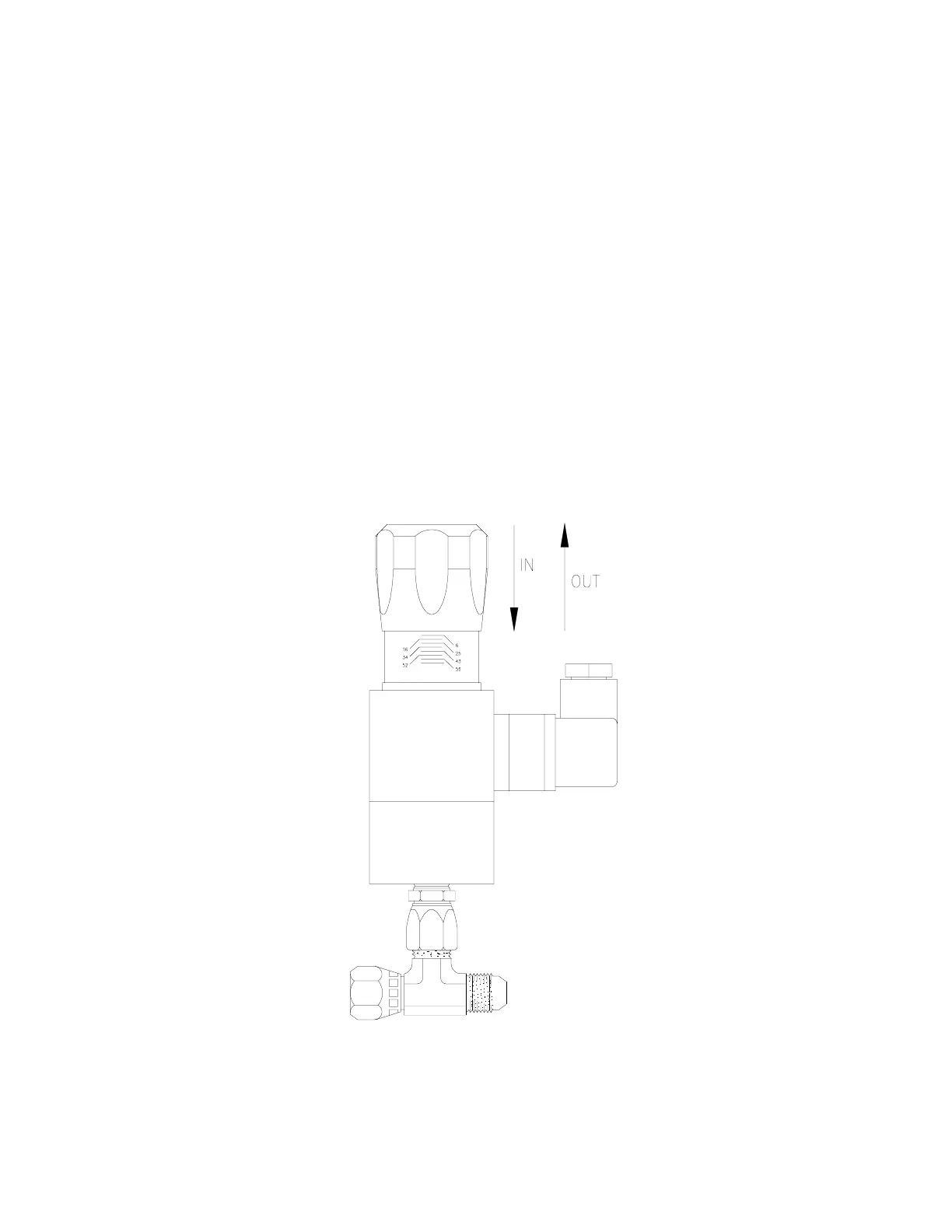

lower case. If the “S” is capital, the pressure switch knob must be turned in until a lower case
“s” is displayed.
Once the display reads lower case “s” while the vehicle is running and stationary, begin to turn
the steering wheel. When the wheel is turned, the “s” should turn into a capital “S” indicating
that the system is deactivated. If this does not happen, the pressure switch knob must be
turned out to the point where, when the wheel is turned, the “s” is displayed as a capital letter.
