CHAPTER 8

82 Viper/Viper 4+ Installation & Operation Manual

SECTION GROUP OPTIONS

Edit Section Settings. Touch the Edit button to access or edit additional section group or

individual section settings. Refer to the Section Settings section on page 73 for more

information on modifying section settings within section groups.

Delete Section Groups. Touch the Delete button to remove a section group from the machine

or implement.

Create a New Section Group. Touch the Add button in the next available group to add a new

section group. Use the on-screen keyboard to enter a group name or description for the new

group and refer to the Section Settings section on page 73 for assistance with section settings

within section groups.

NOTE: The Edit and Delete buttons will only be displayed for configured section groups. If no section groups

are configured, the Add button will be displayed in the first group.

SECTION GROUP SETTINGS DEFINITIONS

Review the following sections for additional assistance with entering section group information and setting up

section configurations within a section group.

EQUIPMENT SETUP - GENERAL INFORMATION TAB

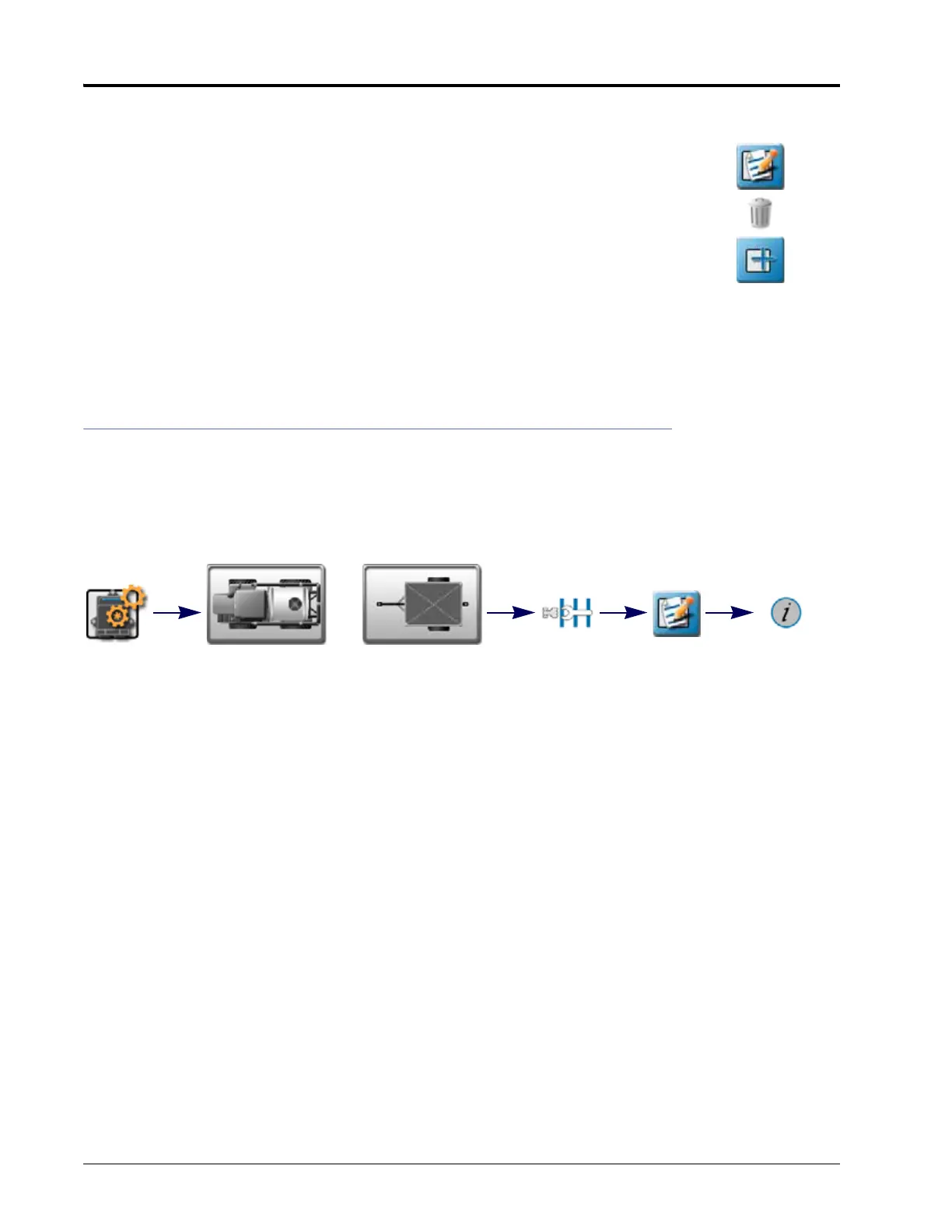

1. Touch the Edit icon in the Machine Panel to view the machine devices.

2. Touch the profile buttons for the machine or implements currently assigned to the machine configuration to

view the general information tab for the selected machine or implement.

NOTE: Use the page navigation at the bottom of the prompt, or swipe across the screen, to access other

information for profiles assigned to the selected machine configuration.

3. Select the Equipment tab to view the currently configured section group information. Refer to the View Section

Groups section on page 72 for information on the section group display or the Section Settings section on

page 73 for assistance with creating a new section group.

4. Select the Edit button in the desired section group to edit section group information.

Add

Edit

Delete

Edit

Self-Propelled

Machine Profile

Pull-Type

Implement Profile

Equipment Tab Edit General

Information
