Rayco RG1645S - Swing Cylinder Assembly; Lift Cylinder Assembly

Parts Section
10
Rayco RG1645S Copyright © 2012 Rayco Mfg - All Rights Reserved
Printed in U.S.A.
3
1
2
1
4
4
2

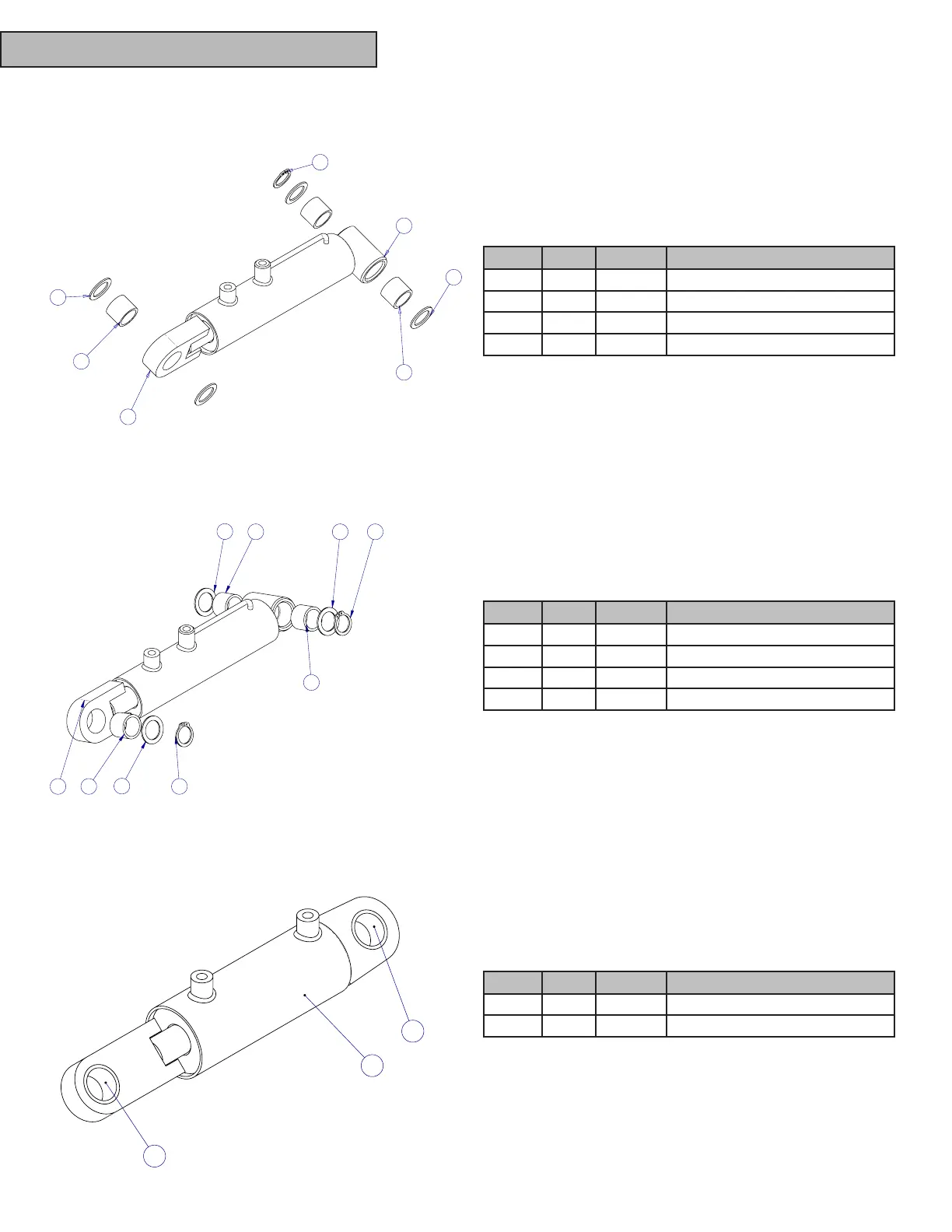

ITEM QTY. PART # DESCRIPTION
1 1 20392 CYLINDER WELD-SWING SJRD
2 3 760872 BEARING-GARMAX 1.25X1.00
3 1 750325 RING-RETAIN EXT HVY 1”
4 4 726907 WASHER FLAT 1-14GA
SWING CYL ASSEMBLY LH (20396)
SWING CYL ASSEMBLY RH (20397)
4
2
31
342
2
4
ITEM QTY. PART # DESCRIPTION
1 1 20395 CYLINDER WELD-SWING SJRD
2 3 760872 BEARING-GARMAX 1.25X1.00
3 2 750325 RING-RETAIN EXT HVY 1”
4 3 726907 WASHER FLAT 1-14GA
LIFT CYL ASSEMBLY(18771)
2
2
1
ITEM QTY. PART # DESCRIPTION
1 1 18772 CYLINDER-WELD 2-1/2 X 4
2 2 763587 BUSHING-1.50 X 1.25 X 1
